Description

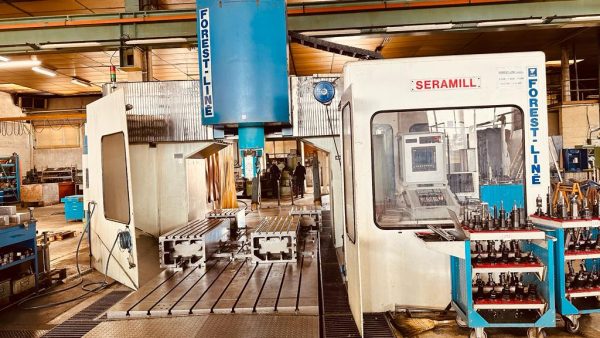

Forest Line Seramill 240T CNC 5-Axis Gantry Double Column Bridge Type Milling Machine – Year 2000

Manufacturer Forest Line
Model Seramill 240T CNC
Year 2000
Renovation of guides and head 2014

Technical data:

– Year of production – 2000

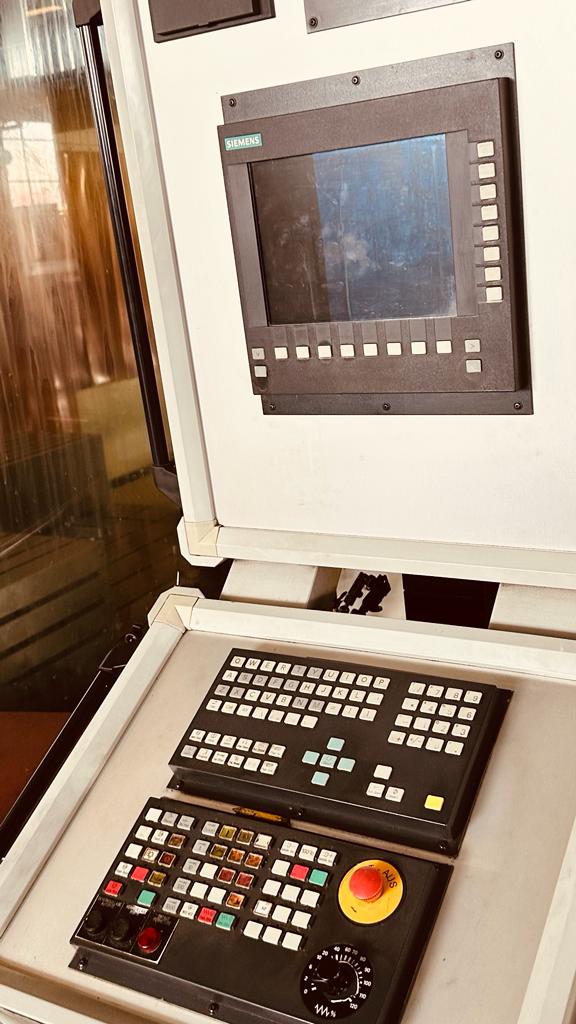

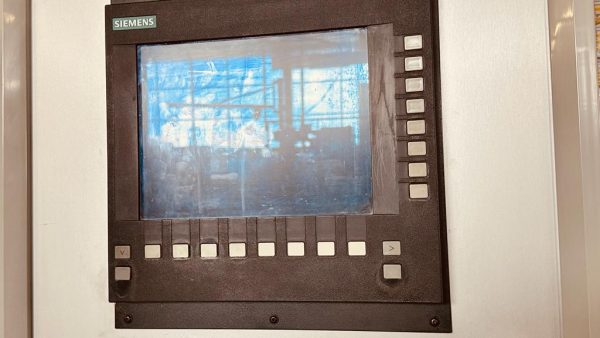

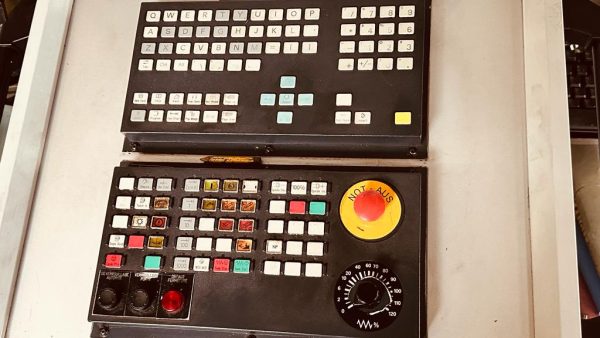

– Control – Siemens 840D

– Travels:

X – 5500 mm

Y – 2900 mm

Z – 1000 mm

A – +/-135 degrees

C – +/- 180 degrees

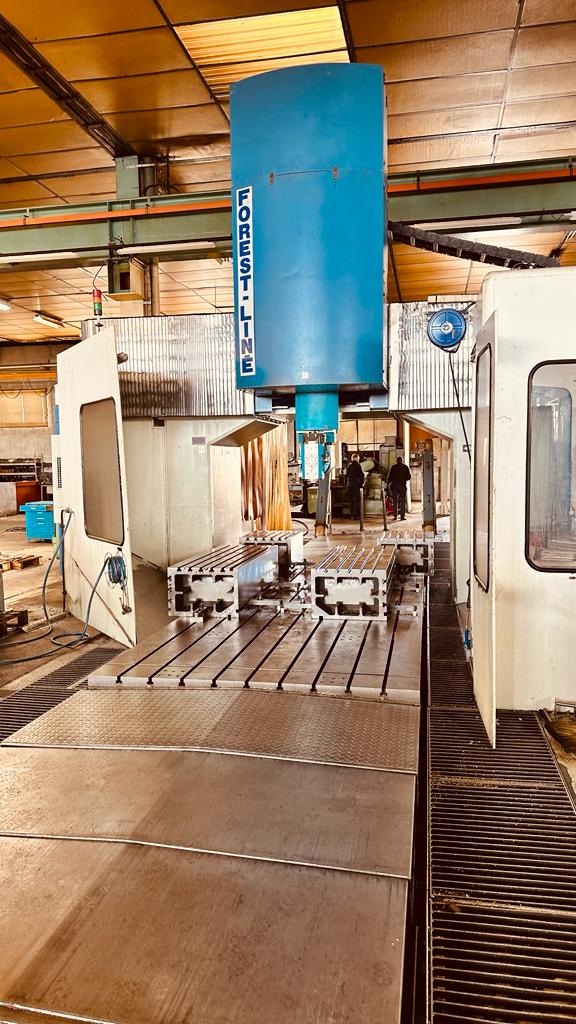

Table – 5000×2000 mm

Distance between columns – 2600 mm

Clearance under the spindle – 1400 mm

Spindle. 100 mm ISO 50

Spindle speed max. 10 – 6000 rpm

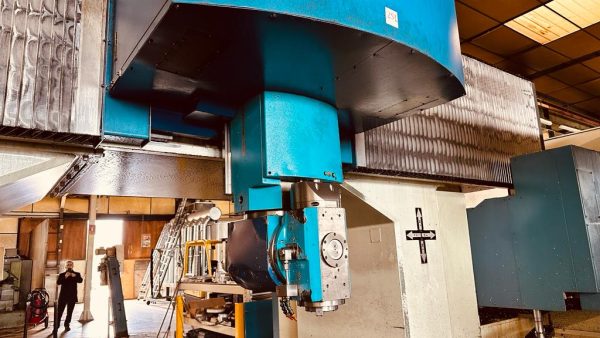

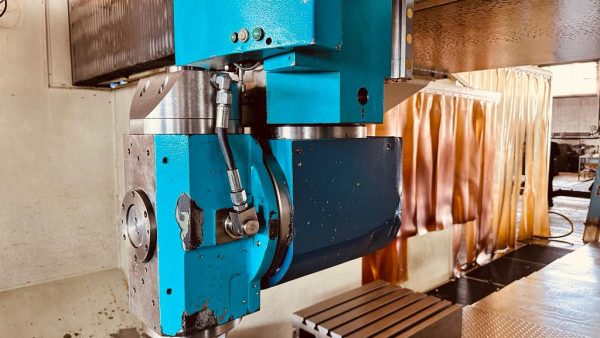

Swivel head in two axes from the CNC program A/C +/- 180 degrees

Spindle speed 10 – 6000 /min

ISO 50

Main engine power 29kW

Machine dimensions: 11,000 x 9,000 x 4,800 mm

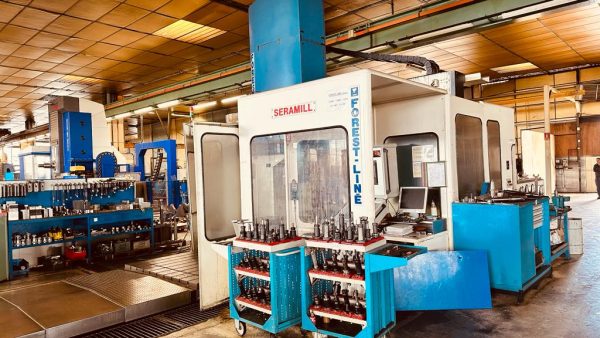

The machine is equipped with 2 chip receivers and an automatic tool change magazine

Milling machines are machine tools in which the main rotary motion is performed by a tool (milling cutter) mounted in the spindle, while the feed motion is most often performed by a workpiece mounted on a sliding table. Milling machines are designed for machining surfaces and contoured surfaces using cylindrical milling cutters, end mills, milling heads, and various types of shaped milling cutters.
