Description

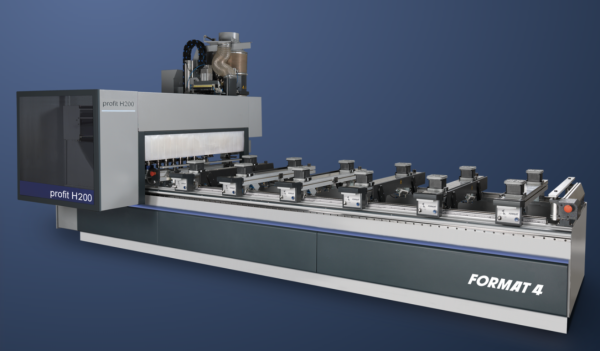

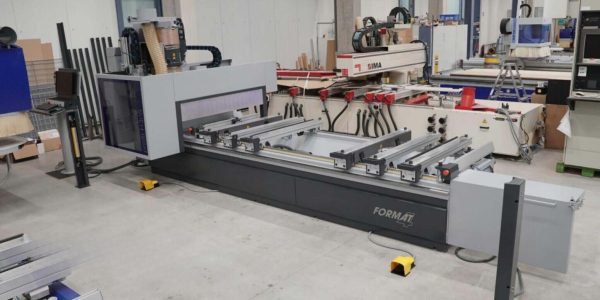

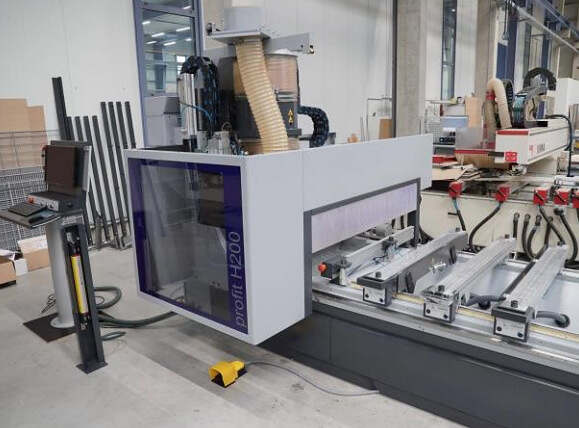

FELDER FORMAT 4 Profit H200R 13.33 CNC Woodworking Machining Center – Year 2015
CNC machine from the Austrian quality manufacturer Felder in very good condition.

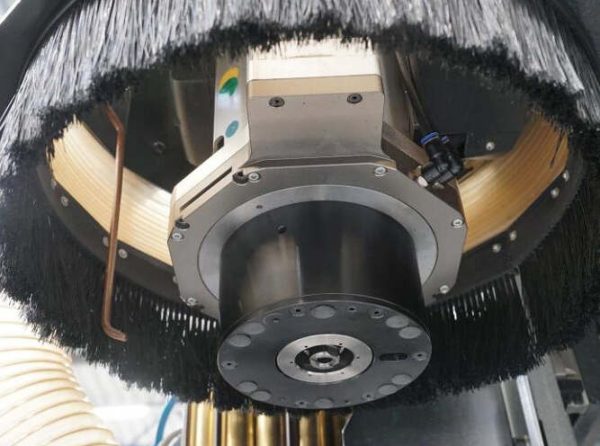

The machine is equipped with a powerful milling motor of 12 kW,

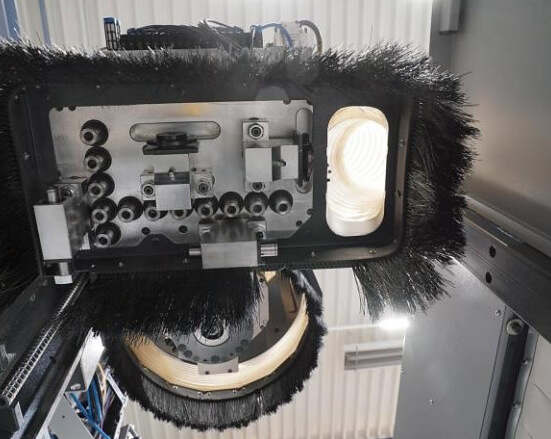

C-axis for 4-axis processing, 12 tool positions, drill box for 16 drills,

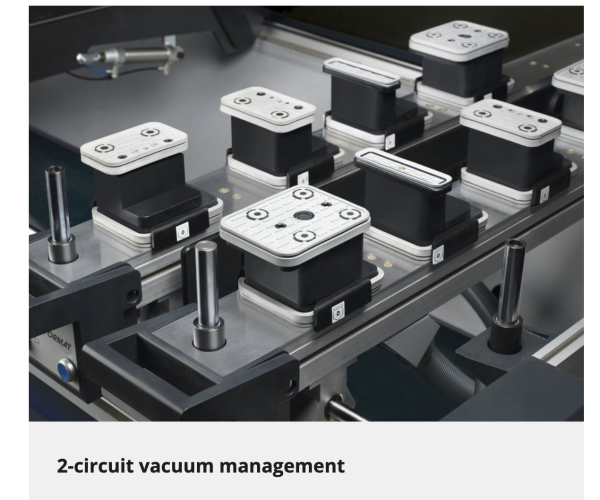

groove blade in X and Y, 6 beams with a powerful vacuum pump of 90 m3/h.
Machine description
CNC machine from the Austrian quality manufacturer Felder in very good condition. The machine is equipped with a powerful milling motor of 12 kW, C-axis for 4-axis processing, 12 tool positions, drill box for 16 drills, groove blade in X and Y, 6 beams with a powerful vacuum pump of 90 m3/h.
Technical data
| Model | CNC Felder Format 4 Profit H200 13.33 |
|---|---|
| Year model | 2015 |
| Working dimension X x Y | 3300×1250 |
| Passage height Z | 250 mm |
| Engine | 12 kW |
| RPM | 24000 |
| Shoulders | 4-axis (C-axis) |
| Tool holder | HSK63 |
| Tool locations | 12 pcs |
| Vertical drill spindles | 12 pcs |
| Horizontal drill spindles in X | 2 pcs |
| Horizontal drill spindles in Y | 2 pcs |
| Notch blade | IX and Y |
| Beams 6 pcs | 6 pcs |
| Positioning aid | Laser |
| Vacuum pump | 90 m3/h |
| Dxf files | Yes |
| Security system | Laser |
| Automatic lubrication | Yes |
| Stop lines | 2 pcs |
| Software | Format 4 Wood Flash |
| Fuse | 19 kW |
Manufacturer Catalogue Information about FELDER FORMAT 4 Profit H200R 13.33 CNC Woodworking Machining Center :
High-end CNC technology at a low investment level
It is universal workshops in particular where affordable CNC technology is becoming increasingly important. Regardless of whether a series of regular standard products or individually designed one-offs are to be made, the universal Format4 profit H200R machining centre produces finished workpieces with maximum efficiency and are a real profit earner even from day one. In the new, completely reengineered design, the CNC machining centres from Format4 display dynamics, power and high end technology from the first glance. The new machine chassis with solid steel ribbing guarantees maximum stability at maximum output. With a wide selection of various tool changers and Format4 software that fits perfectly to the machine, the new FORMAT4 CNC machining centre is a reliable complete package for the production of doors, windows, staircases and solid wood furniture.
FORMAT4. Uncompromising expertise for the highest of requirements
The Felder Group premium brand has met the highest standards of professional users since 2001. The customised high-performance solutions are uncompromisingly innovative, offer maximum operating comfort and complete productivity.
FORMAT4 Premium machines for premium requirements
Tailor made financing solutions
Constantly high performance in industrial continuous operation
Customer specific optimised production solutions
Solid design with premium components
Many variations of specification packages with high-tech solutions
Complete engineering precision
Premium user comfort
Award winning design
Quality and precision from Austria
Uncompromised productivity
Perfect service package before, during and after the purchase
Automation solutions
Networked workshop
Software and machines from a single supplier
