Description

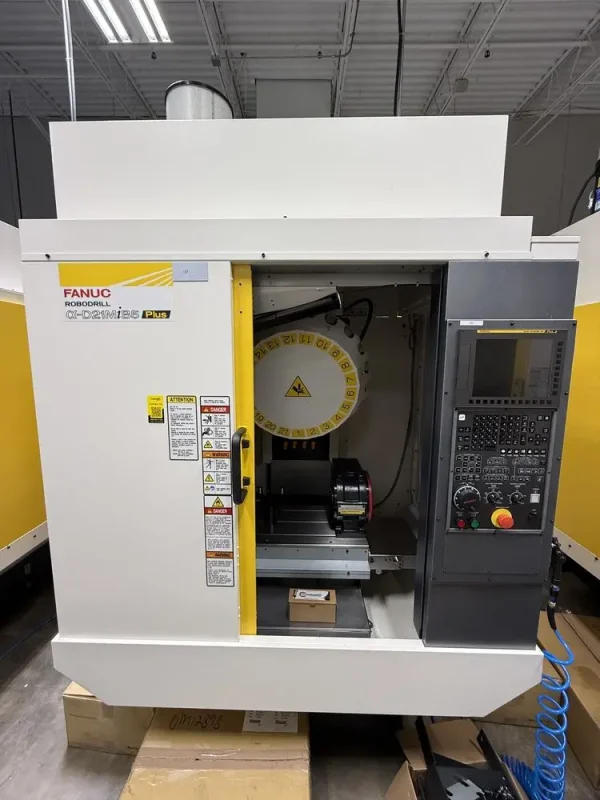

Fanuc ROBODRILL 𝛼-D21M𝑖B5 Plus CNC Tapping Drilling Center – Year 2024
| Year | 2024 |
|---|---|
| Make | Fanuc |
| Model | Robodrill a-D21MiB5 |
| Fanuc ROBODRILL 𝛼-D21M𝑖B5 Plus | CNC Tapping Drilling Center |
| X-Axis Travel | 19.68″ |
|---|---|
| Y-Axis Travel | 15.74” |
| Z-Axis Travel | 12.9″ |
| Spindle Speed | 10,000 RPM |
| Spindle Taper | BT-30 |
| Tool Magazine Capacity | 21 ATC |
| Control | AIContour |
| Additional Axis | 4th Axis Ready |
| Feed Rates (X/Y/Z-Axis) | 1181 IPM |
| Rapid Rate (X/Y/Z-Axis) | 2125 IPM |
Features
| 1 Millisecond Servo Response Time | 1.5 G Acceleration |
| 1k Registrable Programs | 3-Axis Simultaneous Expandable to 5-Axis Simultaneous |
| 4MB Part Program Storage | Coolant Included |
| Custom PMC | DDR-260iB Included |
| Helicaland Linear Interpolation | High Speed Reverse Tapping |
| Multi Step Skip | Nano CNC System |
| Quick Tap Recovery System | Rigid Tapping up to 5k RPM |
| Sidepanels without Windows | Simultaneous ATC / Table Positioning |
| Thermal Growth Compensation | Thread Milling |
| Ultra Precise 32mil Pulses/Rev Encoders |
