Description

CNC LATHE BIGLIA B1000

YEAR OF CONSTRUCTION 1997

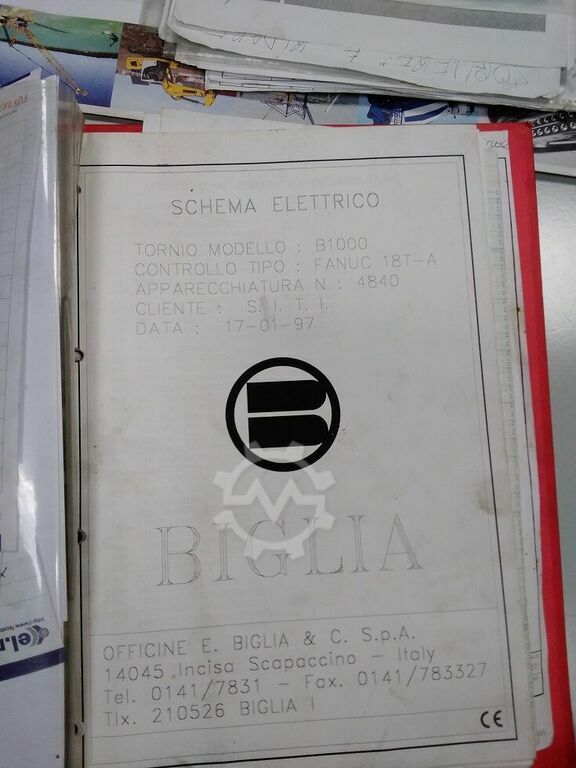

COMPLETE WITH ACCESSORIES AND USER MANUALS

YEAR 1997
POINTS DISTANCE mm. 1.000
ROTATING DIAMETER MAX mm. 560
MAX TORNIBLE DIAMETER mm. 400
MAIN CHUCK:
Spindle nose (ASA attachment) A2-8
CHUCK SPEED (min./max.) g./min. 3.200

MOTOR POWER ENGINE KW Kw. 22/26
BAR PASSAGE mm. 80
X axis stroke mm. 235
Z axis stroke mm. 1050
QUICK ADVANCES X12 mt./min. – Z 15 mt./min.

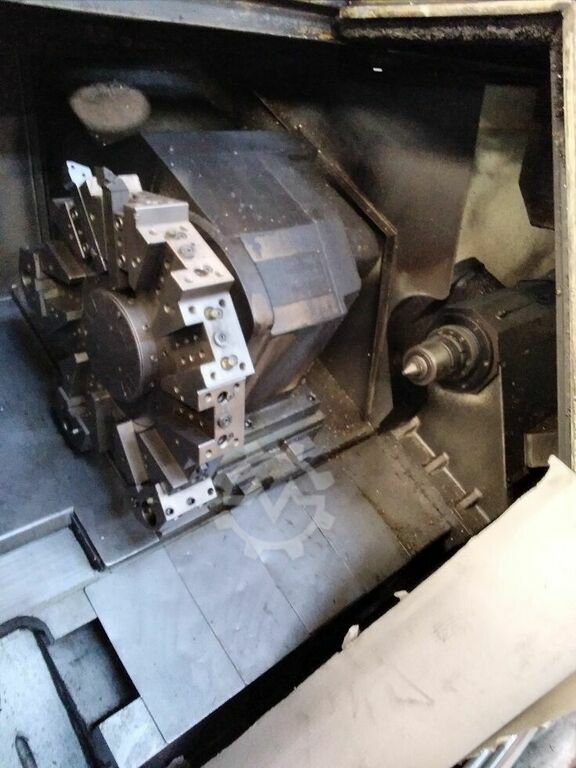

TOOL DOOR TURRET (Model) Balls
NUMBER OF TOOL POSITIONS: T1 12
Fanuc 18i-T CONTROL

DIMENSIONS L P H mm. 4610 x 2040 x 1930
WEIGHT Kg. 5250

ACCESSORIES INCLUDED Belt Chip Evacuator
Set of fixed tool holders (interior exterior)
Built-in Swivel Tailstock
Tool setting in the machine
Preparation for smoke extractor
Autocentring Autoblock diameter mm.315 just replaced
