Description

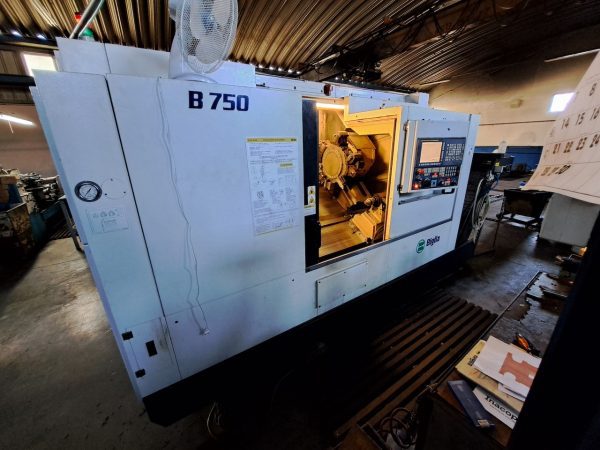

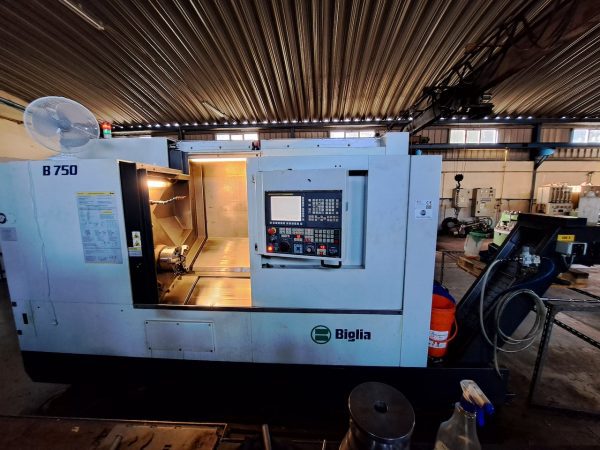

BIGLIA B 750 – Year 2017
CNC Lathe
| Turning length | 552 mm |
| Turning Ø | 552 mm |
| Length between centers | 1100 mm |

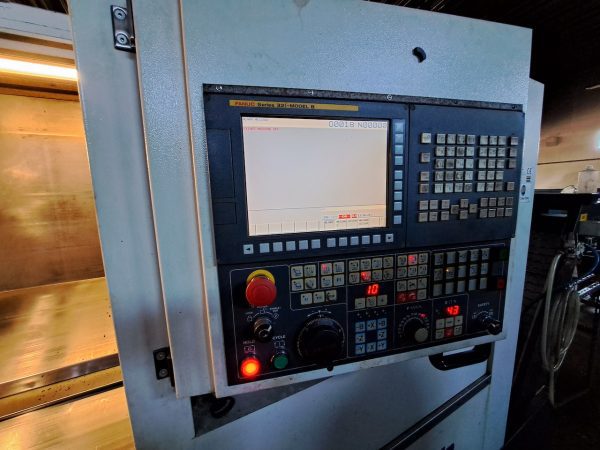

| Type of CNC | Fanuc32iO |
| X-axis | 305 mm |
| Z-axis | 860 mm |
| BIGLIA B 750 | CNC Lathe |
| Spindle bore | 60 mm |
| Turning speed | 4500 rpm |
| Tailstock | no |
| Bar feeder | no |
| Y.O.M. 2017 | |
| Length x width x height | 3600.0 × 2000.0 × 2000.0 |
| Weight | 7400 kg |
| Worked hours | 1200 hours |
| Hours under power | 1200 hours |
BIGLIA B750 CNC Lathe
1100mm per points.
Diameter max. of bar: 65mm | 80mm | 93/100mm
Diameter max. machining: 552/350mm | 552/450mm | 552mm
Max speed spindle: 4500rpm/ 3500rpm/ 3000rpm
Spindle nose: 6″ HANDLE/ 8″ HANDLE/ 8″ HANDLE
Spindle motor power: 30-40 kW/ 15-22 kW/ 30-38 kW
Sub spindle motor power: 5000-4500 rpm (only on SM & YS versions)
Number of tools: 16/12
X Axis Displacement: 305mm
Axis Y Displacement: 140 mm (only in Y & YS versions)
Z Axis Displacement: 860mm
Fast Scroll X | AND | z 18m/min | 7.5 m/min (only in Y & YS versions) | 24m/min

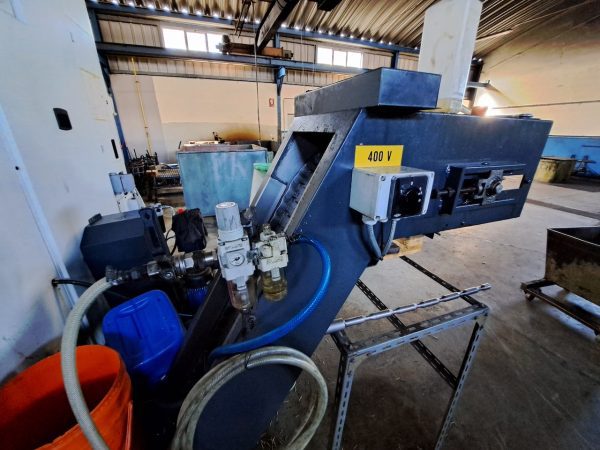

Dimensions (chip extractor included) 507 cm/ 203 cm/ 222 cm
