Description

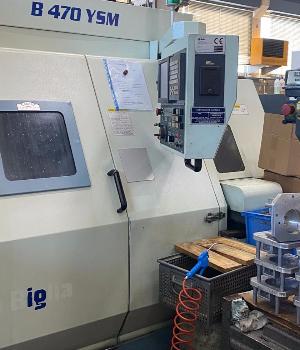

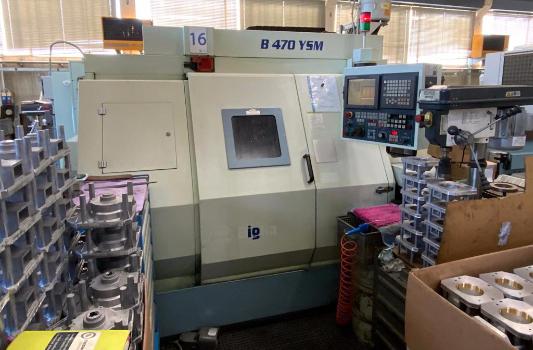

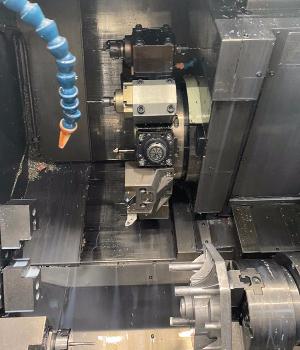

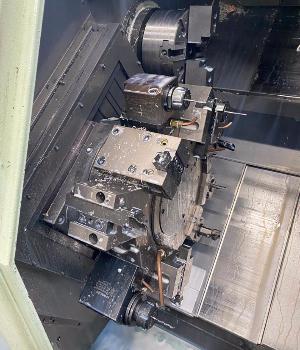

BIGLIA B 470 YSM – Year 2002
CNC Turning Center
| Turning length | 320 mm |
| Turning Ø | 240 mm |
| Ø above the bed | 68 mm |
| Ø above transversing slide | 520 mm |
| Length between centers | mm |
| Type of CNC | Fanuc 18i – T |
| X-axis | 160 mm |
| Z-axis | 390 mm |
| Max workpiece weight | 165 kg |
| Spindle taper | ASA 6 |
| Spindle bore | 80 mm |
| Number of turrets | 2 |
| Number of tools on turret | 12 |
| Number of rotating tools | 12 |
| Turning speed | 4000 rpm |
| Spindle motor power | 26 kW |
| Tailstock | no |
| Bar feeder | no |

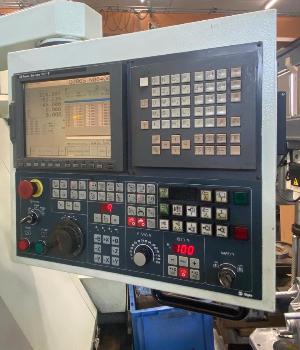

Fanuc CNC model
CNC version 18i – T
Main spindle nose ASA 6
Main spindle power 26 Kw
Self-centering main spindle diameter 210 mm
Main spindle bar passage 70 mm
Turnable diameter 240 mm
Turnable length 320 mm
Number of main spindle revolutions 4000
Number of Tool Holder Turrets 2
Number of tool places in the first turret 12
Motorized number of first turret 12
X axis travel first turret 160 mm
Y axis travel first turret 100 mm
Z axis travel first turret 390 mm
Number of second turret tool places 12
Second turret motorized number 12
Travel Axis X second turret 160 mm
Z axis travel second turret 240 mm
Rapid feeds linear axes X Y Z 24 m / min
Counter spindle yes
Spindle nose ASA 5
Number of counter spindle revolutions 4000
Power against spindle 11 Kw
Bar passage 45 mm
Self-centering diameter 165 mm
Z travel counter spindle 420 mm

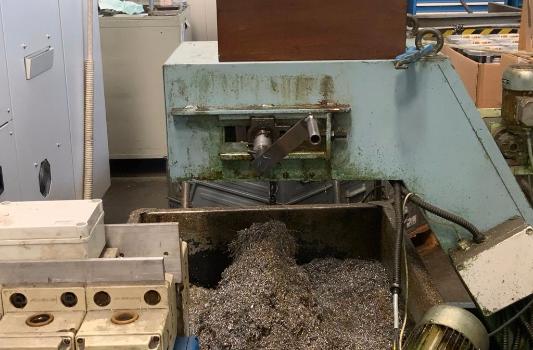

Chip conveyor belt
Number of powered tool holders supplied 4
