Description

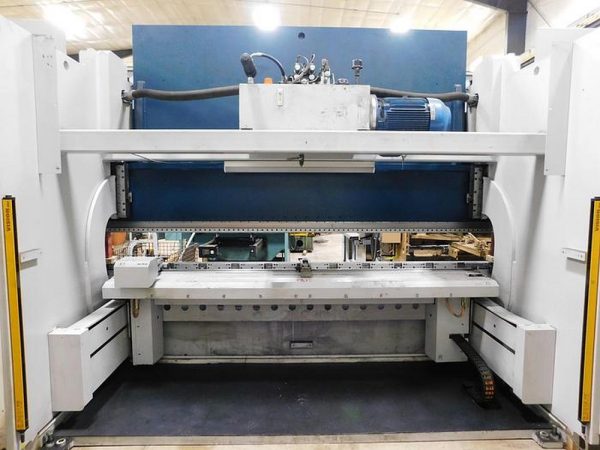

Adira PA16030 – Year 2017
CNC Press Brake 180 Ton
| Year | 2017 |
|---|---|
| Make | Adira |
| Model | PA16030 |
| Adira PA16030 | Hydraulic Press Brake Ton 180 |
| Capacity | 180 Ton |
|---|---|
| Overall Length of Bed | 13′ |

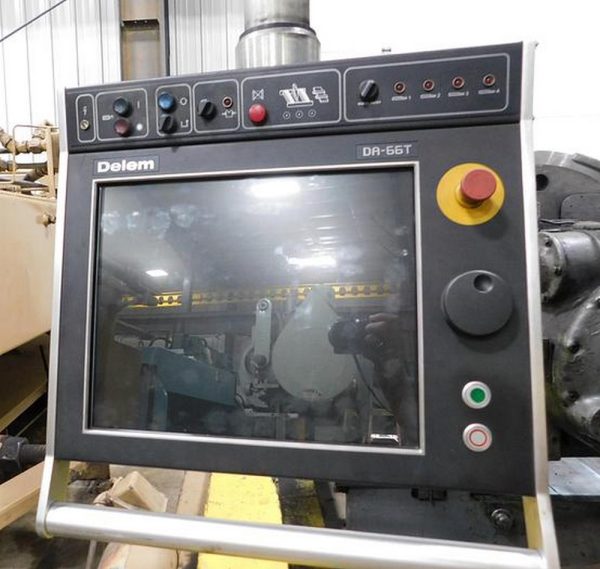

| Control | Delem 66T |
| Back Gauge | 8 Axis |
| Distance Between Housings | 124″ |
| Stroke | 10″ |
| Throat Depth | 16″ |
| Open Height | 20″ |
| Approach Speed | 354 IPM |
| Bend Speed | 23 IPM |
| Return Speed | 354 IPM |
| X Axis Stroke/Speed | 24/1900 IPM |
| R Axis Stroke/Speed | 8/470 IPM |
| Z1/Z2 A X B Stroke/Speed | 3.5-108/2800 IPM |
| X1 Stroke/Speed | 4/240 IPM |
| Motor | 22 HP, 480V, 3 PH |
| Dimensions | 183″ x 72″ x 115″ |
| Machine Weight | 25,000 lbs |
FEATURES
| Crowning Laser Safe Guarding | Green Drive System |
| (2) Front Arm Supports | Rear Guarding |
| Hydraulic Clamping |
