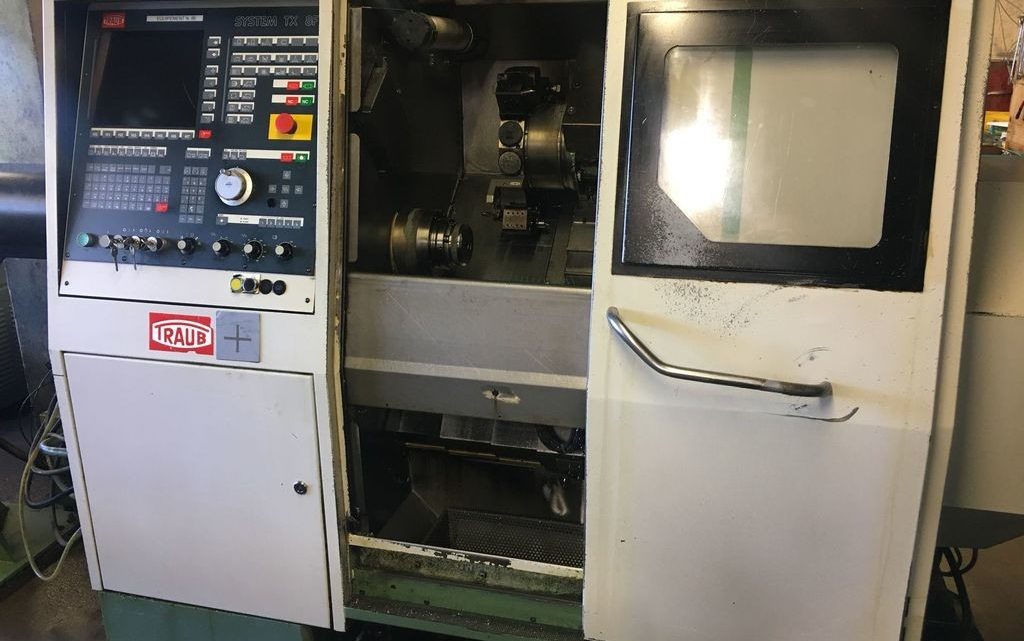

The TRAUB TND 200 G is a compact German-built CNC turning center, widely used in precision part production, especially for small-to-medium diameter components. Known for reliability and simplicity, it is a classic entry-to-mid-level industrial CNC lathe from the 1990s era.

It is typically configured as a 2-axis CNC lathe (X + Z), sometimes with sub-spindle versions (G variant) depending on configuration.

---

Key Technical Specifications (Real Market Data)

Feature	Specification
Control System	TRAUB TX8F CNC
Turning Diameter (over bed)	~340–350 mm
Turning Diameter (cross slide)	~160–220 mm
Turning Length	200–250 mm
X-axis Travel	~200 mm
Z-axis Travel	~200 mm
Spindle Speed	up to 5,000 rpm
Spindle Bore	40–42 mm
Tool Turret	12 stations
Main Motor Power	7.5 – 20 kW (varies)
Rapid Traverse	X: ~15 m/min, Z: ~25 m/min
Machine Weight	~2,900 – 3,500 kg

Important Configuration Note

• Many machines DO NOT include:
  • C-axis
  • Live tooling (driven tools)

This is critical for buyers expecting mill-turn capability.

---

What Makes the TND 200 G Attractive?

1. German Build Quality

• TRAUB is known for precision engineering and rigidity
• Excellent for tight tolerance turning

2. Simple & Robust Design

• Ideal for:
  • Shaft parts
  • Bushings
  • Automotive components
• Low complexity → lower maintenance cost

3. Strong Resale Liquidity

• Widely traded in Europe
• Easy to resell due to brand recognition

---

Critical Buying Checks (Very Important)

1. CNC Control Condition (TX8F)

• Outdated system → limited support
• Check:
  • Screen condition
  • Backup availability
  • Parameter access

2. Spindle Wear

• Check:
  • Noise at high RPM
  • Runout tolerance
• Spindle rebuild = expensive

3. Turret Accuracy

• 12-station turret must:
  • Index correctly
  • Lock firmly
• Backlash or misalignment = major issue

4. Axis Backlash

• X/Z ballscrews wear over time
• Check with dial indicator

5. Hydraulic & Chuck System

• Chuck clamping force consistency
• Oil leaks or pressure drops

---

Hidden Weak Points (From Real Market Experience)

• ❌ No live tooling → limited flexibility
• ❌ Older control → integration challenges
• ❌ Limited turning length (not for long shafts)
• ❌ Spare parts availability varies (depends on region)

---

Ideal Use Cases

This machine is BEST for:

• High-volume production of:
  • Small turned parts
  • Automotive components
  • Precision bushings
• Workshops needing:
  • Reliable secondary machine
  • Low-cost CNC entry solution

---

When NOT to Buy This Machine

Avoid if you need:

• Complex machining (C-axis / Y-axis)
• Milling operations on lathe
• Large diameter or long parts
• Modern Industry 4.0 integration

---

Market Pricing Insight (Used Market)

Typical 2026 price range:

• €… – €…
• Depends on:
  • Year (1990–1995 typical)
  • Condition
  • Accessories (bar feeder, tailstock, etc.)

---

Recommended Configurations to Look For

If possible, choose machines with:

• ✔ Sub-spindle (G version advantage)
• ✔ Tailstock
• ✔ Chip conveyor
• ✔ Bar feeder compatibility
• ✔ Documentation + backup files

---

Final Expert Verdict

TRAUB TND 200 G = Solid, reliable, but basic

Best for:

• Cost-effective production
• Simple turned parts
• Shops needing durability over flexibility

Not ideal for:

• Advanced CNC machining
• Multi-axis / mill-turn operations

---

Professional Buyer Tip (Very Important)

If your goal is to increase profitability, consider:

• Buying this machine only if you already have job flow
• Otherwise → invest slightly higher in:
  • C-axis machine
  • Live tooling lathe

Because:
👉 Flexibility = more contracts = higher ROI
