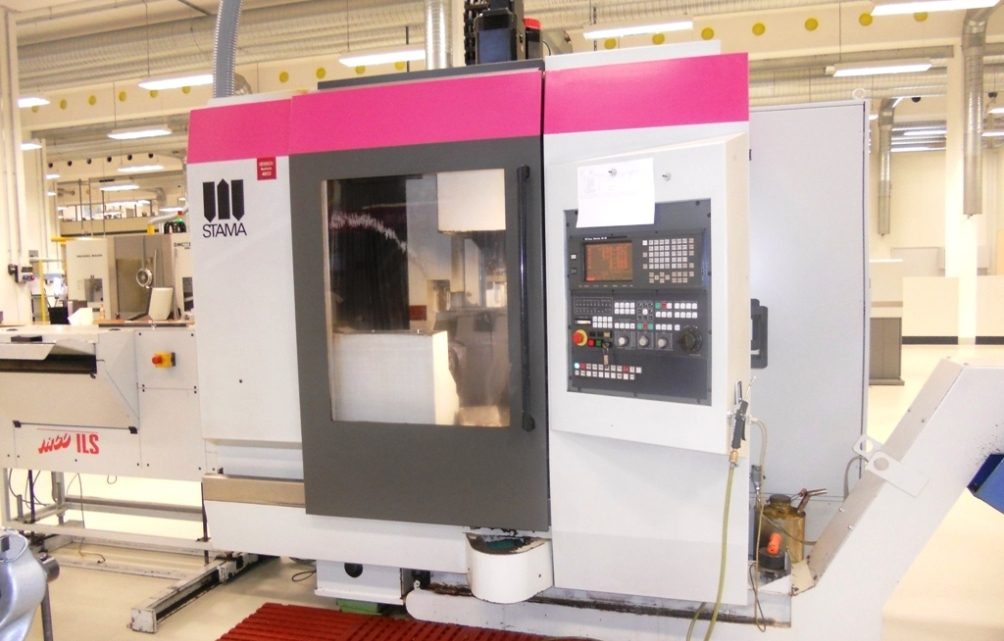

Technical Evaluation Guide: How to Identify a Quality Used, Secondhand, Pre-Owned, Surplus Stama MC 530 SM CNC Vertical Machining Center made in Germany

1) Quick Profile

Machine type: High-rigidity vertical machining center (MC 530 series), “SM” variant (single machining unit; some units may include pallet changer or automation options).
Typical use cases: Precision milling of steel, stainless, aluminum; small-to-medium batch production; automotive, general engineering.
Core advantages: German build, robust castings, high uptime, good thermal stability, strong service ecosystem via STAMA/CHIRON Group.

Ask the seller for:

Original build sheet / options list (spindle power & speed, tool magazine size, coolant type, pallet changer/automation, probing, chip conveyor).
Controller & software versions (e.g., FANUC/Siemens, options like high-speed machining, 5-axis packages if fitted).
Service & repair history (spindle rebuilds, axis ball-screw or linear guide replacements, way cover replacements).
Calibration records (ballbar/laser results, ISO 230-2 or VDI/DGQ 3441 acceptance).
Power-on hours / cutting hours and alarms log export.
Tooling & workholding included (HSK/BT holders, vises, pallets, probe styli).
CE declaration, electrical schematics, maintenance manuals.

Red flags: missing manuals, no maintenance logs, “recent repaint” with no mechanical paperwork, or refusal to share alarm history.

Casting & Ways

Linear Axes (X/Y/Z)

Jog full stroke at low and high feed. Listen for growl/squeal (bearing wear).
Stop-start tests: look for overshoot/undershoot on DRO (servo tuning/backlash).
Backlash check: indicate a 1-2-3 block on table; push/pull axis by hand while servo-locked; note reversal error.
Geometry: sweep the table with a test indicator using a granite square or spindle square; check:
- Spindle to table squareness (X/Z and Y/Z planes)
- Table flatness & nicks
- Axis straightness and roll (map if possible).

Ball Screws / Linear Guides

Spindle

Warm-up to operating temp, then run 500, 3,000, 8,000, max rpm (as equipped):
- Listen for bearing rumble or harmonics.
- Measure spindle vibration with a portable vib meter if available.
TIR check: indicate a precision test bar at 100 mm & 300 mm; TIR should be low and consistent.
Drawbar force: measure with a gauge; compare to spec (weak drawbar = pull-stud wear, tool fretting, poor surface finish).
Check spindle air purge, chiller (if fitted), and temperature rise.

ATC / Magazine

Control: confirm version/options; test high-speed look-ahead modes, macros, probing cycles, DNC/ethernet.
Drives/Amps: run axes to 80–100% rapid; check for following error and alarm history.
Electrical cabinet: clean filters, no burnt odors, fans running, no bypassed interlocks.
Backup: create a full parameters+PMC backup; verify battery dates.

Hydraulics (if pallet changer/fixture): look for leaks, pressure stability, accumulator health.
Pneumatics: dry air? Check regulators, FRL units, purge lines, tool-release circuit.
Coolant system: tank corrosion, pump noise, through-spindle coolant (TSC) pressure and line integrity.
Way lube: correct oil type, consumption rate, and no pooling under covers.

Ballbar Test (circularity)

Perform at two planes (XY and either XZ or YZ) and two radii if possible.
Look for backlash, squareness, servo mismatch; compare to typical VMC benchmarks.

Laser Interferometer (if available)

Check linear positioning over full travel; map compensation tables if supported.

Test Cut

Material: aluminum 6061 and a medium carbon steel (e.g., C45) coupon.
Ops: facing, pocketing, bore interpolation, and a long-reach side-mill pass.
Inspect: surface finish (Ra, witness marks), burr formation, bore circularity, step mismatch on interpolation.
Hold a simple flatness/parallelism target (≤0.01–0.02 mm over 200 mm is a healthy sign on a VMC of this class; excellent machines do better).

Thermal Drift

Run a 45–60 min duty cycle with periodic bore re-measures; evaluate drift and warm-up stability.

Pallet changer / twin-station: cycle repeatedly; check pallet location repeatability.
Probing (Renishaw/Blum): run probe calibration & broken-tool macros.
Mist extraction, chip conveyor, through-spindle coolant, spindle chiller, coolant filtration—verify operation.
Enclosures & safety: door interlocks, windows (delamination/craze), splash guards.

Successful ballbar within agreed circularity (e.g., ≤15–25 µm depending on your tolerance target).
Positional accuracy within ISO 230-2/VDI targets after compensation.
Repeatability verified (e.g., ≤3–5 µm on short moves).
Spindle drawbar force within spec; vibration below agreed level.
ATC 100 consecutive cycles, no faults.
24-hour leak & stability test: no hydraulic/pneumatic/coolant leaks; no thermal runaway.
Delivery of backups, manuals, parameters, keys, and any dongles/licenses.

Likely near-term costs: spindle bearing rebuild, new way covers/wipers, ballscrew support bearings, drawbar springs (age-dependent).
Preventive maintenance plan: quarterly lube checks, annual ballbar, 2–3 year laser mapping (or after relocation), coolant management program.

What are the power-on and cutting hours? Can you provide an alarm history export?
When was the last spindle rebuild and by whom? Drawbar force today?
Any axis backlash compensation currently applied? When were ball screws/linear guides last serviced?
Latest ballbar/laser reports available?
Confirm options: tool magazine size, TSC pressure, pallet changer, probe, chip conveyor, mist collector.
Which control and software options are licensed? Any locked macros or dongles?
What toolholders and workholding are included in the sale?
Can we perform a test cut and ballbar during inspection?

Pass: Geometry, spindle health, ATC reliability, and control features all meet your process tolerances with paperwork to match.
Conditional: Minor backlash or spindle drawbar borderline but economically repairable; negotiate price + escrow for remedial work.
Fail: No service history, alarming geometry/ballbar, significant spindle noise, or electrical issues.
