1. Model and Technical Specification Verification

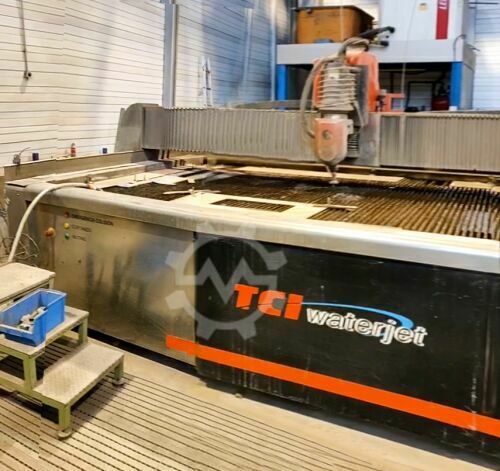

• The TCI Cutting BP-1-2030-2 belongs to the BP series waterjet / cutting systems.
• Official catalogues list its working range around 1500 × 3000 × 200 mm with a positional tolerance of approximately ±0.1 mm per axis.
• Before purchase, confirm that these specifications align with your production requirements.

Checklist:

Parameter	Why It Matters	How to Verify
Worktable / Cutting Area	Ensures your parts physically fit	Compare catalogue values and measure on-site
Tolerance / Repeatability	Determines part precision	Review spec sheet and request sample test cuts
Maximum Material Thickness	Defines capability for thicker plates	Perform trial cuts on your material
Traverse / Cutting Speed	Affects productivity and throughput	Observe during live demo
Frame / Structure Rigidity	Impacts vibration control & cut accuracy	Inspect welds, frame flatness, and integrity

---

2. Visual and Mechanical Inspection

When buying a second-hand machine, first impressions matter. Examine the following:

1. Exterior Condition
   • Check for rust, cracks, repaint marks, or hidden damage.
   • Inspect covers and doors for warping or misalignment.
2. Axis Motion System (guides, bearings, rails)
   • Look for scratches, worn surfaces, or uneven wear.
   • Check for smooth travel without binding or resistance.
3. Ball Screws / Drive System
   • Test for backlash or excessive play.
   • Listen for unusual noise during axis movement.
4. Cutting Head & Spindle Assembly
   • Check for vibration, overheating, or excessive noise.
   • Inspect seals, nozzles, and focusing components.
5. Lubrication & Hydraulic / Pump System
   • Look for leaks, dirty oil, or irregular pressure readings.
   • Ensure pumps run smoothly and quietly.
6. Electrical Cabinet
   • Inspect wiring, boards, and connectors for overheating or repairs.
   • Confirm availability of schematics.

---

3. Operational Testing

• Request a live cutting demonstration with your own material.
• Observe:
  • Edge finish quality
  • Kerf width consistency
  • Repeatability across different points of the table
  • Water/abrasive consumption rates

---

4. Documentation and History

• Confirm year of manufacture and serial number.
• Request:
  • Maintenance logs
  • Original manuals and schematics
  • Any retrofit/upgrade records
• Verify CE marking and compliance with local regulations.

---

5. Cost Factors Beyond Purchase Price

• Consumables & Spare Parts Availability → Nozzles, seals, pumps
• Operating Costs → Electricity, water, abrasive, filters
• Software / Controller Updates → Check if licensed and upgradable
• Training & Support → Does the seller or OEM provide it?

---

6. Risk Mitigation Tips

• Always inspect on-site before committing.
• Use a third-party technical inspection service for independent assessment.
• Negotiate a test cut acceptance clause in your purchase agreement.
• Factor in freight, installation, and possible retrofit costs.

---

With these steps, a buyer can safely evaluate a TCI Cutting BP1-2030-2 (Spain) or any other used CNC cutting system before purchase.
