REQUEST MACHINE INSPECTION : used Seyi SD1-160 Single Crank Servo Drive Press 160 Ton – Year 2018 made in Taiwan

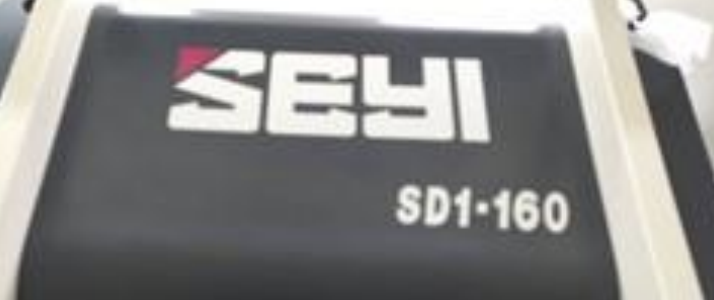

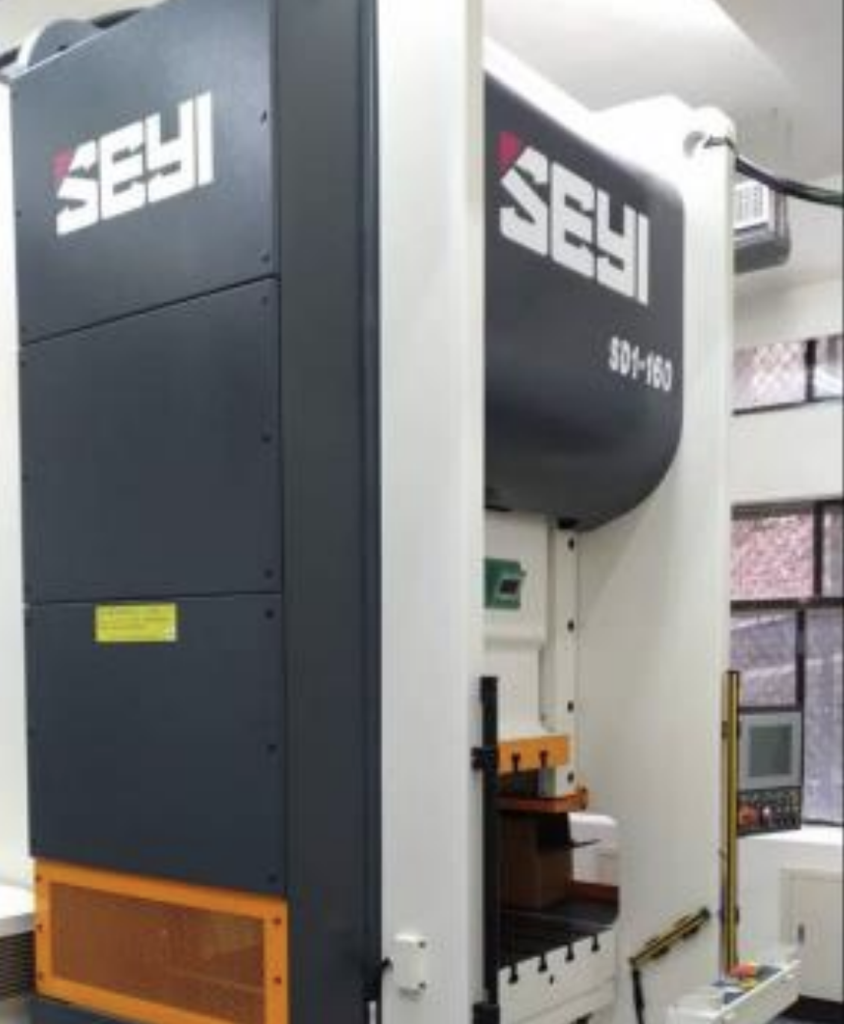

SHIEH YIH MACHINERY INDUSTRY CO.LTD. SEYI SD1-160 Single Crank Servo Drive Press – 160 Ton – Year 2018
| Technical Specification | Metric | Imperial |
|---|---|---|
| GENERAL MACHINE INFORMATION | ||
| Manufacturer | SEYI | SEYI |
| Model | SD1-160 | SD1-160 |
| Machine Type | Single Crank Servo Drive Press | Single Crank Servo Drive Press |
| Machine Number / Serial Number | contact to us | contact to us |
| Year of Manufacture | 2018 | 2018 |
| Year of Last Overhaul | 2026 | 2026 |
| Operating Hours | Approx. 7,000 h | Approx. 7,000 h |
| Condition | Like New – Used | Like New – Used |
| Functionality | Fully Functional | Fully Functional |
| PRESS CAPACITY & PERFORMANCE | ||
| Pressing Force / Nominal Capacity | 160 t | Approx. 176.4 US tons |
| Drive Type | Servo Drive | Servo Drive |
| Crank Configuration | Single Crank | Single Crank |
| Stroke Length | 220 mm | 8.66 in |
| Operating Speed | 720 mm/s | 28.35 in/s |
| Reverse Speed | 720 mm/s | 28.35 in/s |
| Servo Slide Motion | Fully Programmable Motion Profiles | Fully Programmable Motion Profiles |
| Motion Curve Programming | Programmable | Programmable |
| TABLE / BOLSTER | ||
| Table Length | 1,150 mm | 45.28 in |
| Table Width | 760 mm | 29.92 in |
| Table Height | 940 mm | 37.01 in |
| Throat Depth | 410 mm | 16.14 in |
| Distance Between Columns | 1,300 mm | 51.18 in |
| RAM / SLIDE | ||
| Ram Plate Length | 900 mm | 35.43 in |
| Ram Plate Width | 580 mm | 22.83 in |
| Distance from Table to Ram | 400 mm | 15.75 in |
| Slide Guidance | Precision-Guided Slide System | Precision-Guided Slide System |
| SERVO DRIVE & CONTROL FEATURES | ||
| Servo Drive Technology | Equipped | Equipped |
| Programmable Slide Motion Profiles | Equipped | Equipped |
| Tonnage Monitoring | Integrated | Integrated |
| Die Memory Functions | Equipped | Equipped |
| Operator Interface | Touchscreen Control Interface | Touchscreen Control Interface |
| Process Flexibility | Programmable Servo Motion for Application-Specific Production Cycles | Programmable Servo Motion for Application-Specific Production Cycles |
| ELECTRICAL DATA | ||
| Power | 30 kW | 40.2 HP |
| Input Voltage | 380 V | 380 V |
| Input Current | 64 A | 64 A |
| Input Frequency | 50 Hz | 50 Hz |
| Input Current Type | Three-Phase | Three-Phase |
| HYDRAULIC / LUBRICATION SYSTEM | ||
| Oil Tank Capacity | 70 L | 18.49 US gal |
| MACHINE DIMENSIONS & WEIGHT | ||
| Overall Length | 2,557 mm | 100.67 in / 8.39 ft |
| Overall Width | 2,161 mm | 85.08 in / 7.09 ft |
| Overall Height | 3,502 mm | 137.87 in / 11.49 ft |
| Overall Machine Weight | 20,000 kg | 44,092 lb / 22.05 US tons |
| SAFETY & EQUIPMENT | ||
| CE Marking | Included | Included |
| Safety Light Barrier | Included | Included |
| Documentation / Manual | Included | Included |
| Frame Construction | High-Rigidity Straight-Side Frame | High-Rigidity Straight-Side Frame |
| APPLICATIONS | ||
| Precision Metal Stamping | Suitable | Suitable |
| Metal Forming | Suitable | Suitable |
| Blanking | Suitable | Suitable |
| Progressive Die Applications | Suitable | Suitable |
| Automotive Components | Suitable | Suitable |
| Electronics Components | Suitable | Suitable |
| Appliance Components | Suitable | Suitable |
| General Metal Forming | Suitable | Suitable |
| SERVO PRESS ADVANTAGES | ||
| Production Cycle Optimization | Programmable Servo Motion Allows Optimized Production Cycles | Programmable Servo Motion Allows Optimized Production Cycles |
| Part Quality | Servo Motion Profiles Designed to Improve Forming Quality | Servo Motion Profiles Designed to Improve Forming Quality |
| Tooling Wear | Programmable Motion Can Help Reduce Tooling Wear | Programmable Motion Can Help Reduce Tooling Wear |
| Energy Efficiency | Servo Drive Technology for Improved Energy Efficiency Compared with Conventional Mechanical Press Operation | Servo Drive Technology for Improved Energy Efficiency Compared with Conventional Mechanical Press Operation |
