REQUEST MACHINE INSPECTION : used NILES-SIMMONS N40MC-6000 CNC MultiTasking Turning Milling Center 6 Meters – Year 2019 made in Germany

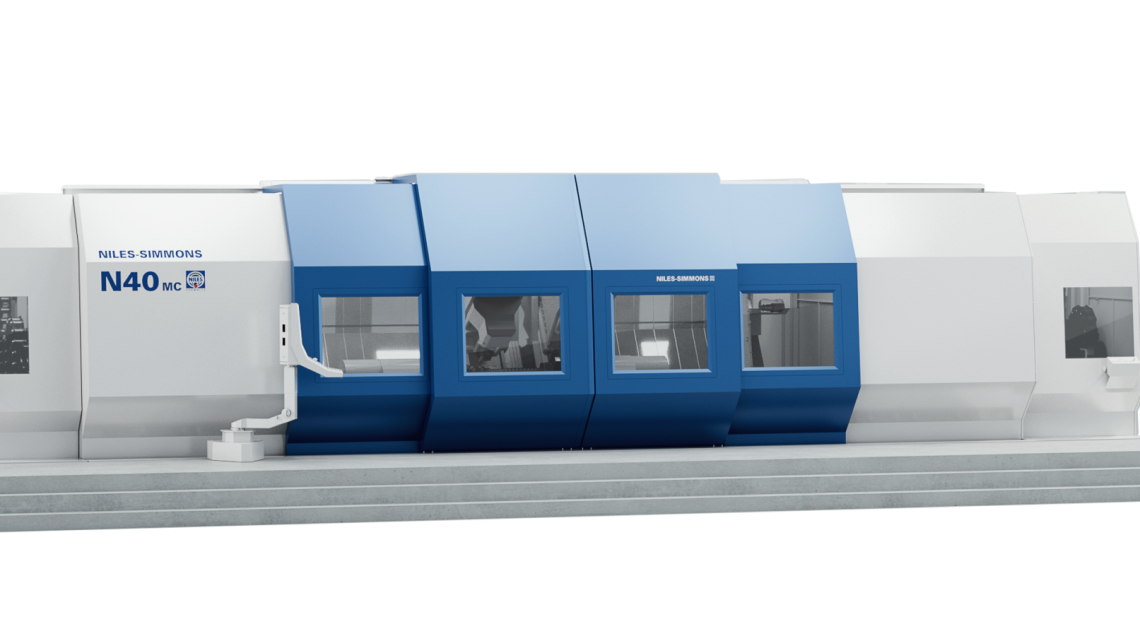

NILES N40MC-6000 CNC Turning & Milling Center – Year 2019
| Technical Specification | Metric | Imperial |
|---|---|---|
| GENERAL MACHINE INFORMATION | ||
| Manufacturer | NILES | NILES |
| Model | N40MC-6000 | N40MC-6000 |
| Machine Type | CNC Turning & Milling Center | CNC Turning & Milling Center |
| Year of Manufacture | 2019 | 2019 |
| CNC Control | Siemens Sinumerik 840D sl | Siemens Sinumerik 840D sl |
| Country of Origin | Germany | Germany |
| Machine Location | contact to us | contact to us |
| Made in | Germany | Germany |
| Original Purchase Price in 2019 | EUR | EUR |
| OPERATING HOURS – RECORDED FEBRUARY 2025 | ||
| Total Operating Hours | 38,601 h | 38,601 h |
| Main Spindle Operating Hours | 1,958 h | 1,958 h |
| Milling Spindle Operating Hours | 1,760 h | 1,760 h |
| WORKING CAPACITY | ||
| Working Length / Turning Length | 6,000 mm | 236.22 in / 19.69 ft |
| Turning Diameter | Ø820 mm | Ø32.28 in |
| Swing Diameter over Bed / Bed Slide | Ø820 mm | Ø32.28 in |
| Working Height | 1,390 mm | 54.72 in |
| Maximum Workpiece Weight Between Centers | 4,000 kg | 8,818 lb |
| AXIS TRAVELS & C-AXIS | ||
| X-Axis Slide Travel | +850 to -25 mm | +33.46 to -0.98 in |
| Z-Axis Slide Travel | 6,820 mm | 268.50 in / 22.38 ft |
| C-Axis Minimum Increment | ±0.001° | ±0.001° |
| C-Axis Holding Torque with Backlash-Free Spindle Brake | 3,000 Nm | 2,213 lb-ft |
| C-Axis Speed Range | 0 – 50 RPM | 0 – 50 RPM |
| C-Axis Maximum Torque – 100% ED | 3,700 Nm | 2,729 lb-ft |
| C-Axis Maximum Torque – 60% ED | 4,430 Nm | 3,267 lb-ft |
| WORKPIECE SPINDLE | ||
| Spindle Nose | DIN 55026 A15 | DIN 55026 A15 |
| Spindle Through Bore | Ø160 mm | Ø6.30 in |
| Front Spindle Bearing Diameter | Ø240 mm | Ø9.45 in |
| Spindle Gearbox | 2-Stage Gearbox, Continuously Programmable | 2-Stage Gearbox, Continuously Programmable |
| Spindle Drive Power – 100% ED | 78 kW | 104.6 HP |
| Spindle Drive Power – 60% ED | 87 kW | 116.7 HP |
| Number of Spindle Speed Ranges | 2 | 2 |
| Spindle Speed Range I | 10 – 501 RPM | 10 – 501 RPM |
| Spindle Speed Range II | 10 – 1,750 RPM | 10 – 1,750 RPM |
| Spindle Torque – Range I at 60% ED | 8,000 Nm | 5,900 lb-ft |
| Spindle Torque – Range II at 60% ED | 2,308 Nm | 1,702 lb-ft |
| STEADY REST | ||
| Steady Rest Clamping Range | Ø70 – 425 mm | Ø2.76 – 16.73 in |
| TURNING / DRILLING / MILLING HEAD | ||
| Front Bearing Diameter | Ø110 mm | Ø4.33 in |
| Tool Interface | Capto C8 | Capto C8 |
| TOOL MAGAZINE | ||
| Tool Magazine Configuration | 2 Magazines | 2 Magazines |
| Tool Identification System | Balluff Chip System | Balluff Chip System |
| Maximum Tool Diameter – Every Position | Ø125 mm | Ø4.92 in |
| Maximum Tool Diameter – Every Second Position | Ø200 mm | Ø7.87 in |
| Maximum Tool Length | 600 mm | 23.62 in |
| Maximum Tool Weight | 25 kg | 55.12 lb |
| TAILSTOCK | ||
| Tailstock Quill Diameter | Ø180 mm | Ø7.09 in |
| Tailstock Quill Stroke | 170 mm | 6.69 in |
| Tailstock Internal Taper | MK6 / Morse Taper No. 6 | MT6 / Morse Taper No. 6 |
| Tailstock Axial Force – Manually Adjustable | 5 – 30 kN | 1,124 – 6,744 lbf |
| Tailstock Center Height Adjustment | ±0.15 mm | ±0.0059 in |
| COOLANT, CHIP MANAGEMENT & MONITORING | ||
| Collision Monitoring System | ACS 3 – ARTIS Collision Monitoring Sensor | ACS 3 – ARTIS Collision Monitoring Sensor |
| Chip Conveyor System | Equipped | Equipped |
| Coolant System | Equipped | Equipped |
| Coolant Tank Capacity | 980 L | 258.9 US gal |
| ELECTRICAL & POWER REQUIREMENTS | ||
| Total Power Requirement | 155 kW | 207.9 HP |
| MACHINE DIMENSIONS & WEIGHT | ||
| Approximate Machine Weight | 65,000 kg / 65 t | 143,300 lb / 71.65 US tons |
| Approximate Space Requirement | 16,350 × 3,700 × 3,850 mm | 53.64 × 12.14 × 12.63 ft |
| SALE & DELIVERY INFORMATION | ||
| Availability | Short-Term Availability | Short-Term Availability |
| Freight Basis | Ex Foundation | Ex Foundation |
| Technical Data Disclaimer | Technical data and condition information are non-binding and without guarantee. Subject to prior sale. | Technical data and condition information are non-binding and without guarantee. Subject to prior sale. |
