REQUEST MACHINE INSPECTION : used Emmegi Phantomatic X6 CNC 4-Axis Profile Machining Center for the working of bars of aluminium, PVC, light alloys in general and steel pieces up to 2mm – Year 2022 made in Italy
Emmegi Phantomatic X6 CNC 4-Axis Profile Machining Center – Year 2022
| Technical Specification | Metric | Imperial |
|---|---|---|
| GENERAL MACHINE INFORMATION | ||
| Manufacturer | Emmegi | Emmegi |
| Model | Phantomatic X6 | Phantomatic X6 |
| Machine Type | CNC 4-Axis Profile Machining Center | CNC 4-Axis Profile Machining Center |
| Year of Manufacture | 2022 | 2022 |
| Controlled Axes | 4 Axes – X, Y, Z and Continuous-Rotation A-Axis | 4 Axes – X, Y, Z and Continuous-Rotation A-Axis |
| Suitable Materials | Aluminium, PVC, Light Alloys and Steel Pieces up to 2 mm | Aluminium, PVC, Light Alloys and Steel Pieces up to 0.079 in |
| AXIS TRAVELS | ||
| X-Axis Travel – Longitudinal | 7,700 mm | 303.15 in / 25.26 ft |
| Y-Axis Travel – Cross | 270 mm | 10.63 in |
| Z-Axis Travel – Vertical | 420 mm | 16.54 in |
| A-Axis Travel | 0° – 180° Continuous Rotation | 0° – 180° Continuous Rotation |
| A-Axis Function | Electrospindle can be positioned at any intermediate angle between 0° and 180° | Electrospindle can be positioned at any intermediate angle between 0° and 180° |
| Direct Machining Capability | Machining on 3 Sides Directly | Machining on 3 Sides Directly |
| Extended Machining Capability | Up to 5 Sides with Angular Unit / Suitable Tooling | Up to 5 Sides with Angular Unit / Suitable Tooling |
| WORKING CAPACITY & OPERATING MODES | ||
| Maximum Bar / Profile Length in Single Work Area | Up to 7,700 mm | Up to 303.15 in / 25.26 ft |
| Single-Piece Machining | Supported | Supported |
| Multi-Piece Machining | Supported | Supported |
| Pendular Machining Mode | Supported – Two Independent Machining Areas | Supported – Two Independent Machining Areas |
| Work Zones | 2 Independent Work Zones in Pendular Mode | 2 Independent Work Zones in Pendular Mode |
| Dynamic Pendular Mode | Available on Phantomatic X6 HP Version with 2 Supplementary Axes | Available on Phantomatic X6 HP Version with 2 Supplementary Axes |
| Absolute CNC Axes | Yes – Axis Resetting Not Required After Machine Restart | Yes – Axis Resetting Not Required After Machine Restart |

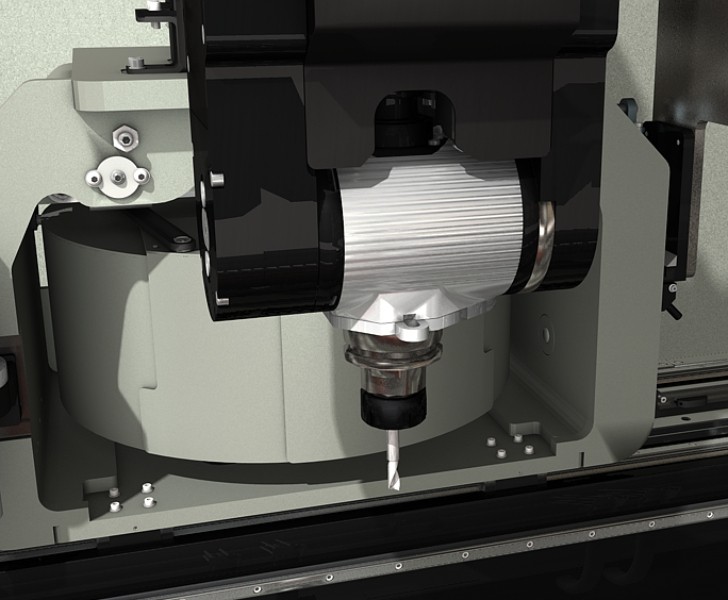

| ELECTROSPINDLE | ||
| Electrospindle Power | 7.0 kW – S1 Continuous Duty | Approx. 9.39 HP – S1 Continuous Duty |
| Maximum Spindle Speed | 16,500 rpm | 16,500 rpm |
| Tool Holder / Spindle Taper | HSK-50F | HSK-50F |
| Electrospindle Rotation | 0° – 180° Continuous CNC-Controlled A-Axis | 0° – 180° Continuous CNC-Controlled A-Axis |
| TOOL MAGAZINE & TOOLING | ||
| Automatic Tool Changer Capacity | 8 Positions | 8 Positions |
| Tool Magazine Location | Mounted Directly on X-Axis Carriage | Mounted Directly on X-Axis Carriage |
| Compatible Tools | Milling Cutters, Angular Unit and Saw / Disc Blades | Milling Cutters, Angular Unit and Saw / Disc Blades |
| Maximum Saw / Disc Blade Diameter | Ø180 mm | Ø7.09 in |
| Angular Unit Capability | Tool Storage Can Accommodate 1 Angular Unit | Tool Storage Can Accommodate 1 Angular Unit |

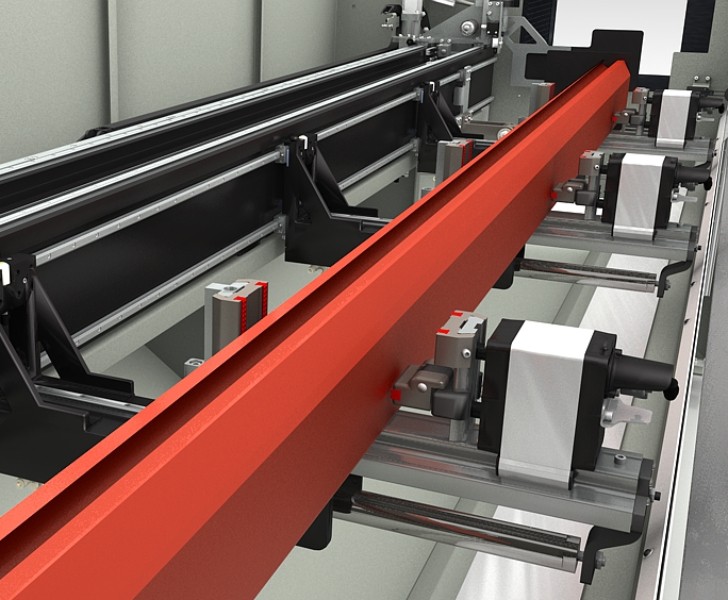

| WORKING TABLE & MACHINE FEATURES | ||
| Work Table | Mobile Work Table | Mobile Work Table |
| Loading / Unloading Assistance | Mobile Table Facilitates Workpiece Loading and Unloading | Mobile Table Facilitates Workpiece Loading and Unloading |
| Workable Profile Section | Mobile Work Table Significantly Increases the Workable Section | Mobile Work Table Significantly Increases the Workable Section |
| APPLICATIONS | ||
| Primary Application | CNC machining of bars and profiles made of aluminium, PVC, light alloys in general and steel pieces up to 2 mm (0.079 in). | |
| Machining Capability | The 4th CNC-controlled A-axis allows the electrospindle to rotate continuously from 0° to 180° and to be positioned at any intermediate angle, enabling machining operations on the top and side faces of the profile at different angles. | |
| 5-Side Machining | With the appropriate angular unit and tooling configuration, machining operations can be performed on up to five sides of the workpiece. | |
| Production Flexibility | Designed for single-piece, multi-piece and pendular machining. Pendular operation provides two independent machining areas for increased production flexibility and reduced loading/unloading downtime. | |
