REQUEST MACHINE INSPECTION : used BLM Group LS5 CNC Fiber Laser 12kW – Year 2022 made in Italy

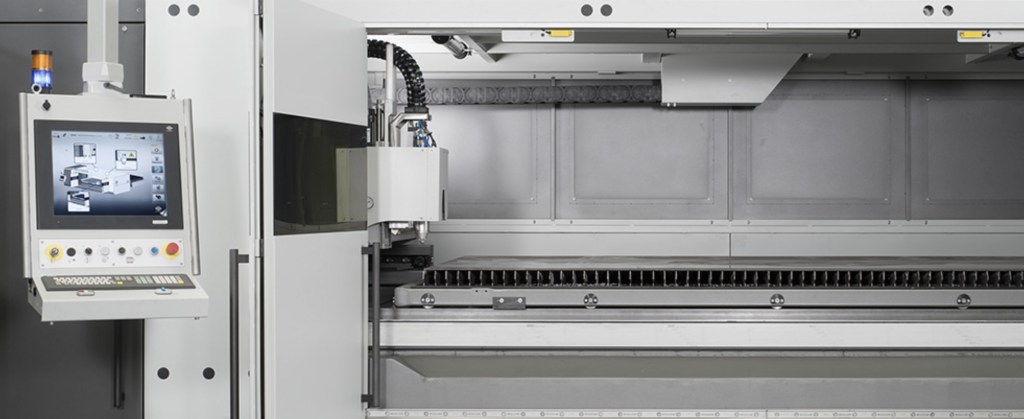

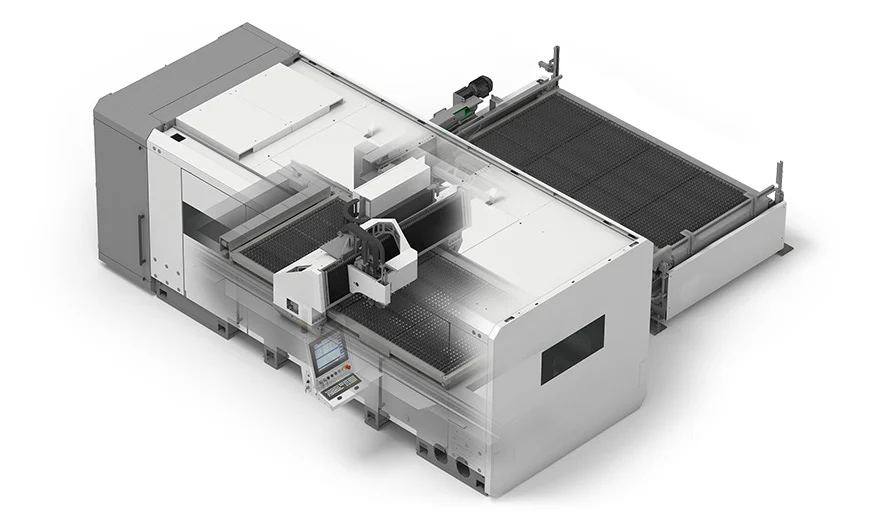

BLM Group LS5 CNC Fiber Laser 12 kW – Year 2022
| Technical Specification | Metric | Imperial |
|---|---|---|
| GENERAL MACHINE INFORMATION | ||
| Manufacturer | BLM Group | BLM Group |
| Model | LS5 12 kW Fiber Laser | LS5 12 kW Fiber Laser |
| Machine Type | CNC Fiber Laser Cutting Machine | CNC Fiber Laser Cutting Machine |
| Year of Manufacture | 2022 | 2022 |
| Condition | Used | Used |
| Made in | Italy | Italy |
| Production Hours | Less than 1,000 Hours | Less than 1,000 Hours |
| CNC CONTROL & LASER SOURCE | ||
| Machine Control | Siemens Control | Siemens Control |
| Operator Panel | 19″ Touchscreen Panel | 19″ Touchscreen Panel |
| Laser Type | Fiber Laser | Fiber Laser |
| Laser Power | 12 kW / 12,000 W | Approx. 16.09 HP / 12,000 W |
| Laser Power Source | IPG Fiber 12000 | IPG Fiber 12000 |
| Cutting Head | Precitec ProCutter Zoom | Precitec ProCutter Zoom |
| TABLE & SHEET CAPACITY | ||
| Table Size | Approx. 3,048 × 1,524 mm | 120 × 60 in / 10 × 5 ft |
| Maximum Sheet Size | Approx. 2,997 × 1,499 mm | 118 × 59 in |
| Pallet Shuttle Table | 1,524 × 3,048 mm Dual Pallet Shuttle Table | 5 × 10 ft Dual Pallet Shuttle Table |
| AXIS TRAVELS & PERFORMANCE | ||
| X-Axis Travel | Approx. 3,099 mm | 122 in / 10.17 ft |
| Y-Axis Travel | Approx. 1,549 mm | 61 in / 5.08 ft |
| Z-Axis Travel | Approx. 152 mm | 6 in |
| Rapid Traverse Rate – X / Y | Approx. 196 m/min | 7,716 in/min |
| Repeatability | ±0.0254 mm | ±0.001 in |
| Accuracy | ±0.0508 mm | ±0.002 in |
| CUTTING CAPACITY | ||
| Maximum Cutting Thickness – Mild Steel | Approx. 39.9 mm | 1.57 in |
| Machinable Materials | Mild Steel, Stainless Steel, Aluminum, Copper and Brass | |
| CUTTING PROCESS & AUTOMATION | ||
| Active Nozzle Change | 18 Stations | 18 Stations |
| Active Piercing | Included | Included |
| Cutting Process Control | Active Cutting Process Control | Active Cutting Process Control |
| Nesting Software | Lantek Expert On-Board | Lantek Expert On-Board |
| On-Machine Nest Modification | Supported via Lantek Expert On-Board | Supported via Lantek Expert On-Board |
| COOLING, FILTRATION & AUXILIARY SYSTEMS | ||
| Laser Cooling System | IPG Closed-Loop Chiller | IPG Closed-Loop Chiller |
| Chiller Function | Provides Laser Resonator Cooling | Provides Laser Resonator Cooling |
| Dust Collector | Included | Included |
| Assist Gas Filtration System | Included | Included |
| Scrap Collection Trays | Included | Included |
| INCLUDED EQUIPMENT | ||
| Fiber Laser Source | IPG Fiber 12000 – Included | IPG Fiber 12000 – Included |
| Dual Pallet Shuttle System | Included | Included |
| Precitec ProCutter Zoom Cutting Head | Included | Included |
| Automatic Nozzle Changer | 18-Station System – Included | 18-Station System – Included |
| Manuals | All Available Manuals Included | All Available Manuals Included |
| MACHINE DESCRIPTION | ||
| Description | 2022 BLM Group LS5 high-power CNC fiber laser cutting machine equipped with a 12 kW IPG Fiber laser source, Siemens CNC control and Precitec ProCutter Zoom cutting head. The machine features a 5 × 10 ft dual-pallet shuttle table, high-speed X/Y axis movement, automatic 18-station nozzle changing, active piercing and cutting process control, and Lantek Expert On-Board software for nest modification directly at the machine. | |
| Production Capability | Designed for high-speed, high-precision sheet metal cutting applications involving mild steel, stainless steel, aluminum, copper and brass. Maximum stated mild-steel cutting thickness is approximately 39.9 mm (1.57 in). | |
| Operating Hours Note | Machine is reported to have less than 1,000 production hours. | |
