REQUEST MACHINE INSPECTION – Available 2 units : used Gleason Phoenix 275-G CNC HYPOID Spiral Bevel Gear Grinder – Year 2011 / Year 2009

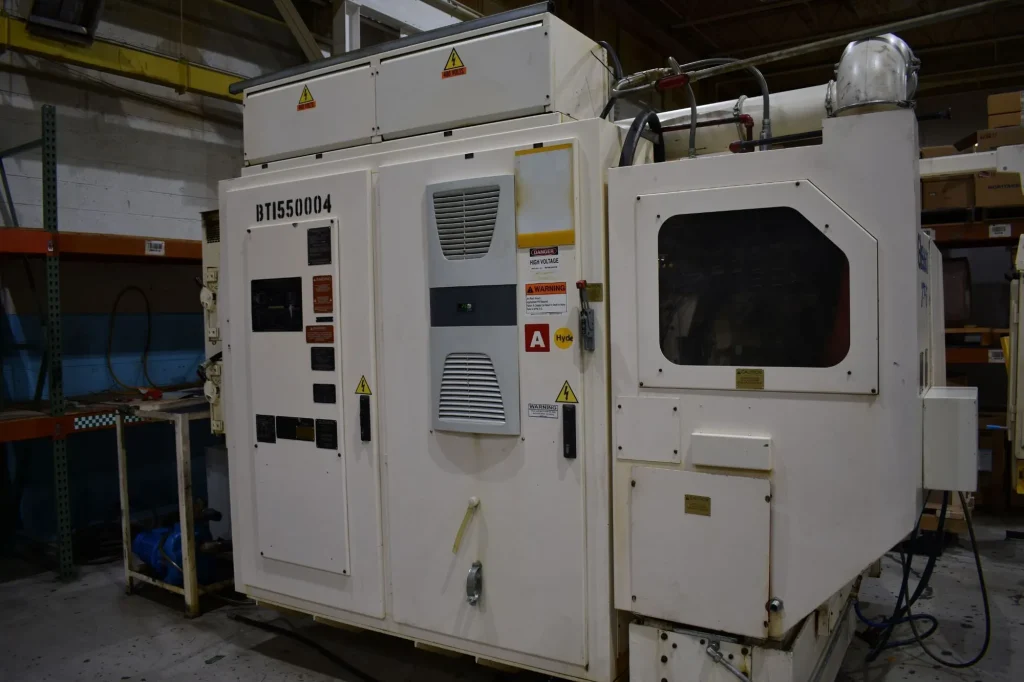

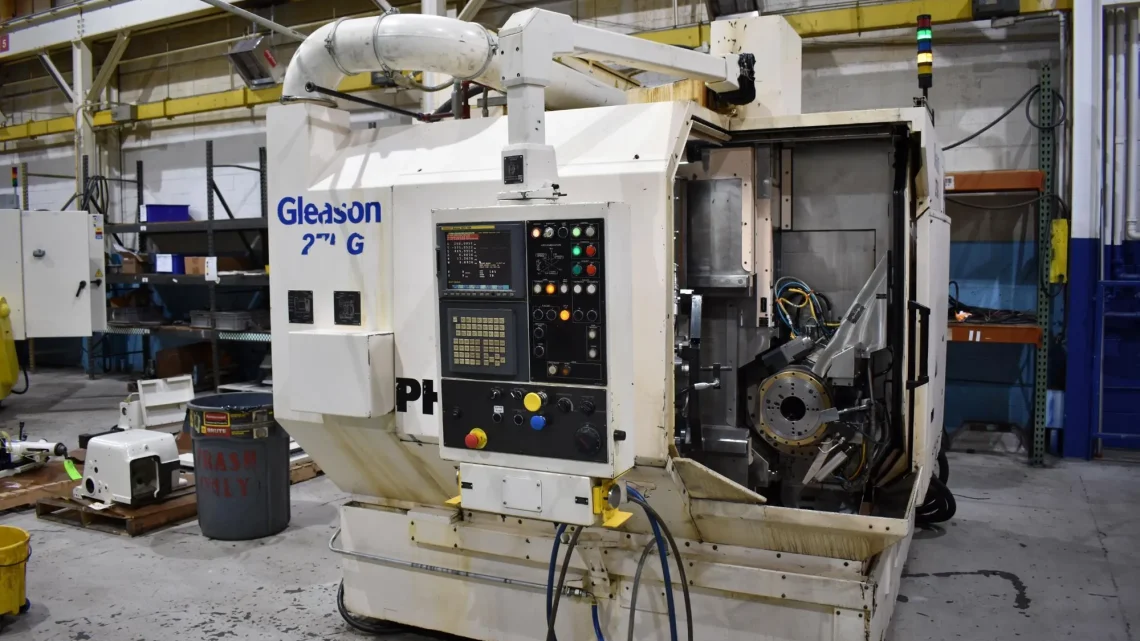

Gleason Phoenix 275-G CNC HYPOID Spiral Bevel Gear Grinder – Years 2011 & 2009
| Specification | Metric | Imperial |
|---|---|---|
| Manufacturer | Gleason | Gleason |
| Model | Phoenix 275-G | Phoenix 275-G |
| Machine Type | CNC HYPOID Spiral Bevel Gear Grinder | CNC HYPOID Spiral Bevel Gear Grinder |
| Quantity Available | 2 Machines | 2 Machines |
| Machine #1 – Year | 2011 | 2011 |
| Machine #1 – Serial Number | 1006506 | 1006506 |
| Machine #2 – Year | 2009 | 2009 |
| Machine #2 – Serial Number | 991709 | 991709 |
| CNC Control | Fanuc 160i-MB | Fanuc 160i-MB |
| MACHINE SPECIFICATIONS | ||
| Transmission Ratio | 10:1 | 10:1 |
| Minimum Number of Teeth | 3 | 3 |
| Maximum Number of Teeth | 200 | 200 |
| Range of Tooth Size | 20 mm | 0.787″ |
| Maximum Tooth Width | 58 mm | 2.283″ |
| Spindle Speed | 6,000 RPM | 6,000 RPM |
| Workpiece Spindle Speed | 1,200 RPM | 1,200 RPM |
| Maximum Tool Diameter | 230 mm | 9.055″ |
| Minimum Tool Diameter | 69.85 mm | 2.750″ |
| AXIS TRAVELS | ||
| X-Axis Travel | 325 mm | 12.795″ |
| Y-Axis Travel | 350 mm | 13.780″ |
| Z-Axis Travel | 470 mm | 18.504″ |
| B-Axis | +90.1° / -1° | +90.1° / -1° |
| WORKPIECE TABLE | ||
| Workpiece Table Diameter | Ø 212.71 mm | Ø 8.374″ |
| POWER, WEIGHT & DIMENSIONS | ||
| Total Power Requirement | 75 kW | Approx. 100.6 HP |
| Machine Weight (Approx.) | 10,000 kg (10 t) | Approx. 22,046 lbs |
| Machine Dimensions (Approx.) | 2,438 × 3,658 mm | 8′ × 12′ |
| EQUIPPED WITH | ||
| CNC Control | Fanuc 160i-MB CNC Control | Fanuc 160i-MB CNC Control |
| Coolant Filtration Unit | Hoffman HSF 200-SE | Hoffman HSF 200-SE |
| Books & Manuals | Included | Included |
| Additional Equipment | All necessary items to operate the machine included | All necessary items to operate the machine included |
| CONDITION & INSPECTION | ||
| Operating Condition | Machines are presently running under power in the plant | Machines are presently running under power in the plant |
| Condition | Excellent Running Condition | Excellent Running Condition |
| Inspection | Machines are available for inspection under power | Machines are available for inspection under power |
| Important Note | The two machines share a common filtration unit; prompt inspection is highly recommended. | The two machines share a common filtration unit; prompt inspection is highly recommended. |
