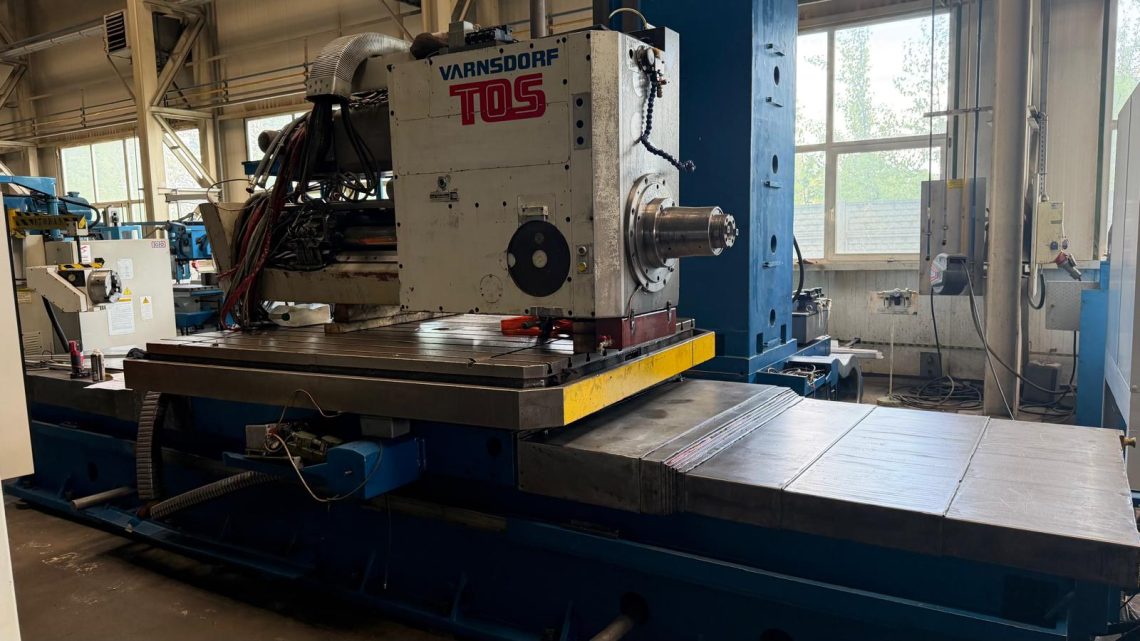

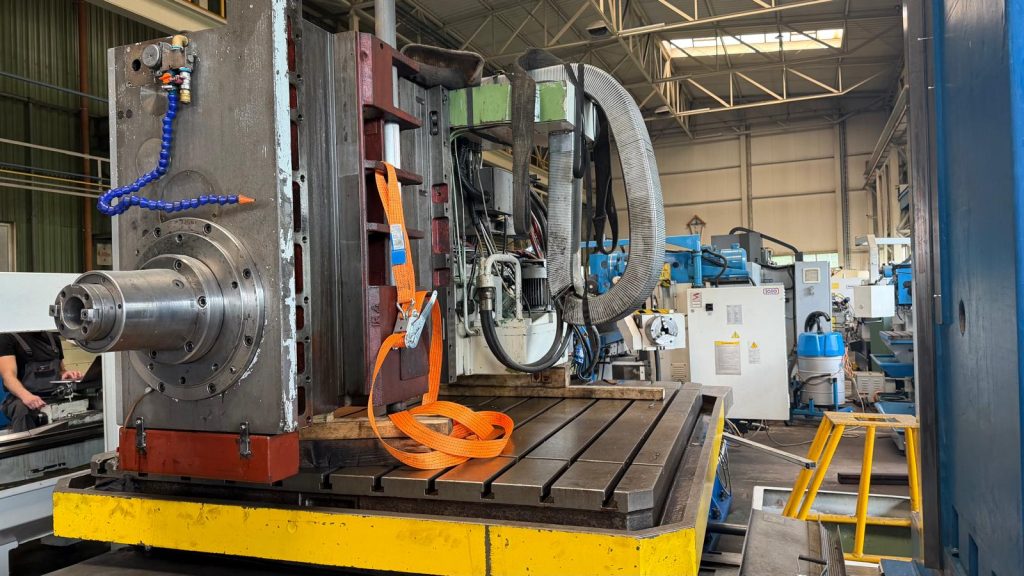

In Stock & Available : used TOS Varnsdorf WHN 13.8B CNC 6-Axis Table Type Boring Machine 3.5 Meters – Year 1987
| TOS Varnsdorf WHN 13.8B CNC 6-Axis Table Type Boring Machine 3.5 Meters – Year 1987 | ||
| Manufacturer | TOS Varnsdorf | |
| Model | WHN 13.8B | |
| Year | 1987 | |
| Machine Type | CNC Table Type Horizontal Boring & Milling Machine | |
| Axis Configuration | 6-Axis CNC | |
| Technical Specifications – Metric & Imperial | ||
| Spindle Diameter | Metric / Imperial | 130 mm / approx. 5.12″ |
| Table Size | Metric / Imperial | 2,000 × 1,800 mm / approx. 78.74″ × 70.87″ |
| X-Axis Travel | Metric / Imperial | 3,500 mm / approx. 137.80″ |
| Y-Axis Travel | Metric / Imperial | 2,500 mm / approx. 98.43″ |
| Z-Axis Travel | Metric / Imperial | 1,250 mm / approx. 49.21″ |
| W-Axis / Spindle Travel | Metric / Imperial | 800 mm / approx. 31.50″ |
| Rotary Table / B-Axis | – | CNC Rotary Table |
| Maximum Spindle Speed | RPM | 1,500 RPM |
| Spindle Motor Power | Metric / Imperial | 37 kW / approx. 49.6 HP |
| Tool Taper | – | SK 50 |
| Axis Details | ||
| X-Axis | 3,500 mm / 137.80″ | Longitudinal Travel |
| Y-Axis | 2,500 mm / 98.43″ | Vertical Travel |
| Z-Axis | 1,250 mm / 49.21″ | Cross Travel |
| W-Axis | 800 mm / 31.50″ | Boring Spindle Travel |
| B-Axis | Rotary | Rotary Table Axis |
| Machine Description | ||
| TOS Varnsdorf WHN 13.8B CNC 6-Axis Table Type Horizontal Boring & Milling Machine designed for heavy-duty machining of large and complex industrial components.The machine features a 130 mm (5.12″) boring spindle and a large 2,000 × 1,800 mm (78.74″ × 70.87″) rotary table. The large working envelope includes 3,500 mm X-axis, 2,500 mm Y-axis, 1,250 mm Z-axis and 800 mm W-axis spindle travel, providing substantial machining capacity for large workpieces. The spindle reaches a maximum speed of 1,500 RPM and is powered by a 37 kW (approx. 49.6 HP) spindle motor. Equipped with an SK 50 tool interface and CNC rotary table, the machine is suitable for heavy-duty boring, milling, drilling and machining of large industrial components. | ||
| under power Fanuc control unit |
||
