Performance Matters: How to Choose a Reliable Pre-Owned, Used, Surplus, Secondhand Heyligenstaedt DW 1800 CNC Heavy Duty Lathe made in Germany without Regret?

Choosing a large, heavy-duty CNC lathe is a long-term investment decision. The Heyligenstaedt DW 1800 CNC heavy duty lathe, manufactured in Germany, is known for its massive construction, torque-oriented spindle design, and long service life. However, due to the age of most available units, buying the wrong machine without a proper technical evaluation can result in high refurbishment costs and operational limitations.

This guide focuses on the technical realities, inspection priorities, and buyer decision criteria needed to select a reliable used Heyligenstaedt DW 1800 CNC lathe without regret.

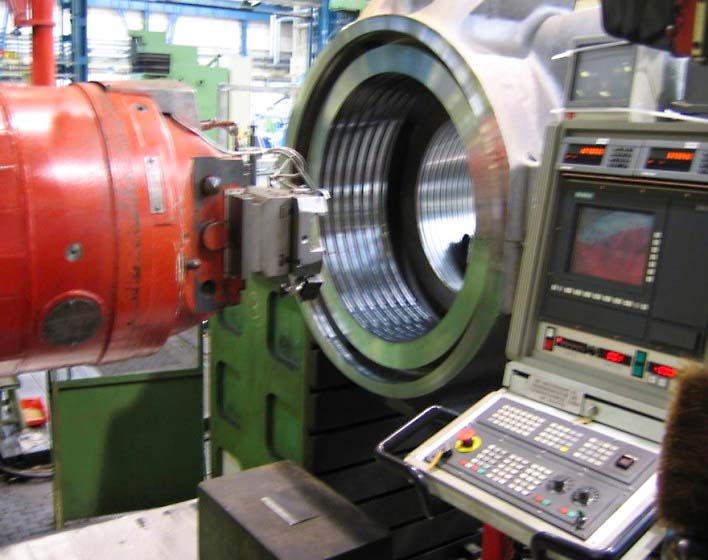

1. Machine Overview – Heyligenstaedt DW 1800 CNC Heavy Duty Lathe

The Heyligenstaedt DW 1800 is a heavy-duty CNC lathe designed for large-diameter and long workpieces. These machines are commonly found in industries such as power generation, heavy mechanical engineering, large shaft manufacturing, compressors, turbines, and special-purpose turning applications.

Heyligenstaedt machines are known for:

Extremely rigid cast iron beds
High torque, low-speed spindle design
Long Z-axis travel for oversized components
Robust mechanical construction suitable for continuous industrial use

Many machines were originally produced as conventional lathes and later retrofitted with CNC systems, which means configuration varies significantly from machine to machine.

2. Typical Technical Specifications (Reference Range)

Exact specifications vary by year, retrofit, and customer configuration. Below is a commonly observed specification range for used DW 1800 machines currently on the market:

Manufacturer: Heyligenstaedt (Germany)
Model: DW 1800 CNC Heavy Duty Lathe
Year of manufacture: Typically 1970s (many later CNC retrofits)

Turning diameter range: Approximately 600 mm to 2800 mm
Maximum turning length: Approximately 3950 mm
Center height: Approximately 1600 mm

Spindle speed range: Approximately 0.45 to 90 rpm
Spindle motor power: Approximately 63 kW

X-axis feed range: 0 to 200 mm/min
Z-axis feed range: 0 to 400 mm/min

Rapid traverse (X / Z): Approximately 1200 / 2400 mm/min

Total installed power: Approximately 200 kW
Supply voltage: Typically 380 V

Overall dimensions (approximate):
Length 16.4 m
Width 12.39 m
Height 5.17 m

Important note: Always confirm the exact specifications directly from the machine nameplate, electrical cabinet, and CNC parameter pages.

3. Define Your Application Before Buying

Before inspecting any machine, clearly define your production requirements:

Workpiece diameter and length
Maximum workpiece weight
Material types (carbon steel, alloy steel, cast iron, etc.)
Required tolerances and surface finish
Duty cycle and production volume

The DW 1800 is optimized for large, heavy components rather than high-speed precision turning. If your application requires tight tolerances at high spindle speeds, this may not be the ideal platform without major upgrades.

4. Critical Technical Inspection Points

Machine Bed and Structure

Inspect the bed, column, and base casting for cracks, repairs, or deformation.
Check guideway wear using straight edges or measurement tools.
Excessive wear on the bed or saddle directly affects accuracy and repeatability.

Spindle and Bearing System

Run the spindle at multiple speeds.
Listen for abnormal noise, vibration, or bearing rumble.
Measure spindle runout using a dial indicator.
Excessive heat or noise often indicates bearing wear, which is costly to repair on machines of this size.

Guideways, Slides, and Feed Drives

Move X and Z axes through their full stroke.
Check for stick-slip motion, backlash, or uneven movement.
Inspect lubrication systems and oil distribution lines.

CNC Control and Electrical System

Identify the installed CNC control (Siemens, Fanuc, Heidenhain, or older proprietary systems).
Verify that spare parts and service support are still available.
Inspect electrical cabinets for corrosion, overheating marks, or non-original wiring.
Confirm parameter backups and program loading capability.

Hydraulic and Lubrication Systems

Check hydraulic pressure stability.
Inspect pumps, hoses, and seals for leaks.
Verify automatic lubrication cycles function correctly.

Operational Test and Test Cutting

Perform dry runs to confirm axis synchronization.
Conduct a test cut on representative material.
Check dimensional accuracy, surface finish, and repeatability.

5. Common Red Flags When Buying a Used DW 1800

Missing or incomplete maintenance history
Unknown or unsupported CNC control system
Excessive spindle vibration or noise
Severe rust or pitting on guideways
Unverified CNC retrofit documentation
Seller unwilling to demonstrate the machine under power

Any of these issues should trigger either renegotiation or a decision to walk away.

6. Total Cost of Ownership Considerations

The purchase price is only part of the investment. Additional costs often include:

Transportation and heavy rigging
Professional installation and leveling
Electrical adaptation to local standards
CNC operator training
Initial refurbishment and spare parts

For a machine of this size, logistics and installation costs can be substantial and must be planned in advance.

7. Documentation and Seller Verification

Always request:

Machine serial number and year of manufacture
CNC retrofit documentation (if applicable)
Electrical schematics
Maintenance records
Operational videos under power

Verifying the seller’s credibility and ownership is just as important as inspecting the machine itself.

Final Recommendation

The Heyligenstaedt DW 1800 CNC heavy duty lathe is a powerful and capable machine when properly maintained and correctly matched to the application. Its strength lies in rigidity, torque, and durability rather than speed or compactness.

To avoid regret:
