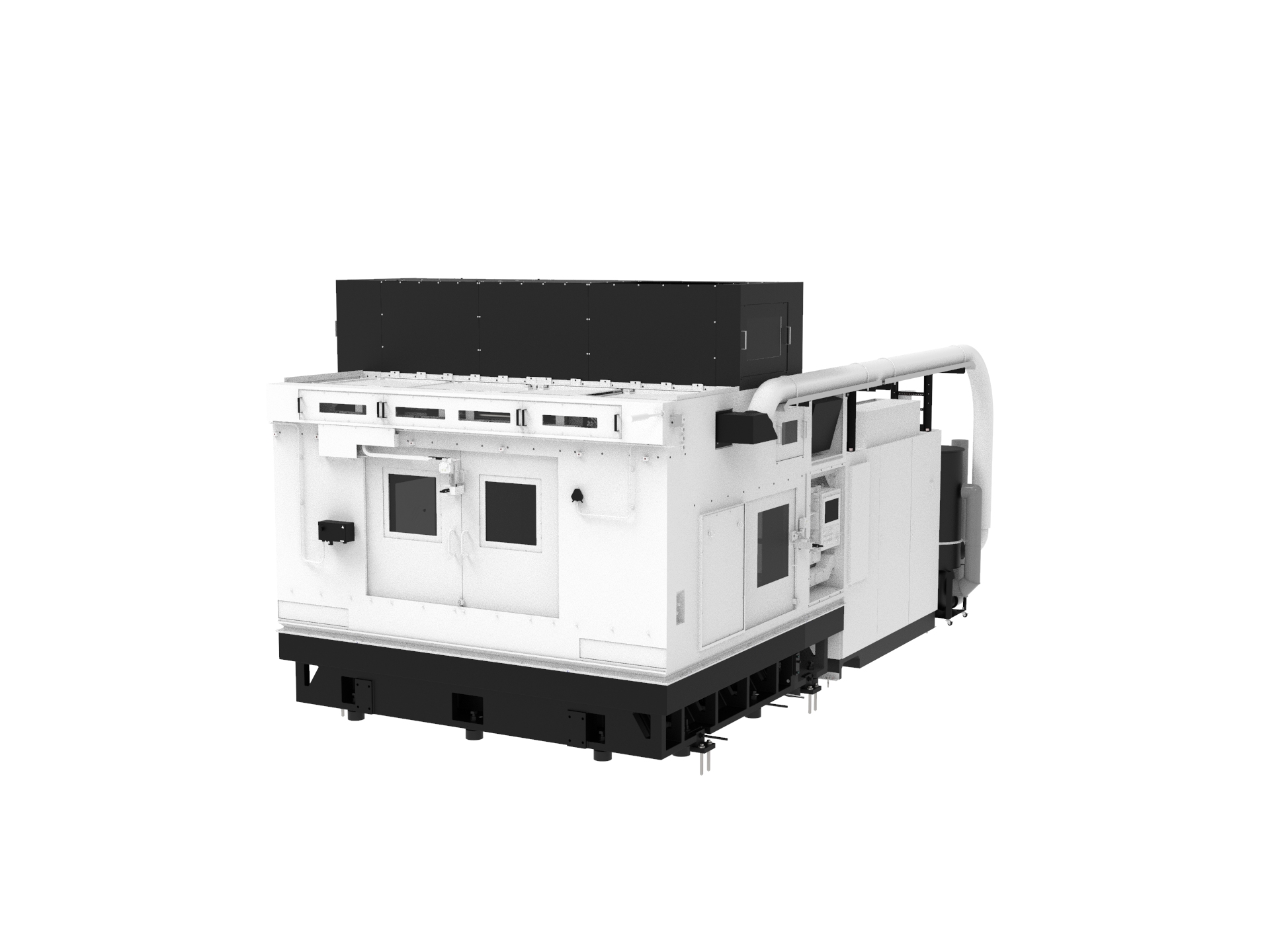

KOMATSU CX500 CNC Machine Specifications
Origin: Japan
Category: Milling CNC Horizontal Machining Center 5 Axes 2 Pallets
| Machine specification items | Unit | Standard specification value |
|---|---|---|
| Pallet | mm | 500 × 500 (2-sided swivel type, top side: M16 tap) |
| Stroke X/Y/Z | mm | 800 / 800 / 900 |
| Spindle taper type | Type | HSK-A63 |
| Spindle speed | min⁻¹ | 100 ～ 20,000 |
| Spindle motor | kW | Output (10 min / continuous): 37 / 26 |
| Fast forwarding speed | m/min | 60 |
| Number of tools stored | pcs | 60 |
| Max. tool length / Max. tool diameter | mm | 400 / Φ250 |
| Control unit | Type | FANUC 31i-B PLUS Series |
| Machine size | mm | W2,985 × D6,175 × H3,280 |
| Machine mass | kg | 18,000 |
