LEMAS HYDRAULIC SECTION BENDING MACHINES – TECHNICAL DATA

Technical Specification	LEMAS LH-2RS	LEMAS LH-3RS	LEMAS LH-4RS	LEMAS LH-5RS	LEMAS LH-6RS
Section Modulus (cm³)	7–14	18–25	30–40	45–50	95–100
Power (hp)	5	5	15	30	30
Standard Roll Diameter (mm)	220	275	310	400	500
Upper Shaft Diameter (mm)	70	85	105	140	180
Lower Shaft Diameter (mm)	70	85	105	140	180
Machine Weight (kg)	1,700	2,000	4,500	7,000	8,500
Dimensions L × W × H (m)	1.7 × 1.2 × 1.8	1.9 × 1.2 × 1.8	2.9 × 1.9 × 2.0	4.3 × 2.5 × 3.0	5.0 × 2.7 × 3.3

SECTION BENDING CAPACITIES – STANDARD TOOLING

Section Type / Dimensions (mm)	LEMAS LH-2RS	LEMAS LH-3RS	LEMAS LH-4RS	LEMAS LH-5RS	LEMAS LH-6RS
Channel – Configuration 1	50 × 50 × 6 / Ø600	75 × 75 × 9 / Ø800	100 × 100 × 12 / Ø1000	120 × 120 × 12 / Ø1250	150 × 150 × 15 / Ø1000
Channel – Configuration 2	50 × 50 × 6 / Ø650	75 × 75 × 9 / Ø1000	100 × 100 × 12 / Ø1000	100 × 100 × 12 / Ø1250	130 × 130 × 15 / Ø1200
Channel – Configuration 3	50 × 50 × 6 / Ø600	75 × 75 × 9 / Ø700	100 × 100 × 12 / Ø800	120 × 120 × 12 / Ø1250	150 × 150 × 15 / Ø1200
Channel – Configuration 4	50 × 50 × 6 / Ø750	75 × 75 × 9 / Ø1300	100 × 100 × 12 / Ø1500	120 × 120 × 12 / Ø1500	130 × 130 × 15 / Ø1700
T-Section – Configuration 1	50 × 50 × 6 / Ø700	75 × 75 × 9 / Ø1000	100 × 100 × 13 / Ø1200	140 × 140 × 15 / Ø1250	150 × 150 × 15 / Ø1300
Flat Bar – Configuration 1	70 × 15 / Ø500	80 × 18 / Ø800	100 × 25 / Ø700	120 × 25 / Ø1000	150 × 30 / Ø1000
Flat Bar – Configuration 2	125 × 25 / Ø500	180 × 20 / Ø500	200 × 35 / Ø600	250 × 30 / Ø1000	250 × 40 / Ø1000
Square Bar	40 × 40 / Ø500	50 × 50 / Ø500	60 × 60 / Ø600	70 × 70 / Ø800	90 × 90 / Ø1200

SECTION BENDING CAPACITIES – SPECIAL TOOLING

Section Type / Dimensions (mm)	LEMAS LH-2RS	LEMAS LH-3RS	LEMAS LH-4RS	LEMAS LH-5RS	LEMAS LH-6RS
Solid Round Bar	Ø40 / Ø400	Ø60 / Ø600	Ø70 / Ø700	Ø80 / Ø800	Ø100 / Ø1000
Round Pipe	Ø60 / Ø600	Ø76 / Ø700	Ø100 / Ø1100	Ø142 / Ø1800	Ø170 / Ø2000
Square Hollow Section	40 × 40 × 4	65 × 65 × 6	90 × 90 × 5	100 × 100 × 6.5	120 × 120 × 8
IPE Beam	100 / Ø600	140 / Ø600	160 / Ø800	200 / Ø900	300 / Ø1100
HEA Beam	–	–	120 / Ø800	140 / Ø900	180 / Ø1100
HEB Beam	–	–	100 / Ø800	120 / Ø900	160 / Ø1100
Channel – Special Configuration 1	–	140 × 60 / Ø600	160 × 65 / Ø800	200 × 75 / Ø900	300 × 100 / Ø1100
Channel – Special Configuration 2	–	140 × 60 / Ø800	160 × 65 / Ø1000	200 × 75 / Ø1000	300 × 100 / Ø1100
Channel – Special Configuration 3	–	65 × 42 / Ø4000	80 × 45 / Ø5000	100 × 50 / Ø8000	160 × 65 / Ø9000
IPE Beam – Special Configuration	–	80 / Ø1200	100 / Ø1500	120 / Ø2500	160 / Ø3500
HEA Beam – Special Configuration	–	–	–	–	140 / Ø6000

STANDARD EQUIPMENT

1	Standard Universal Tooling

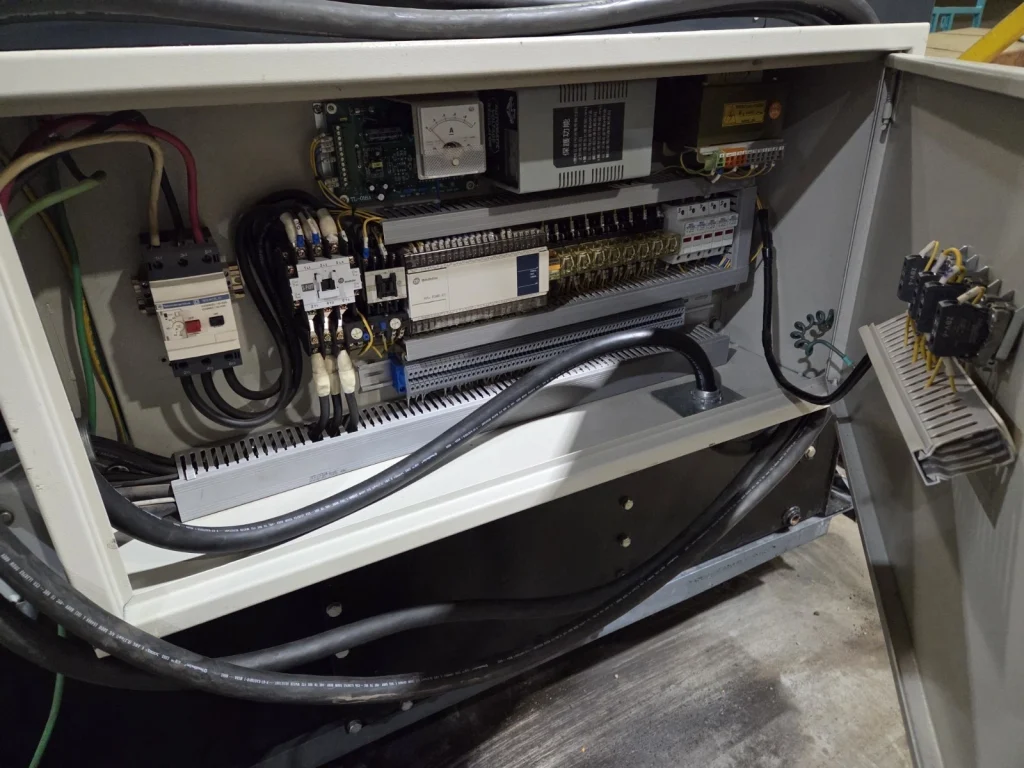

2	Motor & Controls
3	Remote Control Panel
4	LED Position Readouts
5	Hydraulic Control System

SPECIAL EQUIPMENT

1	Steel Pipe and Round Bar Rolls
2	Other Section Rolls

TECHNICAL NOTES

1	All data are valid for mild steel with a yield point of 270 N/mm².
2	Indicated diameters for angle, T, flat and square bars are valid for maximum sections in one or a few passes.
3	Smaller sections can be bent to smaller diameters.
4	Square bar minimum bending diameter depends on the acceptable degree of deformation.
5	Machines with extended shafts allow wider sections than specified.
6	LH-2RS, LH-3RS and LH-4RS have combined horizontal and vertical configurations. LH-5RS and larger models are vertical only.
7	Specifications are subject to change without notice.

Legend: Dimensions and bending diameters are in millimetres (mm). Ø indicates diameter. A dash (–) indicates that no capacity is specified. Standard and special tooling configurations are distinguished according to the manufacturer’s technical data.

LIEN HSIEN MACHINERY LEMAS LH-6RS Sheet & Plate Bending Rolls 3 Rolls – Year 2015

One (1) used LEMAS LH-6RS Hydraulic Section Bending Rolls machine, manufactured in 2015, available for sale. Machine Condition & History The machine is being offered for sale because its capacity exceeds the current owner’s operational requirements. The machine has been in storage for approximately four years. It was previously owned by a shipyard that ceased operations around 2020. According to the seller, the machine received very limited use during its previous ownership. The machine remains in very clean condition, with minimal visible wear. Except for the LEMAS identification sign, the machine retains its original factory paint. Please refer to the photographs for a detailed assessment of its cosmetic condition. Technical Specifications

• Manufacturer: LEMAS
• Model: LH-6RS
• Machine Type: Hydraulic Section Bending Rolls
• Year of Manufacture: 2015
• Motor Power: 30 HP
• Standard Roll Diameter: 500 mm
• Upper Shaft Diameter: 180 mm
• Lower Shaft Diameter: 180 mm
• Machine Weight: Approximately 8,500 kg
• Overall Dimensions (L × W × H): 5,000 × 2,700 × 3,300 mm

Included Equipment

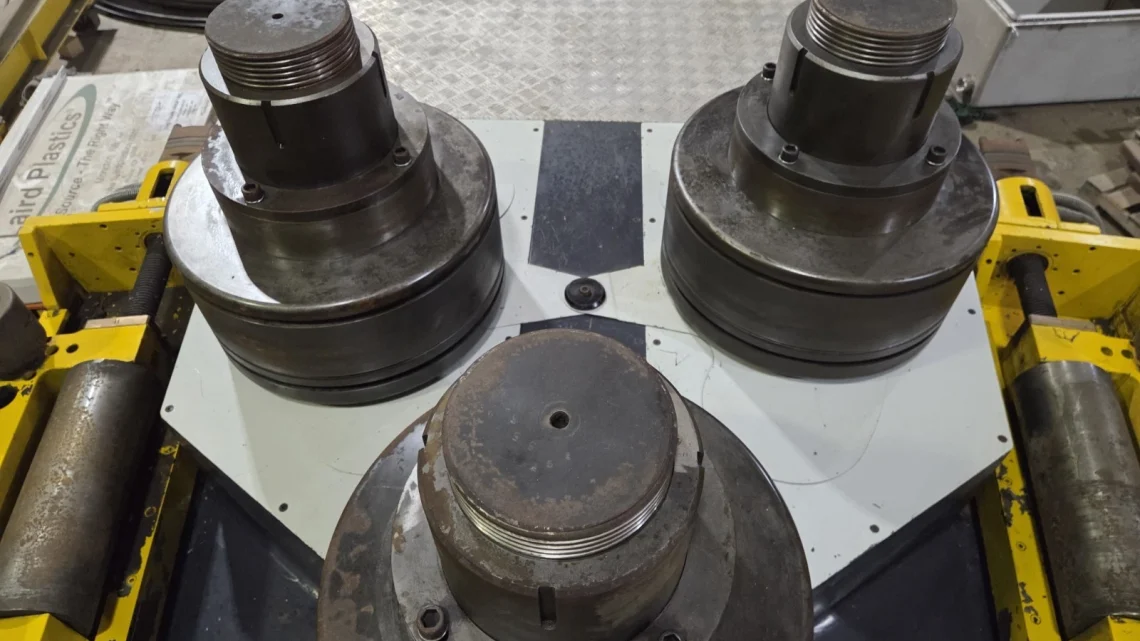

• One set of bending dies, currently installed on the machine
• Standard machine components as shown in the photographs

Not Included

• Pipe bending dies

Loading & Commercial Terms

• The seller offers free loading onto the buyer’s truck if the buyer arranges their own transportation.
• A commercial invoice can be provided.
• Customs duties, tariffs, and related import/export responsibilities must be clarified and agreed upon before purchase.

Important Notes The machine has been stored for an extended period. Its current operational condition has not been independently verified. Inspection and functional testing are recommended before purchase. All technical specifications are based on the manufacturer’s published model data and should be confirmed against the actual machine.
