In Stock & Available For Sale : used Alpha Laser ALFlak 900F CNC Mobile Fiber Laser Welding System – Year 2021 made in Germany /

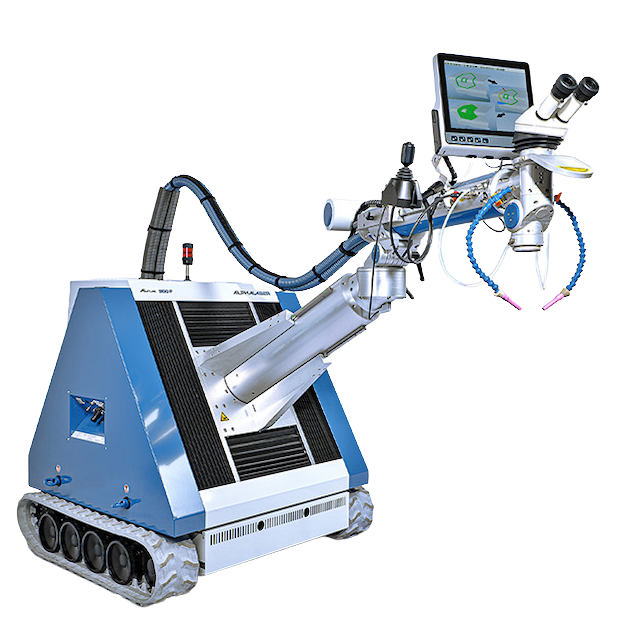

| Alpha Laser ALFlak 900F CNC Mobile Fiber Laser Welding System – Year 2021 | ||
|---|---|---|
| Specification | Metric | Imperial |
| Manufacturer | Alpha Laser | |
| Model | ALFLAK 900F | |
| Machine Number | contact to us | |
| Year of Construction | 2021 | |
| Condition | Like New (Used) | |
| Functionality | Fully Functional | |
| Operating Hours | 3,006 h | |
| Dimensions & Weight | ||
| Overall Weight | 910 kg | 2,006 lb |
| Total Length | 1,030 mm | 40.55 in |
| Total Width | 1,200 mm | 47.24 in |
| Total Height | 1,150 mm | 45.28 in |
| Laser Specifications | ||
| Laser Type / Wavelength | Fiber Laser, 1,070 nm | Fiber Laser, 1.07 µm |
| Average Power | 900 W | 1.21 hp |
| CW Output | 900 W | 1.21 hp |
| Peak Pulse Power | 9 kW | 12.07 hp |
| Pulse Energy | 90 J | 66.38 ft-lb |
| Pulse Duration | 0.2–50 ms / CW | 0.2–50 ms / CW |
| Pulse Frequency | Single Pulse – 100 Hz | Single Pulse – 100 Hz |
| Operating Modes | Pulsed / CW | |
| Welding Spot Diameter | 0.3–3.0 mm | 0.012–0.118 in |
| Optional Welding Spot Diameter | 1.1–4.0 mm | 0.043–0.157 in |
| Focusing Objective | 150 mm | 5.91 in |
| Additional Focusing Objectives | Further objectives according to lens data sheet | |
| Pulse Shaping | Adjustability of power curve within a laser pulse | |
| Display & Operation | Via touch display. Laser parameters can also be set using a multifunctional footswitch. WINLaser 4 software can be operated via touch screen. | |
| Axis Specifications | ||
| X-Axis Travel | 320 mm | 12.60 in |
| Y-Axis Travel | 330 mm | 12.99 in |
| Z-Axis Travel | 370 mm | 14.57 in |
| Electrical / Power Details | ||
| Input Voltage | 400 V | 400 V |
| Input Frequency | 50 Hz | 50 Hz |
| Electrical Fuse | 16 A | 16 A |
| Type of Input Current | Three-Phase | |
| Cooling System | ||
| Cooling Type | Water Cooling | |
| Safety Features | ||
| Safety Equipment | Head Guard | |
