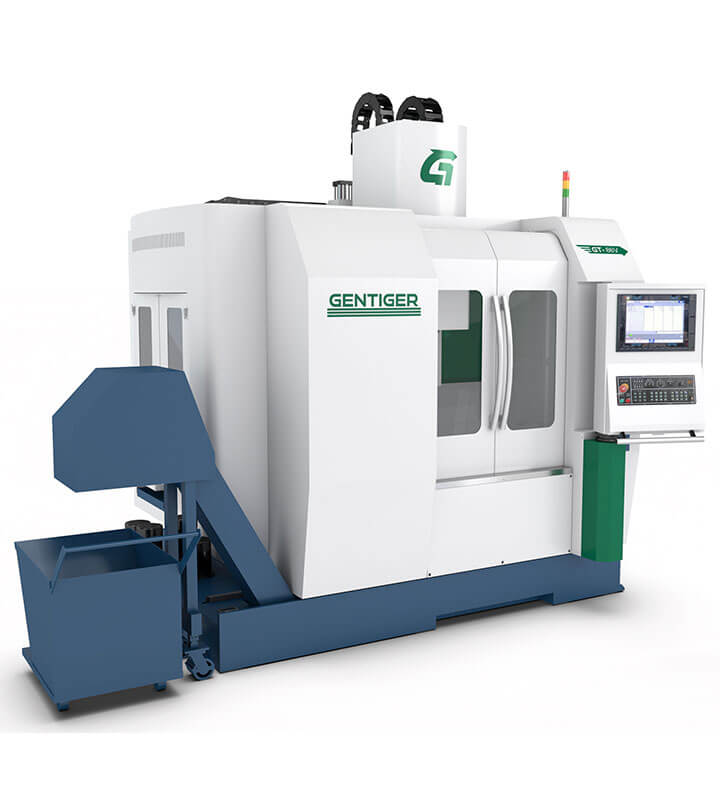

GENTIGER GT-175V T15 CNC Machine Specifications
Origin: Taiwan
Category: Milling CNC Vertical Machining Center High Speed 15000 rpm
| MODEL: T15 | |||
|---|---|---|---|
| Travel (X / Y / Z) | 1200 x 720 x 500 mm | ||
| Cutting Feedrate (X / Y / Z) | 20 m/min | ||
| Rapid Feedrate (X / Y / Z) | 45 m/min | ||
| Table Area | 1200 x 720 mm | ||
| Max. Spindle Speed | 15,000 rpm | ||
| Spindle Type | Direct Drive | ||
| Bearing Lubrication | Grease | ||
| Spindle Cooling | Oil-Cooling | ||
| Spindle Taper | BBT-40 | ||
| Magazine loading capacity | 30 tools | ||
| NOTES | |||
| Above specifications are based on Siemens controller; Heidenhain, Fanuc and Mitsubishi controllers are available. | |||
| All specifications, design and characteristics are subject to change without prior notice. | |||
Standard Accessories
- Coolant system
- Work lamp
- Toolbox
- Spindle air blow system
- Chip air blow device
- Air conditioner for electrical cabinet
- MPG
- M30 work end indication light
- Full enclosed splash guard
- Central control lubricator
- Operation and maintenance manual
- Leveling bolts and pads
- Internet function
- Spindle heat compensation system
- Screw chip conveyor and cart
- 3 axes ball screw coolant through system
- Two chip augers equipped at the base
Optional Accessories
- 3 axes optical scale
- Oil and lubricant separator
- Oil mist collector
- Oil-mist cooling system
- Auto tooling measurement
- Coolant through spindle
