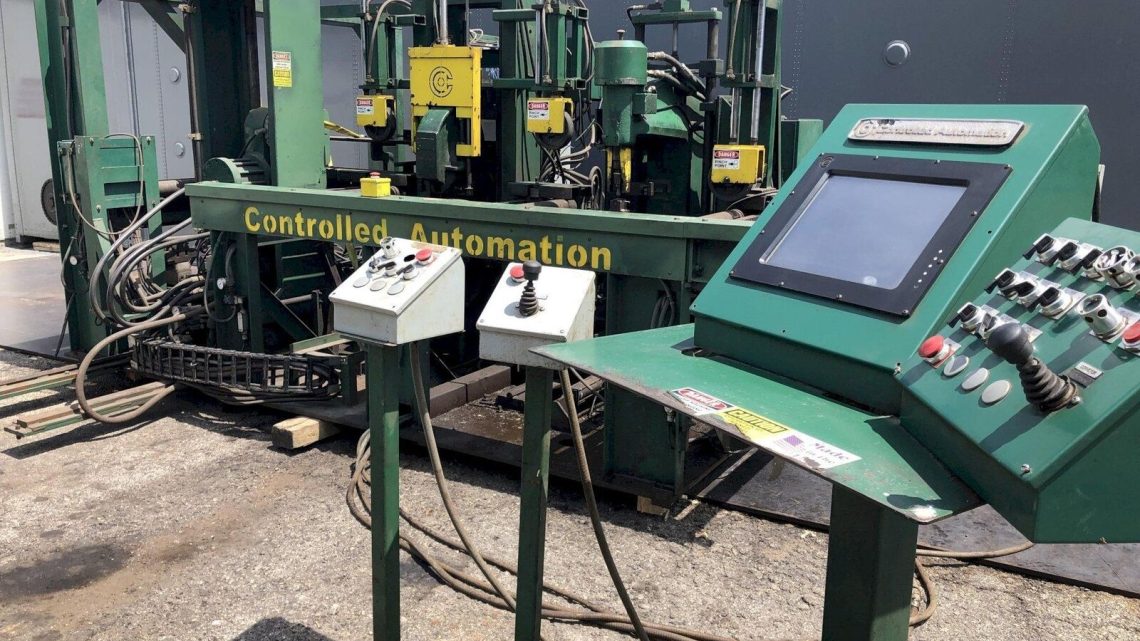

From Inspection to Installation: What to Verify Before Buying a Pre-Owned, Used, Secondhand, Surplus WA WHITNEY Beam Hydraulic Punch Line made in USA

If you are considering buying a used or surplus W.A. Whitney Beam Hydraulic Punch Line (made in the USA) — such as a beam-punching line for structural steel beams — here is a detailed “from inspection to installation” checklist. Use this to thoroughly evaluate the machine, mitigate risks, and plan for a successful installation.

1. Specification & Fit for Your Application

Before proceeding with inspection, ensure the machine’s capabilities align with your intended use.

Identify the exact model and specifications of the machine (tonnage capacity, throat depth, beam size range, punching patterns, automation level). For example, one listing shows a 100 ton capacity beam line for structural beams.
Determine what beam profiles (I-beams, H-beams, channels), widths, flanges, web thicknesses the line is rated for.
Understand the punching performance: how many strokes per minute, how many punches per flange/web, what tooling is used (punch/die sets) and what automation (measuring probe drive, infeed/outfeed conveyors) is included.
Ask: Will this machine handle your typical beam sizes, punching volumes, material grades and throughput demands?
Check the included accessories and tooling: Are the conveyors, automation controls, probe measuring system, tooling change systems, safety equipment present and in good shape?
Review control system: Is the automation system modern or obsolete (e.g., the example mentions a Pentium MMX 233 MHz computer).

If the machine cannot physically or operationally handle your intended beam sizes or punching requirements, it’s a risk.

2. On-Site Inspection of Machine Condition

Assuming capability is acceptable, inspect mechanical, hydraulic, electrical, and control systems in person.

Mechanical / Structural

Inspect the main punching frame and bed: Check for cracks, repair welds, distortion, wear in the guides or tooling mounting surfaces.
Check the ram/punching unit: Is it smooth in travel, no excessive play or binding, does it return properly, are limit switches or position sensors functioning.
Check the tooling setup: Are punches and dies present? Is tooling worn or too inexpensive? Are changeovers simple or complex? Check condition of tooling pockets, die wear, punch alignment. See typical tooling catalog for Whitney.
Inspect conveyors (infeed, outfeed): Are they present, in working condition, properly aligned?
Inspect hydraulic power unit: look for leaks, condition of hoses, oil cleanliness, any overheating signs.
Inspect structural steel handling features: beam supports, clamps, measuring probes, loading/unloading mechanisms.
Inspect safety guards, guarding around moving parts, compliance with local standards.

Hydraulic / Pneumatic / Utilities

Check the hydraulic system: oil level and condition, filtration, pump status, any contamination, maintenance logs.
Verify hydraulic tonnage (press force) is available and that pressure gauges and switches function properly.
- Example: For a Whitney hydraulic press, 250 ton capacity and throat depth 12.5″ is listed.
Check lubrication / moving components are maintained (guides, cylinders).
Check electrical wiring, panel conditions, any modifications, labels, IEC standards.
Confirm air supply (if pneumatic clamps or conveyors), and condition of conveyors/chip collection if relevant.

Control & Automation

Turn on the machine (if possible) and observe startup: any fault codes, unusual noises, vibration, lag in automation cycle.
Check the control software / automation computer: how old is it, is it supported, are the I/O modules and PLCs current? In one listing the automation used Pentium MMX 233 MHz computer, which is likely very old.
Verify measuring probe system (for beam lengths), indexing system, conveyors, and that the automation functions under load.
Check for spare parts for control/automation — old PLCs may be unsupported.

Documentation & Maintenance History

Request and review maintenance logs: major repairs, refurbishments, rebuilds, hours of operation, cycles performed.
Ask for tooling change history: punch/die change frequency, tool life.
Check if the machine has been used heavily or had heavy production duty (which accelerates wear).
Ensure original manuals, wiring diagrams, hydraulic schematics, automation documentation are available.
Verify tooling catalog (Whitney tooling catalog indicates tooling specifications and wear considerations).

Test Operation

If possible, perform a live test using one of your beam profiles and punching program: measure cycle time, quality of hole/punch, alignment, finish, repeatability.
Observe machine behaviour under load: hydraulic pressure stability, tooling performance, beam positioning accuracy.

3. Pre-Installation & Commissioning Planning

Once you have agreed purchase (or are seriously considering), plan the installation, commissioning and integration.

Environment & Foundation

Ensure your facility can accommodate the machine footprint, weight, and layout including infeed/outfeed conveyors and access for beams.
Verify foundation: A large beam punch line may require leveled floor, vibration isolation or anchor bolts.
Check beam loading/unloading path: are there cranes, rollers, conveyors to feed beams in/out?
Confirm utilities: electrical service (voltage, phase, amp capacity), hydraulic oil supply (if remote), air supply (if needed), proper drainage or disposal of scrap.
Ensure environment is appropriate: clean, minimal vibration, easy access for maintenance, adequate lighting.

Transport, Unpacking, Setup

Plan for dismantling at current location, transport to your site, re-assembly. Ensure that heavy removal is handled safely.
Check shipping path: dimensions of machine and conveyors, crane/rigging required.
On arrival: level the machine, align beams feed path, set up conveyors, connect hydraulics/electrics.
Commission hydraulics: fill oil, bleed air, confirm pressures, check ram movement without load first.
Commission conveyors, measuring probes, automation system: ensure perfect alignment of beam path, positioning sensors.

Commissioning

Run no-load cycles: check full travel of punch, conveyors, beam loading/unloading cycle.
Perform load test: feed a beam, execute punching program, inspect results for accuracy (hole position, size, quality), repeatability.
Measure baseline: hole location accuracy, punch finish, cycle time, scrap quality. Record these for future comparison.
Train operators: machine operation, tooling changeover, safety procedures, maintenance routines.
Put in place preventive maintenance plan: hydraulic oil change intervals, filter changes, tooling inspection, conveyor maintenance.

4. Risk Points & Pitfalls to Watch

Age of automation/controls: A line with old computer/PLC may be difficult to maintain or upgrade. As noted, a listing had Pentium MMX 233 MHz computer control.
Machine wear due to heavy duty use: Structural steel beam punching is demanding — repeated high loads can cause frame deformation, tooling wear, hydraulic pump fatigue.
Tooling costs and availability: Punches/dies wear out; ensure you know the cost and lead time of replacement tooling. The Whitney tooling catalog shows specialized tooling.
Hidden installation costs: Foundation, crane/rigging, conveyors, utilities, re-programming automation, relocation cost may be large and overlooked.
Integration into your production line: If your beam sizes or production rates differ, the line may be sub-optimal.
Spare parts availability: For older hydraulic units, controls, conveyors parts may be obsolete or expensive.
Verification of actual capabilities: Some used lines may have reduced capacity due to wear or missing accessories.
Beam handling logistics: Ensure your facility supports beam loading/unloading, scrap removal, safety guarding.
Environment mismatch: If the previous plant environment was ideal (flat floor, low vibration) and yours is not, performance may degrade.

5. Sample Pre-Purchase Checklist

Confirm seller-stated model, serial number, and manufacturing year.
Verify rated capacity (tonnage), throat depth, beam size range (width, flange thickness, web depth) suit your production.
Confirm tooling set: punches, dies, tooling inventory, changeover ease.
Inspect mechanical condition on-site: frame, hydraulic cylinders, conveyors, tooling pockets.
Check hydraulic system: oil condition, leaks, pump hours, maintenance records.
Check control/automation: computer specs, PLC status, software version, I/O modules.
Perform or request test cutting/punching of a representative beam: inspect hole quality, location accuracy, finish.
Review maintenance history, logs, refurbishments, hours of operation.
Inspect documentation: user manual, hydraulic schematic, tooling catalog.
Review installation site requirements: foundation, utilities, beam handling, scrap removal.
Estimate integration & installation costs: transport, rigging, leveling, commissioning, conveyors, training.
Verify spare-parts availability and tooling replacement cost.
Plan for operator training and maintenance routines post-installation.
Confirm live measurement of beam holes aligns with your quality standards and throughput requirements.

6. Installation & Commissioning Timeline

De-installation/transport from seller location and delivery to your site.
Unpacking, positioning machine, leveling and anchoring.
Connecting utilities: electrical, hydraulic, air, conveyors, scrap/chip removal.
Initial dry‐run: verify machine axes, punch ram, conveyors, beam feed path.
Alignment and calibration: adjust beam feed, measuring probe, punch/die alignment, check hole repeatability.
Load test: run actual beams, perform production‐type punches, inspect quality and throughput.
Operator training: system operation, tooling changeover, safety, maintenance.
Go-live: integrate into production line, monitor live performance, adjust as required.
Preventive maintenance schedule implementation, baseline measurements recorded.

7. Summary

Purchasing a used W.A. Whitney Beam Hydraulic Punch Line can be a strong investment for structural fabrication, provided you perform thorough due diligence. Key success factors: ensuring the machine’s rated capacity and tooling match your beam profiles; verifying the mechanical and hydraulic condition; confirming the control/automation is supported; accounting for installation and integration costs; and planning for operation/training.
