Buying a used Bystronic BySprint Fiber 3015 laser cutting machine can be a profitable investment — but only if every stage from inspection to installation is handled professionally. Below is a detailed checklist to help you evaluate the machine’s technical condition, performance, and installation requirements before purchase.

---

1. Technical and Mechanical Inspection

Visual and Structural Examination

• Inspect the machine body for cracks, welding repairs, rust, or deformation that may indicate previous accidents or poor maintenance.
• Check frame alignment, linear guides, and shuttle table movement for smooth operation.
• Verify that the ByVision Cutting control panel and touchscreen interface function correctly.
• Examine the fiber laser source, optics, protective lenses, and mirrors — ensure they are clean, scratch-free, and original Bystronic parts.
• Confirm that the Z-axis lift and pallet exchange system (if dual pallet) operate without noise or vibration.

Technical Data and Compatibility

• Working area: typically 3000 × 1500 mm (BySprint Fiber 3015).
• Laser power: models vary from 4 kW to 6 kW, depending on the year and configuration.
• Cutting capacity: check if actual performance matches catalog values (e.g., up to 20 mm mild steel, 15 mm stainless, 12 mm aluminum).
• Positioning accuracy: approx. ±0.1 mm; repeatability: ±0.05 mm.
• Operating hours: verify total “laser-on” and “machine-on” hours (below 20,000 hours is preferable).
• Component condition: pay special attention to the laser source, optical chain, shuttle table drive, and nozzle changer — ask for replacement records.

Functional Test / Cutting Demonstration

• Run a live cutting test with the seller to evaluate cut quality, edge smoothness, and speed.
• Inspect nozzle condition and type — worn or mismatched nozzles affect beam focus.
• Check focus calibration and optical alignment — a misaligned fiber path can lead to poor results.
• If available, test automation modules such as automatic loading/unloading or shuttle pallet exchange.

Maintenance and Service Records

• Request full service history including filter, lens, or fiber source replacements.
• Confirm the machine was operated in a clean, temperature-controlled environment (not in dusty or humid conditions).
• Ensure all maintenance was done using original Bystronic spare parts.
• If the unit is sold as an official Bystronic Certified Pre-Owned machine, confirm it has passed their multi-point inspection program.

---

2. Purchase Conditions and Logistics

• Machine location: clarify loading, transportation, and installation costs early.
• Dimensions & floor space: typical footprint is approx. 11,000 × 6,050 × 2,565 mm including pallet changer.
• Foundation & vibration: confirm a stable concrete floor with minimal vibration — critical for precision lasers.
• Power & utilities: check total power consumption (~25–30 kW), and availability of chiller, exhaust, and compressed-air systems.
• Shipping & customs: for international transport, ensure CE documentation, export papers, and proper packaging for optical equipment.
• Post-installation calibration: schedule a service engineer to perform beam alignment, level check, and test cuts after setup.

---

3. Installation and Commissioning

• Verify that rigging and lifting procedures are handled by experienced laser technicians.
• Once installed, perform axis alignment, laser beam calibration, and cutting parameter verification.
• Check the cooling system, gas supply lines (O₂, N₂, compressed air), and fume extraction unit for leaks or blockages.
• Update the ByVision software and firmware to the latest compatible version.
• Run trial production parts before final acceptance to confirm full accuracy and reliability.

---

4. Documentation and Safety

• Ensure the seller provides:
  • Original operation manuals and parameter sheets
  • Electrical and pneumatic diagrams
  • CE compliance certificate
  • Software license and dongle (if applicable)
• Verify all safety interlocks, doors, and sensors work properly — including light curtains and emergency stops.

---

Conclusion

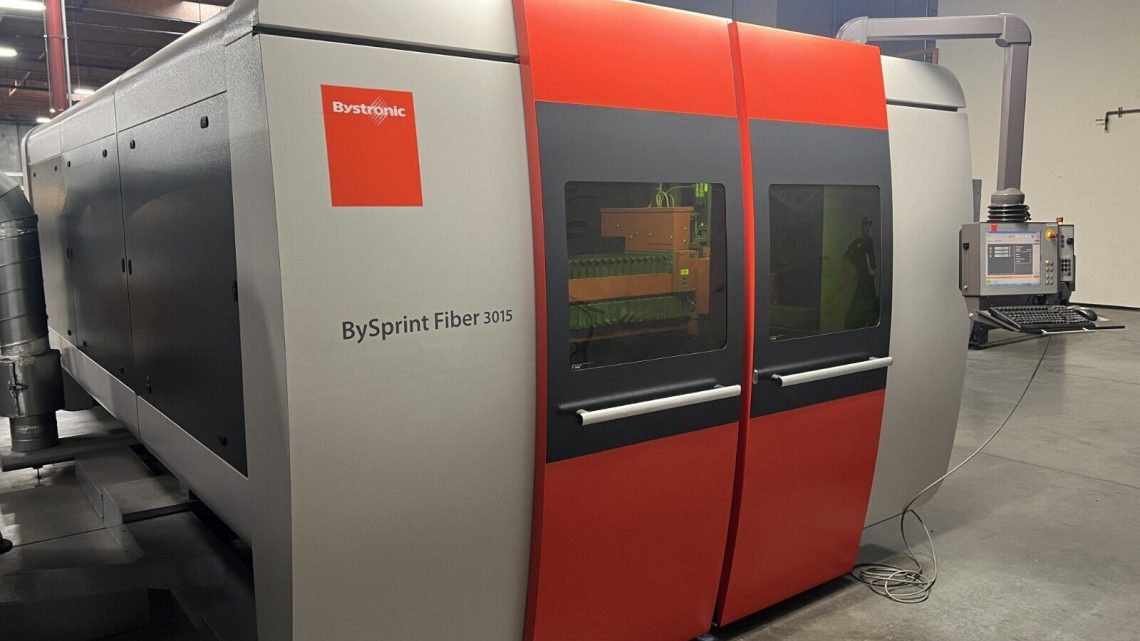

A Bystronic BySprint Fiber 3015 (Made in Switzerland) is a world-class laser cutting system known for precision, efficiency, and reliability.
However, thorough pre-purchase inspection, complete documentation, and professional installation are essential to protect your investment and ensure optimal cutting performance from day one.
