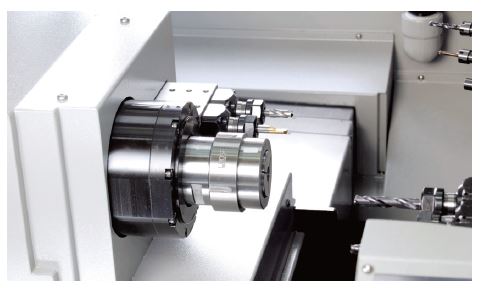

| Hanwha XD32/38 II CNC Swiss-Type Turning Center Specifications |
| CNC Control |
Fanuc 32i-B / Hanwha Fanuc-i |
| Guide Bush Configuration |
H (Guide Bush), N (Non Guide Bush), NH (Convertible Guide Bush), He (Hanwha Fanuc-i with Guide Bush) |
| Machining Capacity |
| Maximum Machining Diameter |
Ø32 / Ø38 mm (Ø1.26″ / Ø1.50″) |
| Z1 Stroke |
H: 320 mm (12.60″)
N: 80 mm (3.15″)
NH: 142 mm (5.59″) (H) / 80 mm (3.15″) (N)
He: 320 mm (12.60″) |
| Main Spindle |
| Maximum Spindle Speed |
6,500 rpm |
| Spindle Motor |
5.5 / 7.5 kW |
| Tooling System |
| OD Turning Tools |
5 Tools (16 mm Square Shank / 0.63″) |
| Front Tool Stations |
5 Tools (ER20M, Ø32 mm) |
| Cross Drilling Tools |
5 Tools (ER16) |
| Cross Drilling Speed |
6,000 rpm |
| Cross Drilling Motor |
2.2 kW |
| Off-Center Drilling (Optional) |
2 × ER16 |
| Modular Type |
2 × ER16 |
| Non-Modular Type |
Gear Driven |
| Off-Center Tool Motor |
1.0 kW @ 6,000 rpm |
| Sub Spindle |
| Maximum Speed |
6,500 rpm |
| Built-in Motor Speed |
6,500 rpm |
| Sub Spindle Motor |
2.2 / 5.5 kW (Built-in) or 1.1 / 3.7 kW (Spindle Motor) |
| Back Tooling |
| Back Tool Stations |
6 × ER16 (4 Fixed + 2 Driven) or 4 × ER16 (2 Fixed + 2 Driven) |
| Back Tool Speed |
6,000 rpm |
| Back Tool Motor |
1.0 kW |
| Machine Specifications |
| Machine Dimensions (L × W × H) |
2,570 × 1,440 × 1,740 mm (101.18″ × 56.69″ × 68.50″) |
| Machine Weight |
3,600 kg (7,937 lbs) |
| Power Requirement |
25 kVA (16.7 kW), VCTF 16SQ × 4C Cable |
| Compressed Air Consumption |
120–150 L/min (4.24–5.30 CFM) |
