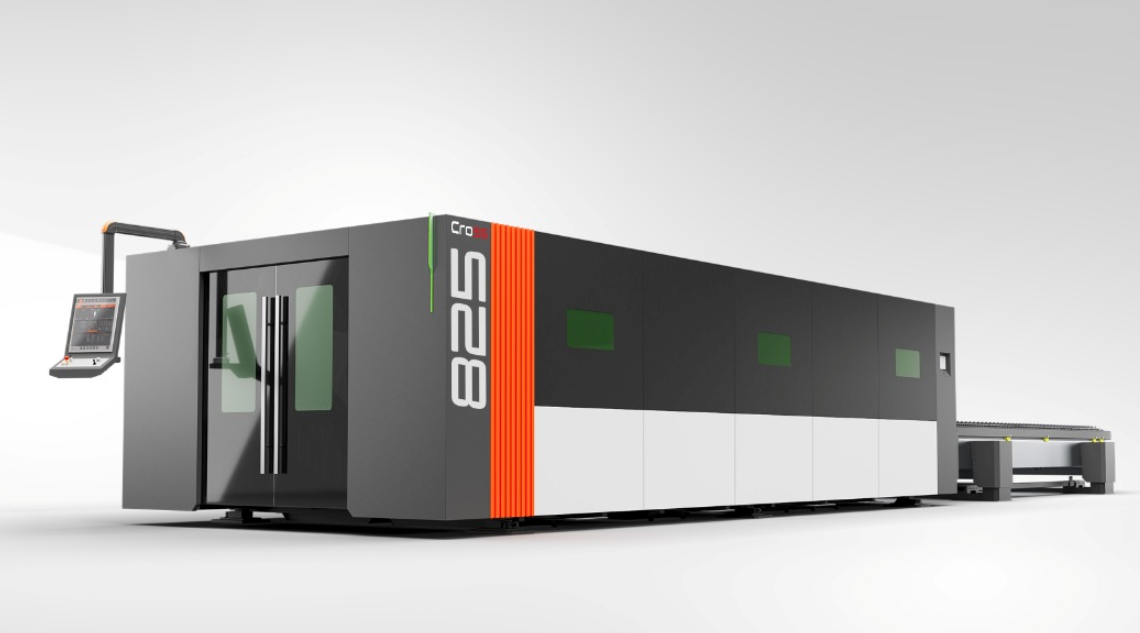

Available now : used NUKON CROSS 825 CNC Fiber Laser Machine – Year 2024 made in Türkiye

Specification	CROSS 315	CROSS 420	CROSS 620	CROSS 825
Sheet Size	1,530 × 3,050 mm (5 × 10 ft)	2,030 × 4,050 mm (6.6 × 13.2 ft)	2,030 × 6,050 mm (6.6 × 19.85 ft)	2,530 × 8,050 mm (8.3 × 26.4 ft)
Available Laser Power	4 / 6 / 8 / 12 / 15 / 20 / 30 kW
X-Axis Travel	3,050 mm (120.08″)	4,050 mm (159.45″)	6,050 mm (238.19″)	8,050 mm (316.93″)
Y-Axis Travel	1,530 mm (60.24″)	2,030 mm (79.92″)	2,030 mm (79.92″)	2,530 mm (99.61″)
Z-Axis Travel	145 mm (5.71″)	145 mm (5.71″)	145 mm (5.71″)	145 mm (5.71″)
Working Table Height	985 mm (38.78″)	985 mm (38.78″)	955 mm (37.60″)	955 mm (37.60″)
Maximum Loading Capacity	2,000 kg (4,409 lbs)	3,500 kg (7,716 lbs)	6,000 kg (13,227 lbs)	7,800 kg (17,196 lbs)
Drive System	Servo Motor with Rack & Pinion
Maximum Acceleration	17 m/s²	15 m/s²	15 m/s²	15 m/s²
Maximum Simultaneous X/Y Speed	140 m/min (459 ft/min)	140 m/min (459 ft/min)	140 m/min (459 ft/min)	140 m/min (459 ft/min)
Positioning Accuracy (Pa)	±0.10 mm (±0.0039″)	±0.10 mm (±0.0039″)	±0.10 mm (±0.0039″)	±0.10 mm (±0.0039″)
Shuttle Table Change Time	27 sec	35 sec	45 sec	65 sec
Controller	21.5″ Multi-Touch Screen CNC Controller
Assist Gas	Oxygen (O₂): 15 bar \| Nitrogen (N₂): 25 bar
Optional Equipment
Air Cutting	✔	✔	✔	✔
Cut Line Technology*	✔	✔	✔	✔
Piercing Sensor & Cut Detection**	✔	✔	✔	✔
Automatic Nozzle Changer	✔	✔	✔	✔
Automatic Loading / Unloading System	✔	✔	—	—
Automatic Loading System	✔	✔	—	—
Linear Motor on X-Axis (Hybrid)	Optional	Optional	Optional	Optional
Pipe & Profile Cutting (Ø30–130 mm)	Optional	Optional	Optional	Optional

Notes:

* Cut Line Technology is available for machines equipped with 4 kW laser power and above.
** Piercing Sensor & Cut Detection is available for machines equipped with 6 kW laser power and above.
Positioning accuracy values are based on VDI/DGQ 3441 and may vary depending on workpiece design, dimensions and operating conditions.
