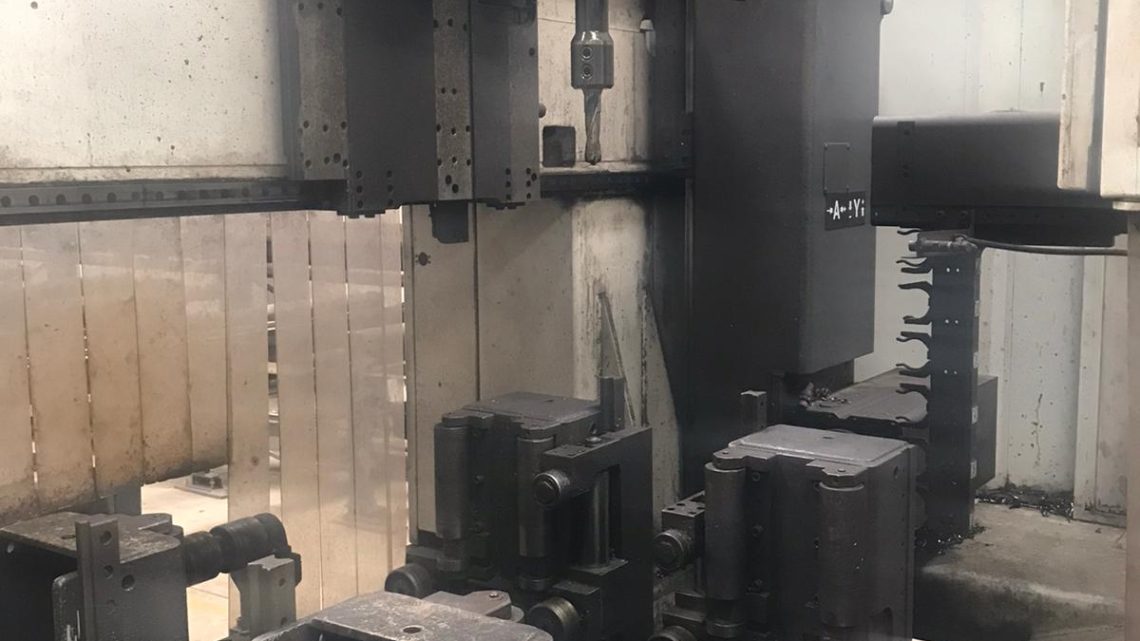

From Inspection to Installation: used FICEP VANGUARD 1103 DDV CNC Drilling Sawing Thermal Cutting Complete Beam Line + FICEP K100L CNC Profile Drilling + Bandsaw Line – Year 2016
FICEP VANGUARD 1103 DDV CNC Drilling Sawing Thermal Cutting Complete Beam Line + FICEP K100L CNC Profile Drilling + Bandsaw Line – Year 2016
| Specification | Minimum | Maximum | Unit |
|---|---|---|---|
| General Technical Specifications | |||
| Machining Operations | Web and flange drilling, milling and scribing of one section only. | ||
| All Profiles | |||
| Web Height | 80 | 1115 | mm |
| Flange Width | 50 | 500 | mm |
| Minimum Transfer Length | 2500 | – | mm |
| Maximum Profile Length | – | 12000 | mm |
| I-Beams (without camber) | |||
| Web Height | 80 | 1115 | mm |
| Flange Width | 42 | 500 | mm |
| UPN Channels (web downwards) | |||
| Web Height | 80 | 1115 | mm |
| Flange Width | 45 | 300 | mm |
| Angles | |||
| Flange Height (equal & unequal angles) | 80 × 80 × 8 | 250 × 250 × 40 | mm |
| Flat Bars | |||
| Width | 100 | 1100 | mm |
| Square Tubes | |||
| Tube Size | 80 × 80 | 500 × 500 | mm |
| Code | Component | Description |
|---|---|---|
| IC | Infeed Conveyor | For bars up to 12 m |
| IC-01 | Powered Rollerway | Automatic powered roller conveyor for material feeding. |
| IC-02/1 | Infeed Transfer Table | Transfer table with catches (12 m – 4 arms – 4500 kg transferable weight). |
| WU | Working Units | Main machining section. |
| WU-01 | Horizontal Drill Head | Monospindle horizontal drill head (No. 2). |
| WU-02 | Vertical Drill Head | Monospindle vertical drill head. |
| WU-03 | Hydraulic Double Jaw Vice | Hydraulic double jaw vice assembly. |
| WU-04 | Marking Unit | Marking unit with 36 positions, model MKT 36 N. |
| WU-05 | Marking Characters | 1 set of marking characters included. |
| WU-06 | Automatic Tool Changer | Tool change system with 6 positions. |
| WU-12 | Small Profile Device | Device for processing small profiles (minimum 50 × 50 mm). |
| OC | Outfeed Conveyor | For bars up to 12 m. |
| OC-01 | Carriage Supporting Structure | Support structure for carriage. |
| OC-02 | Carriage | Automatic discharge carriage. |
| OC-03 | Idle Rollerway | Idle roller conveyor. |
| HY | Hydraulic & Pneumatic System | Hydraulic and pneumatic equipment. |
| HY-01 | Hydraulic Power Pack | Hydraulic power unit. |
| HY-02 | Pneumatic System | Complete pneumatic system. |
| EL | Electrical System | Main electrical equipment. |
| EL-01 | Electrical Distribution | On-board distribution system. |
| EL-02 | Electrical Cabinet | Main electrical cabinet. |
| CN | CNC Control | FICEP PEGASO control unit. |
| OCN-05 | Electrical Equipment | Conditioning for electrical equipment. |
| PA | Painting | Standard painting. |
| TD | Documentation | Technical documentation supplied. |
| TR | Training | Training at Ficep S.p.A. (Travel, accommodation and living expenses excluded). |
| CO | Commissioning | Machine commissioning (Travel, accommodation and living expenses excluded). |
FICEP VANGUARD 1103 DDV CNC Drilling, Bandsaw & Thermal Cutting Complete Beam Processing Line + FICEP K100L CNC Profile Drilling Line – Year 2016
| Specification | Value |
|---|---|
| Manufacturer | FICEP |
| Model | VANGUARD 1103 DDV + K100L |
| Year of Manufacture | 2016 |
| Machine Type | CNC Beam Drilling, Bandsaw & Thermal Cutting Processing Line |
| Technical Condition | Good |
| CNC Control | FICEP PEGASO CNC Control |
| Application | Automatic drilling, milling, scribing, marking, sawing and thermal cutting of structural steel profiles. |
| Maximum Drilling Diameter | 40 mm |
| Spindle Speed | 5,000 rpm |
| Spindle Taper | ISO 40 |
| Spindle Motor Power | 17 kW |
| Number of Drill Heads | 3 CNC Drill Heads |
| Automatic Tool Changer | 6 Tools per Spindle |
| CNC Axes | 7 CNC Axes (+2 on Bandsaw Line) |
| Marking Unit | MKT 36N with 36 Character Positions |
| Scribing | 4-Side CNC Scribing Capability |
| Milling | Supported |
| Thermal Cutting | Integrated Thermal Cutting Line |
| Band Saw | Automatic CNC Bandsaw |
| Band Saw Motor | 20 HP (≈15 kW) |
| Material Handling | Automatic Infeed & Outfeed Roller Conveyors |
| Maximum Material Length | 12,000 mm |
| Minimum Transfer Length | 2,500 mm |
| Processable Profile Types | I-Beams, H-Beams, UPN Channels, Angles, Flat Bars, Square Tubes |
| Web Height Capacity | 80 – 1,115 mm |
| Flange Width Capacity | 50 – 500 mm |
| I-Beam Flange Width | 42 – 500 mm |
| UPN Channel Flange Width | 45 – 300 mm |
| Angle Capacity | 80 × 80 × 8 mm – 250 × 250 × 40 mm |
| Flat Bar Width | 100 – 1,100 mm |
| Square Tube Capacity | 80 × 80 mm – 500 × 500 mm |
| Hydraulic System | Hydraulic Power Pack |
| Pneumatic System | Included |
| Electrical Cabinet | Integrated On-board Electrical Cabinet |
| Power Supply | Three Phase |
