From Inspection to Installation: used EVG Entwicklungs- und Verwertungs-Gesellschaft m.b.H. QC76/144-ZL/PV Wire Mesh Welding Line + EVG Entwicklungs- und Verwertungs-Gesellschaft m.b.H. DRE16 Wire Straightening Machine – Year 2020 made in Austria

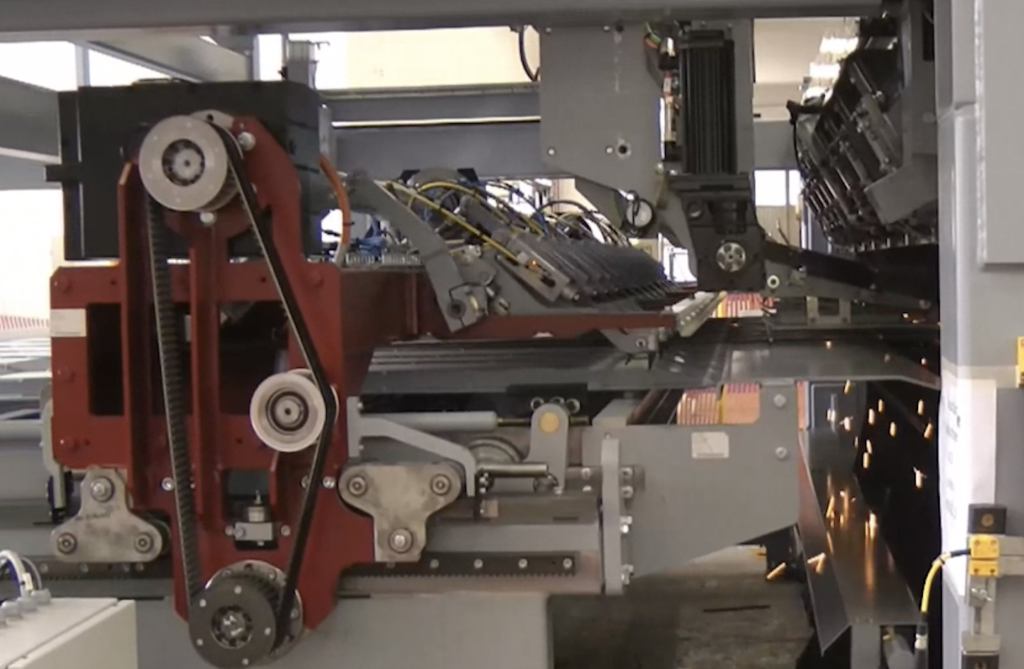

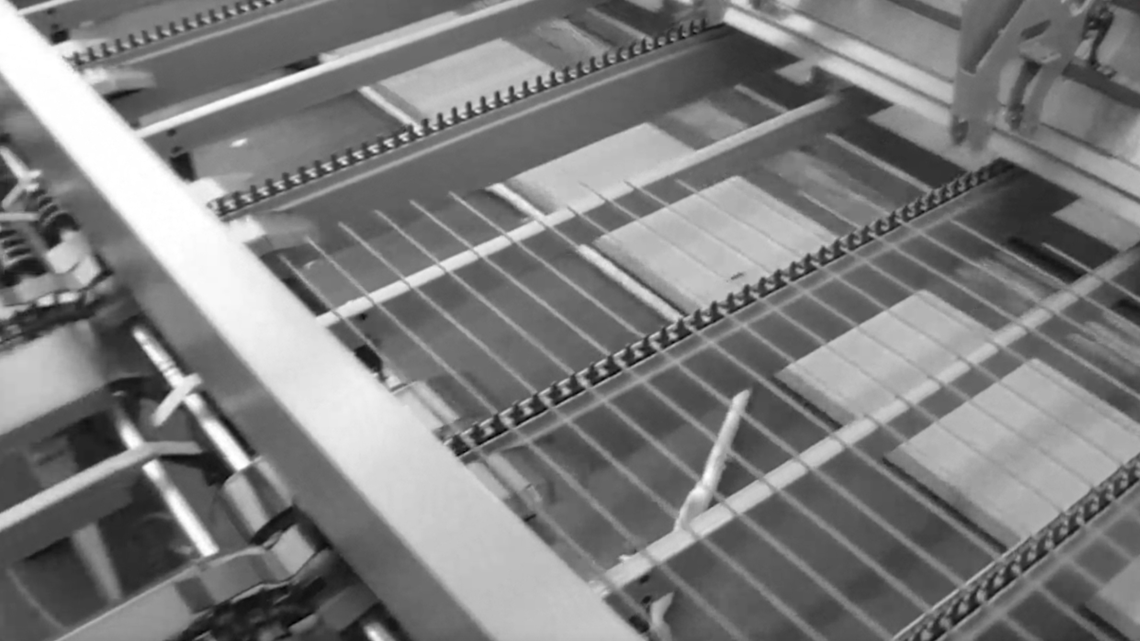

EVG QC76/144-ZL/PV Wire Mesh Welding Line + EVG DRE16 Wire Straightening Machine – Year 2020
| Specification | Metric | Imperial |
|---|---|---|
| Manufacturer | EVG Entwicklungs- und Verwertungs-Gesellschaft m.b.H. | EVG Entwicklungs- und Verwertungs-Gesellschaft m.b.H. |
| Machines Included | QC76/144-ZL/PV Wire Mesh Welding Line + DRE16 Wire Straightening Machine | QC76/144-ZL/PV Wire Mesh Welding Line + DRE16 Wire Straightening Machine |
| Year | 2020 | 2020 |
| Power Supply | 380 V, 60 Hz, 3-Phase | 380 V, 60 Hz, 3-Phase |
| 1. EVG QC76/144-ZL/PV Wire Mesh Welding Line | ||
| Working Width | 3,700 mm | 145.7 in |
| Maximum Welding Width | 3,600 mm | 141.7 in |
| Sheet Length Range | 1,500 – 12,000 mm | 59.1 – 472.4 in |
| Line Wire Diameter | 6 – 25 mm | 0.236 – 0.984 in |
| Cross Wire Diameter | 6 – 16 mm | 0.236 – 0.630 in |
| Maximum Welding Power | 2,200 kVA | 2,200 kVA |
| Driving Power | 120 kW | 161 HP |
| Maximum Working Speed | 90 Cross Wires/min | 90 Cross Wires/min |
| Line Wire Spacing | 75 – 1,000 mm (Stepless) | 2.95 – 39.37 in (Stepless) |
| Cross Wire Spacing | 50 – 2,000 mm (Stepless) | 1.97 – 78.74 in (Stepless) |
| Maximum Number of Line Wires | 33 | 33 |
| Input Material | Pre-cut & Straightened Cold-Formed / Hot-Rolled Wire | Pre-cut & Straightened Cold-Formed / Hot-Rolled Wire |
| Cascade Welding System | Automatic | Automatic |
| 2. EVG DRE16 Wire Straightening Machine | ||
| Wire Diameter Range | 8 – 16 mm | 0.315 – 0.630 in |
| Maximum Feed Speed | 160 m/min | 525 ft/min |
| Maximum Wire Strength | 600 N/mm² | 87,023 psi |
| Driving Power | 85 kW | 114 HP |
| Machine Color | RAL 7001 Grey / RAL 3011 Red | RAL 7001 Grey / RAL 3011 Red |
| Electrical Standard | EN 60204-1 / IEC 60364-4-41 TN-C | EN 60204-1 / IEC 60364-4-41 TN-C |
| Features | ||
| Applications | Structural Mesh, Engineered Fabric, Industrial Reinforcement Mesh | Structural Mesh, Engineered Fabric, Industrial Reinforcement Mesh |
| Production Flexibility | Optimized for Small & Large Batch Production | Optimized for Small & Large Batch Production |
| Machine Condition | Can Be Inspected Under Power in Factory | Can Be Inspected Under Power in Factory |
