DURMA HD-F / HD-FL Fiber Laser Cutting Machine Specifications

Specification	3015	4020	6020	8020	12020
X-Axis Travel	3,060 mm (120.47 in)	4,100 mm (161.42 in)	6,150 mm (242.13 in)	8,200 mm (322.83 in)	12,200 mm (480.31 in)
Y-Axis Travel	1,530 mm (60.24 in)	2,100 mm (82.68 in)	2,100 mm (82.68 in)	2,100 mm (82.68 in)	2,100 mm (82.68 in)
Z-Axis Travel	160 mm (6.30 in)	185 mm (7.28 in)	185 mm (7.28 in)	185 mm (7.28 in)	185 mm (7.28 in)
Maximum Sheet Size	3,048 × 1,524 mm (120 × 60 in)	4,064 × 2,032 mm (160 × 80 in)	6,096 × 2,032 mm (240 × 80 in)	8,128 × 2,032 mm (320 × 80 in)	12,192 × 2,032 mm (480 × 80 in)
Maximum Sheet Weight	235 kg/m² (48.1 lb/ft²)	235 kg/m² (48.1 lb/ft²)	235 kg/m² (48.1 lb/ft²)	235 kg/m² (48.1 lb/ft²)	235 kg/m² (48.1 lb/ft²)

Rack & Pinion HD-F

Specification	Metric	Imperial
X-Axis Rapid Traverse	120 m/min	394 ft/min
Y-Axis Rapid Traverse	120 m/min	394 ft/min
Synchronous Speed	170 m/min	558 ft/min
Acceleration	28 m/s²	91.9 ft/s²
Positional Accuracy	±0.05 mm	±0.0020 in
Repeatability	±0.05 mm	±0.0020 in

Linear System HD-FL

Specification	Metric	Imperial
X-Axis Rapid Traverse	160 m/min	525 ft/min
Y-Axis Rapid Traverse	160 m/min	525 ft/min
Synchronous Speed	226 m/min	741 ft/min
Acceleration	35 m/s²	114.8 ft/s²
Positional Accuracy	±0.03 mm	±0.0012 in
Repeatability	±0.03 mm	±0.0012 in

Description

The DURMA HD-F / HD-FL Fiber Laser Series is designed for high-speed, high-precision sheet metal cutting across a wide range of sheet sizes. Available in working areas from 3,048 × 1,524 mm (120 × 60 in) up to 12,192 × 2,032 mm (480 × 80 in), the series combines robust machine construction with advanced motion systems to maximize productivity. The HD-F models utilize a precision Rack & Pinion drive system, while the HD-FL models feature a high-performance Linear Motor System capable of speeds up to 226 m/min (741 ft/min), acceleration up to 35 m/s², and positioning accuracy of ±0.03 mm (±0.0012 in). These machines are ideal for demanding industrial applications requiring exceptional cutting quality, speed, and repeatability.

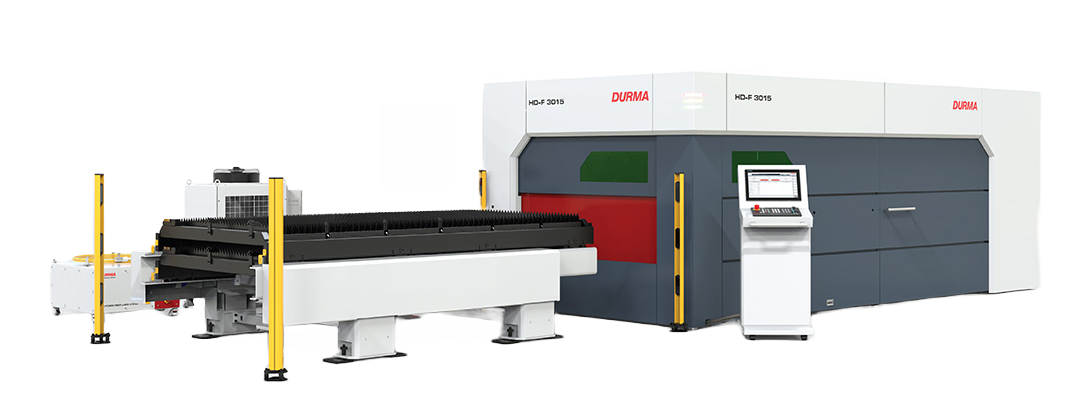

Durma HD-F 12020 IPG 4 kW CNC Fiber Laser Cutting Machine 2 × 12 Meters Dual Shuttle Table

Specification	Metric	Imperial
Manufacturer	Durma	Durma
Model	HD-F 12020	HD-F 12020
Machine Type	CNC Fiber Laser Cutting Machine	CNC Fiber Laser Cutting Machine
Laser Source	IPG Fiber Resonator	IPG Fiber Resonator
Laser Power	4 kW	5.36 HP (Optical Output)
Working Area	12,000 × 2,000 mm	472.44 × 78.74 in
Dual Shuttle Table	2 × 12,000 mm	2 × 472.44 in
Maximum Sheet Thickness	30 mm	1.18 in
Cutting Thickness Range	1 – 30 mm	0.039 – 1.18 in
Laser Cutting Head	New Generation Precitec ProCutter	New Generation Precitec ProCutter
Cutting Materials	Mild Steel (Black Steel), HRP, Cold Rolled Steel (CR/DKP), Galvanized Steel, Stainless Steel, Aluminum	Mild Steel (Black Steel), HRP, Cold Rolled Steel (CR/DKP), Galvanized Steel, Stainless Steel, Aluminum
Laser Source Status	IPG Modules Renewed 1 Year Ago	IPG Modules Renewed 1 Year Ago
Laser Head Status	ProCutter Head Installed by Durmazlar Service 2 Years Ago	ProCutter Head Installed by Durmazlar Service 2 Years Ago

Machine Features

• IPG Fiber Laser Resonator
• 4 kW Laser Power
• 12,000 × 2,000 mm Working Area
• 2 × 12 m Automatic Dual Shuttle Table
• New Generation Precitec ProCutter Cutting Head
• IPG Resonator Modules Renewed One Year Ago
• Laser Head Replaced by Official Durmazlar Service Two Years Ago
• Suitable for High-Volume Industrial Sheet Processing

Description

The Durma HD-F 12020 CNC Fiber Laser Cutting Machine is equipped with a reliable 4 kW IPG fiber laser source and a 12,000 × 2,000 mm (472.44 × 78.74 in) working area featuring a 2 × 12-meter automatic dual shuttle table for continuous production. The machine is capable of processing sheet thicknesses from 1 mm to 30 mm (0.039–1.18 in). It is suitable for cutting a wide variety of materials, including cold rolled steel (CR/DKP), hot rolled pickled steel (HRP), mild steel, galvanized steel, stainless steel, and aluminum. The machine is fitted with a new-generation Precitec ProCutter laser head, installed by the official Durmazlar service two years ago, while the IPG resonator modules were renewed one year ago, ensuring reliable cutting performance and reduced maintenance costs.
