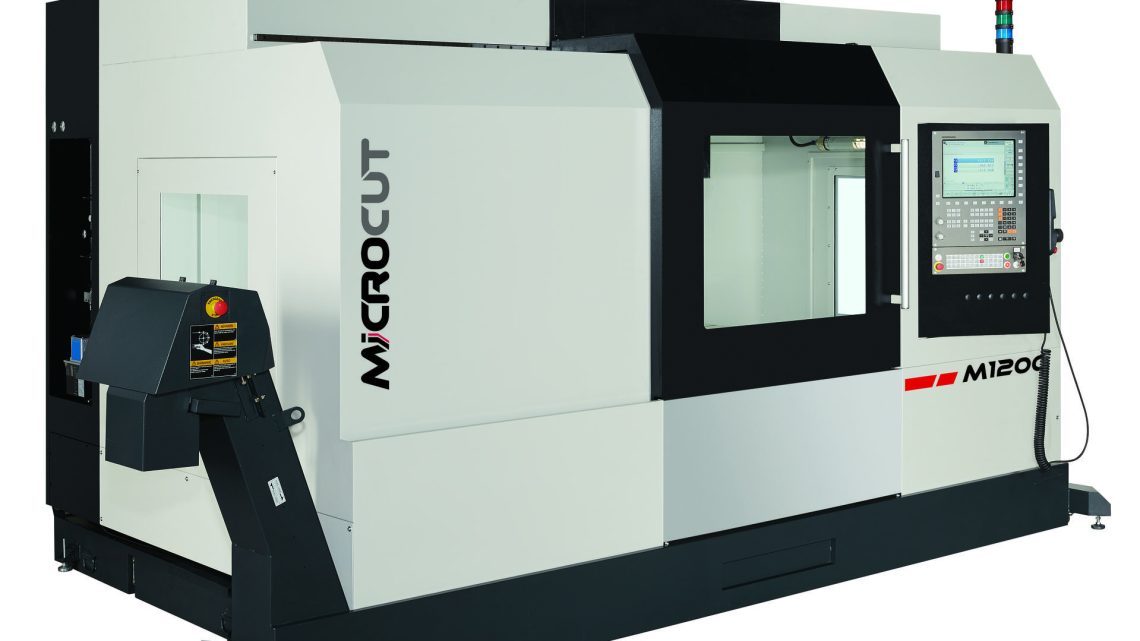

Available now : used Microcut M1200 CNC Vertical Machining Center – Year 2022 made in Taiwan
| Microcut M1200 CNC Vertical Machining Center – Year 2022 | |
|---|---|
| Manufacturer | Microcut |
| Model | M1200 CNC Vertical Machining Center |
| Year | 2022 |
| Working Capacity | |
| Table Size | 1,400 × 710 mm (55.12″ × 27.95″) |
| Maximum Table Load | 1,000 kg (2,205 lbs) |
| X-Axis Travel | 1,200 mm (47.24″) |
| Y-Axis Travel | 730 mm (28.74″) |
| Z-Axis Travel | 650 mm (25.59″) |
| Spindle | |
| Standard Direct Drive Spindle Speed | 12,000 rpm |
| Optional Built-in Spindle Speed | 15,000 rpm |
| Additional Direct Drive Spindle Option | 10,000 rpm |
| Spindle Taper | BBT40 / ISO40 |
| Feed Rates & Accuracy | |
| Rapid Traverse (X / Y / Z) | 30 / 30 / 30 m/min (1,181 ipm) |
| Guideway Type | 45 mm Linear Roller Guideways |
| Positioning Accuracy | ±0.010 mm (±0.00039″) |
| Repeatability | ±0.010 mm (±0.00039″) |
| Automatic Tool Changer (ATC) | |
| ATC Type | Arm Type |
| Tool Capacity | 24 Tools |
| Tool Holder | BT40 / CAT40 / DIN40 |
| Maximum Tool Diameter | Ø75 mm (2.95″) |
| Maximum Tool Length | 300 mm (11.81″) |
| Maximum Tool Weight | 7 kg (15.4 lbs) |
| Machine Dimensions | |
| Machine Dimensions (L × W × H) | 4,600 × 2,620 × 3,050 mm (181.10″ × 103.15″ × 120.08″) |
| Machine Weight | 8,200 kg (18,078 lbs) |
| Standard Equipment | |
|
|
