From Inspection to Installation: OPS INGERSOLL High Speed EAGLE V5 CNC Milling machine with MultiChange Automation Solution – Year 2025

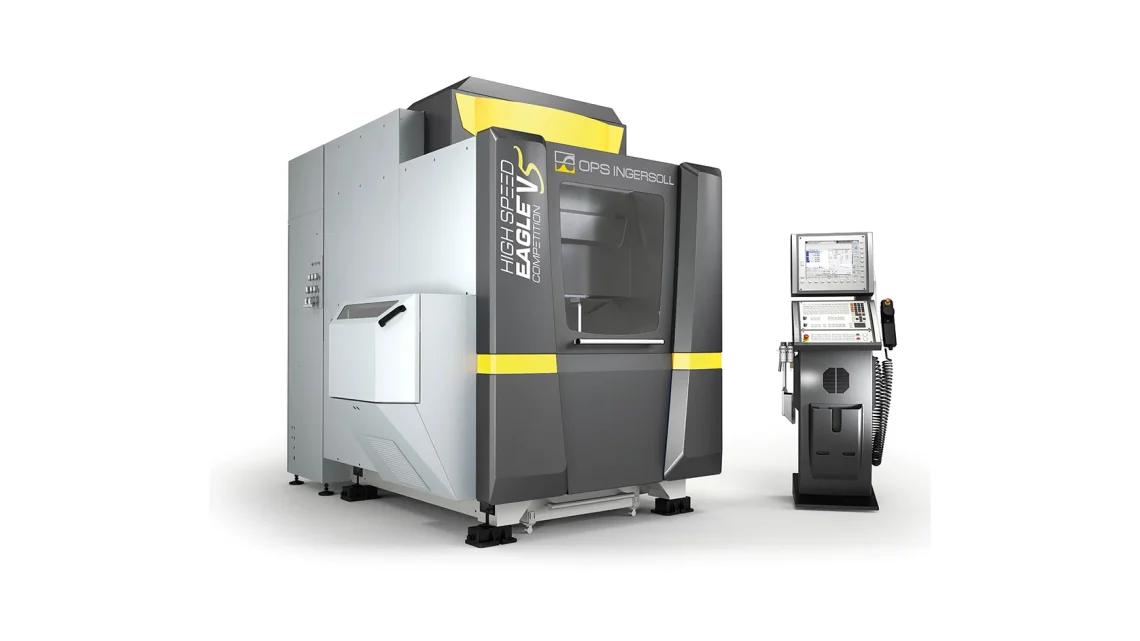

OPS INGERSOLL High Speed EAGLE V5 CNC Milling machine with MultiChange automation solution – Year 2025
| General Information | |
|---|---|
| Manufacturer | OPS INGERSOLL |
| Model | EAGLE V5 Precision-Line |
| Machine Type | High-Speed Precision CNC Milling Machine |
| Year of Manufacture | 2025 |
| Machine Number | contact to us |
| Condition | Used / Production Ready |
| Automation System | MultiChange Automation Solution |
| Axis Travels | |
| X-Axis Travel | 550 mm (21.65″) |
| Y-Axis Travel | 400 mm (15.75″) |
| Z-Axis Travel | 400 mm (15.75″) |
| Table Configuration | |
| Table Type | Swivel Rotary Table with Torque Drives |
| Spindle Specifications | |
| Spindle Type | HF Spindle HSK-E40 with DDF |
| Spindle Manufacturer | Fischer |
| Spindle Speed | 1 – 42,000 RPM |
| Spindle Power | 15 kW (20.1 HP) |
| Spindle Torque (S6 60%) | 6.7 Nm |
| Tool Magazine | |
| Tool Magazine Capacity | 100 Positions |
| Control System | |
| CNC Control | HEIDENHAIN |
| Machine Weight | |
| Total Weight | 8500 kg (18,739 lbs) |
| Included Exclusive Accessories | |
| Erowa ITS 148 Pallets | 20 Pieces Type G with Clamping Pins for Automation |
| HSK E40 Shrink Fit Holders d3 | 13 Pieces by Haimer |
| HSK E40 Shrink Fit Holders d4 | 28 Pieces by Haimer |
| HSK E40 Shrink Fit Holders d5 | 14 Pieces by Haimer |
| Operational Information | |
| Production Status | Machine was in production |
| Current Status | Operational and under power |
| Region Availability | Contact to us |
