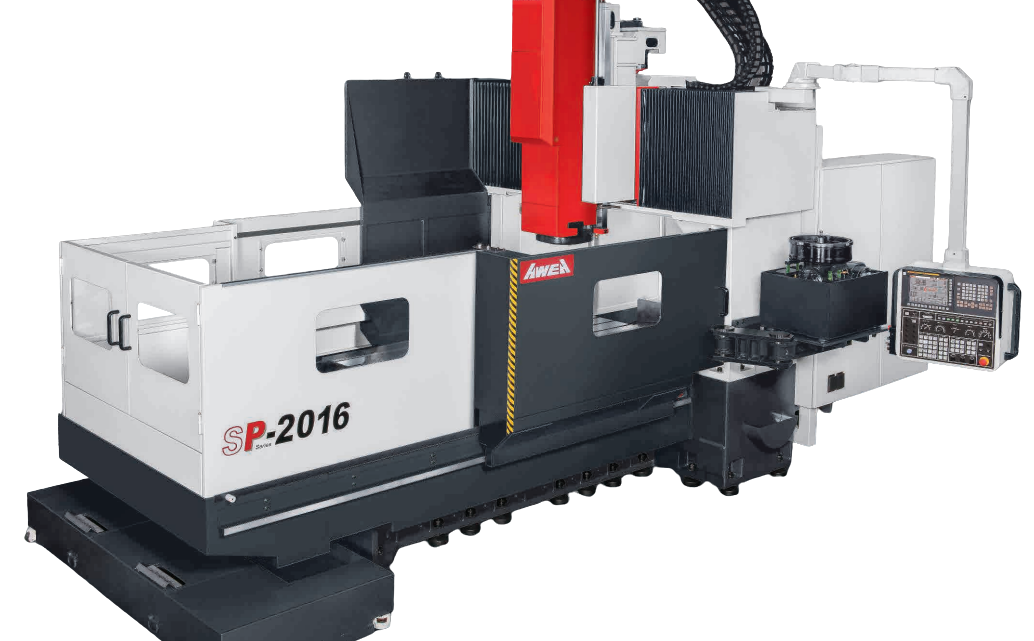

AWEA SP-2016 CNC Bridge Type Double Column Vertical Machining Center – Year 2010

General Information
Specification	Metric	Imperial	Description
Manufacturer	AWEA	AWEA	Machine manufacturer
Model	SP-2016	SP-2016	CNC Bridge Type Double Column Vertical Machining Center
Year of Manufacture	2010	2010	Year built
Machine Type	Double Column Bridge Type Machining Center	Gantry Type Vertical Machining Center	Heavy-duty bridge type machining center
Axis Travels
X-Axis Travel	2,100 mm	82.68 in	Longitudinal travel
Y-Axis Travel	1,600 mm	62.99 in	Cross rail travel
Z-Axis Travel	760 mm	29.92 in	Vertical spindle travel
Distance from Spindle Nose to Table Top	200 – 960 mm	7.87 – 37.79 in	Spindle nose working range
Distance Between Columns	1,700 mm	66.92 in	Bridge opening width
Table Specifications
Table Size (X Direction)	2,310 mm	90.94 in	Table longitudinal dimension
Table Size (Y Direction)	1,500 mm	59.05 in	Table transverse dimension
Maximum Table Load Capacity	8,000 kg	17,637 lbs	Maximum workpiece weight capacity
Spindle Specifications
Spindle Taper	BT50 / DIN50	CAT50 Optional	Main spindle tooling interface
Spindle Motor Power (Continuous)	22 kW	30 hp	Continuous spindle motor output
Spindle Motor Power (30 Min.)	26 kW	35 hp	30-minute spindle overload rating
Spindle Speed	6,000 rpm	6,000 rpm	Maximum spindle speed
Feed Rates
X-Axis Rapid Feed Rate	20,000 mm/min	787 ipm	Rapid traverse speed
Y / Z Axis Rapid Feed Rate	20,000 / 15,000 mm/min	787 / 590 ipm	Rapid traverse speeds
Maximum Cutting Feed Rate	10,000 mm/min	393 ipm	Maximum programmable cutting feed
Tool Magazine
Tool Magazine Capacity	32 Tools	32 Tools	Automatic tool changer capacity
Optional Tool Magazine Capacities	24 / 40 / 60 Tools	24 / 40 / 60 Tools	Optional ATC configurations
Maximum Tool Diameter	125 / 215 mm	4.92 / 8.46 in	Maximum tool diameter capacity
Maximum Tool Length	400 mm	15.74 in	Maximum tool length from gauge line
Maximum Tool Weight	20 kg	44 lbs	Maximum tool weight capacity
Accuracy
Positioning Accuracy (JIS B 6338)	±0.015 mm / Full Travel	±0.00059 in / Full Travel	Machine positioning accuracy
Positioning Accuracy (VDI 3441)	P ≤ 0.020 mm / Full Travel	P ≤ 0.00079 in / Full Travel	VDI positioning accuracy standard
Repeatability (JIS B 6338)	±0.003 mm	±0.00012 in	Machine repeatability accuracy
Repeatability (VDI 3441)	Ps ≤ 0.020 mm	Ps ≤ 0.00079 in	VDI repeatability standard
General Specifications
Power Requirement	220 ± 10%	220 ± 10%	Electrical requirement
Pneumatic Pressure Requirement	5 – 8 kg/cm²	71 – 114 psi	Compressed air requirement
Hydraulic Tank Capacity	120 liters	31.7 gallons	Hydraulic oil tank capacity
Lubrication Oil Tank Capacity	6 liters	1.58 gallons	Lubrication oil reservoir capacity
Coolant Tank Capacity	420 liters	111 gallons	Coolant tank with 2 hp pump
Machine Weight	19,000 kg	41,887 lbs	Approximate machine weight
Standard Accessories
Spindle Cooling System	Included	Included	Spindle thermal control system
Centralized Automatic Lubricating System	Included	Included	Automatic lubrication unit
Fully Enclosed Splash Guard	Included	Included	Machine enclosure without roof
Coolant System with Pump & Tank	Included	Included	Coolant delivery system
Twin Screw Type Chip Auger	Included	Included	Chip evacuation system
Caterpillar Type Chip Conveyor & Bucket	Included	Included	Chip conveyor system
Foundation Bolt Kit	Included	Included	Installation accessories
Tool Box	Included	Included	Machine maintenance tool kit
Alarm Light	Included	Included	Status warning light
Water Gun	Included	Included	Cleaning accessory
Automatic Power-Off System	Included	Included	Automatic machine shutdown feature
32 Tool Magazine	Included	Included	Standard ATC configuration
Optional Accessories
4,000 rpm Gear Spindle	Optional	Optional	Heavy-duty geared spindle option
8,000 / 10,000 / 12,000 rpm Direct-Driven Spindle	Optional	Optional	High-speed spindle options
6,000 / 8,000 rpm Built-In Motorized Spindle	Optional	Optional	Integrated spindle motor options
Z-Axis Extension	1000 mm	39.37 in	Extended Z-axis travel option
Column Riser	200 / 300 / 400 / 500 mm	7.87 / 11.81 / 15.74 / 19.68 in	Column height extension options
Manual Attachment Head	35° / 90° Extension	35° / 90° Extension	Manual angle milling heads
Universal Head Attachment	Optional	Optional	Universal milling head option
40 / 60 / 90 / 120 Tool Magazine	Optional	Optional	Larger ATC capacities
X / Y / Z Axes Optical Linear Scale (HEIDENHAIN)	Optional	Optional	High-precision linear feedback system
Spindle Thermal Compensation	Optional	Optional	Thermal growth compensation system
Coolant Through Tool Adapter	Optional	Optional	Through-tool coolant interface
Coolant Through Spindle (Form A)	Optional	Optional	High-pressure spindle coolant option
Automatic Tool Length Measurement	Optional	Optional	Tool measuring system
Automatic Workpiece Measurement	Optional	Optional	Part probing system
CNC Rotary Table	Optional	Optional	Rotary table attachment
Oil Skimmer	Optional	Optional	Coolant oil separation system
Oil Mist Cooling System	Optional	Optional	Oil mist lubrication/cooling system

Approximately 200 BT50 tool holders will be included with the machine. In addition to the standard 3-axis 6,000 RPM configuration, the machine is equipped with a 90-degree angle head, rotary table/dividing unit, and 40 bar through-spindle coolant system. Approximately 200 BT50 tool holders are included in the sale.

AWEA SP-2016 CNC Bridge Type Vertical Machining Center

General Specifications
Specification	Metric	Imperial	Description
Machine Type	Bridge Type CNC Vertical Machining Center	Double Column Gantry Type	Heavy-duty machining center for large workpieces
Structure	High Rigidity Bridge Construction	High Rigidity Bridge Construction	Designed for heavy-duty and precision machining
Axis Travels
X-Axis Travel	2,100 mm	82.67 in	Longitudinal travel
Y-Axis Travel	1,600 mm	62.99 in	Cross travel
Z-Axis Travel	760 mm	29.92 in	Vertical travel
Optional Z-Axis Travel	800 mm	31.49 in	Available on some configurations
Table Specifications
Table Size	2,310 x 1,500 mm	90.94 x 59.05 in	Machine table dimensions
Maximum Table Load Capacity	8,000 kg	17,637 lbs	Maximum workpiece weight capacity
Spindle Specifications
Spindle Speed	6,000 rpm	6,000 rpm	Standard spindle speed
Optional High-Speed Spindle	8,000 rpm	8,000 rpm	Optional spindle speed upgrade
Spindle Taper	BT50 / ISO50	BT50 / ISO50	Heavy-duty spindle taper system
Spindle Motor Power	26 kW	35 hp	Approximate spindle motor output
40 Bar Through-Spindle Coolant	Installed	Installed	High-pressure through-spindle coolant system
Tooling & Magazine
Tool Magazine Capacity	32 Tools	32 Tools	Standard automatic tool changer capacity
Optional Tool Capacity	40 / 60 Tools	40 / 60 Tools	Optional larger magazine configurations
Maximum Tool Diameter	215 mm	8.46 in	Maximum tool diameter capacity
BT50 Tool Holders Included	Approximately 200 Pieces	Approximately 200 Pieces	Large tooling package included with machine
Feed Rates
Rapid Traverse (X-Axis)	20,000 mm/min	787 ipm	Rapid feed rate
Rapid Traverse (Y/Z-Axis)	15,000 mm/min	590 ipm	Rapid feed rates
Control System
CNC Control	Fanuc 0i-MF Plus	Fanuc 0i-MF Plus	Advanced Fanuc CNC control system
Additional Equipment
90 Degree Angle Head	Included	Included	Angular milling head attachment
Rotary Table / Dividing Unit	Included	Included	Additional rotary machining capability
