From Factory Floor to Your Workshop: Evaluating a Pre-Owned, Used, Secondhand, Surplus CNC Machine Before Purchase Heller FP 4000 CNC 5-Axis Horizontal Machining Center with 2 Pallets made in Germany

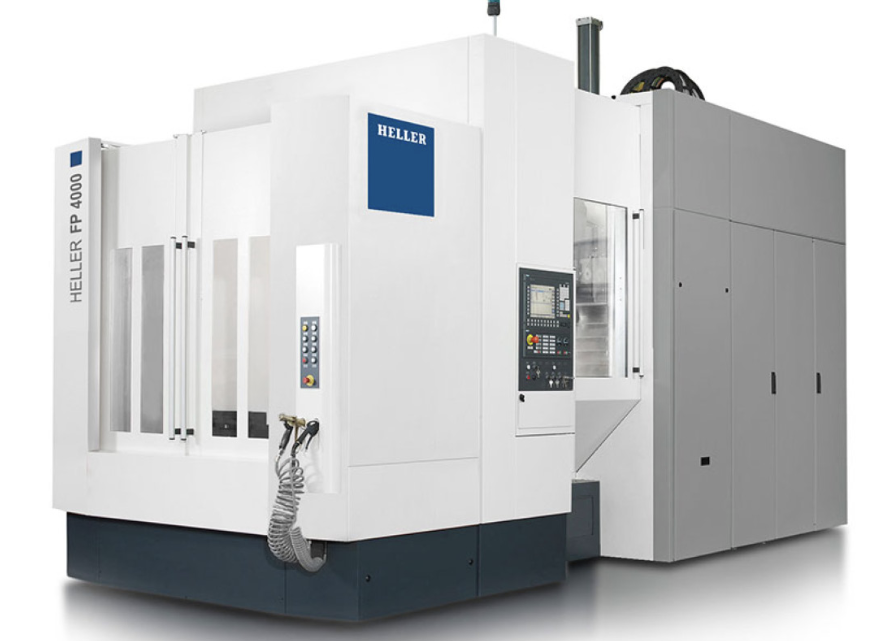

The Heller FP 4000 is a high-performance German-built 5-axis horizontal machining center designed for continuous production, aerospace-grade precision, and heavy-duty cutting applications. It belongs to HELLER’s F-series, known for combining rigidity, automation capability, and long-term reliability in industrial environments.
Technical Specifications (Verified Industrial Data)
Machine Core
- Machine Type: CNC 5-Axis Horizontal Machining Center
- Origin: Germany
- Control: Siemens (typically 840D SL architecture)
- Pallet System: 2 pallets (expandable automation possible)
- Tool Magazine: Up to 160 positions (configurable up to 409)
Axis Travels
- X-Axis: 800 mm (31.5″)
- Y-Axis: 800 mm (31.5″)
- Z-Axis: 1000–1045 mm (39.3″–41.1″)
Spindle & Performance
- Spindle Speed: 10,000 rpm
- Spindle Torque: 242 Nm
- Spindle Power: approx. 40–44 kW
- Tool Holder: HSK-A63
Table & Capacity
- Pallet Size: 630 × 500 mm
- Max Table Load: 1000–1400 kg
- Pallet Count: 2 (factory standard for production flow)
What Makes This Machine Valuable (Factory-Level Perspective)
1. True 5-Axis Production Capability
- 5th axis integrated in the tool (swivel/tilt head design)
- Enables single-setup machining → fewer errors, higher precision
- Ideal for:
- Aerospace components
- Automotive structural parts
- Complex mold & die
2. Heavy-Duty Cutting Power
- 242 Nm torque class spindle → strong in steel, cast iron
- Maintains cutting force at all angular positions
- Suitable for both roughing + finishing in one setup
3. Industrial Automation Ready
- 2-pallet system → continuous machining
- Can be expanded to pallet pools / Fastems systems
- Achieves >90% uptime in production environments
4. German Engineering Stability
- Thermally stable structure
- Direct measuring systems → micron-level precision
- Designed for long production cycles without drift
Critical Pre-Purchase Inspection Checklist (Professional Level)
1. Spindle Condition (MOST CRITICAL)
Check:
- Bearing noise (high rpm test)
- Vibration under load
- Thermal growth
Risk:
- Replacement cost: €25,000 – €60,000
2. 5-Axis Head Accuracy
- Test simultaneous 5-axis interpolation
- Check backlash on B/C axis
- Inspect tool center point (TCP accuracy)
Poor calibration = scrap parts in aerospace work
3. Pallet Changer System
- Verify pallet alignment repeatability
- Check hydraulic clamps
- Confirm pallet exchange cycle time
Misalignment = production inconsistency
4. Tool Magazine & ATC
- Check:
- Tool change time
- Arm alignment
- Tool pocket wear
160-tool systems are expensive to repair
5. Linear Guides & Ball Screws
- Measure backlash (laser test preferred)
- Inspect for uneven wear on X/Y/Z
Heavy machining machines often show wear in Z-axis
6. Siemens Control System
- Confirm:
- No alarms history
- PLC backup availability
- Parameter backups exist
Without backup → serious commissioning risk
7. Machine History (VERY IMPORTANT)
Request:
- Original invoice / OEM data
- Maintenance logs
- Operating hours (not just powered-on time)
Real-World Risk Analysis (Second-Hand Market)
Common Red Flags
- Machine stored but not under power
- No cutting test allowed
- Missing pallet system parts
- Tool magazine partially empty
High-Risk Scenario
“Machine removed from production and cannot be tested”
This is a serious risk indicator, especially for 5-axis machines.
Market Position & Investment Logic
Why Buyers Prefer FP 4000
- Proven in automotive OEM production lines
- Strong resale value
- Flexible for both batch and mass production
Ideal Buyer Profile
- Tier-1 / Tier-2 suppliers
- Aerospace subcontractors
- High-precision machining workshops
Expert Conclusion
The Heller FP 4000 is not just a CNC machine — it is a production system.
If properly maintained, it offers:
- Long-term stability
- High precision
- Strong ROI through automation
However:
This is NOT a beginner machine
Requires professional inspection before purchase
✔️ Final Recommendation (Professional Approach)
Before payment:
- Perform live cutting test (mandatory)
- Verify 5-axis calibration report
- Request Siemens backup + PLC data
- Use third-party inspection (Europe-based engineer)
- Pay with conditional agreement (escrow or milestone payment)
