From Factory Floor to Your Workshop: Evaluating a Pre-Owned, Used, Secondhand, Surplus CNC Machine Before Purchase FADAL VMC-4020B-II CNC Vertical Machining Center made in USA
1. Machine Overview

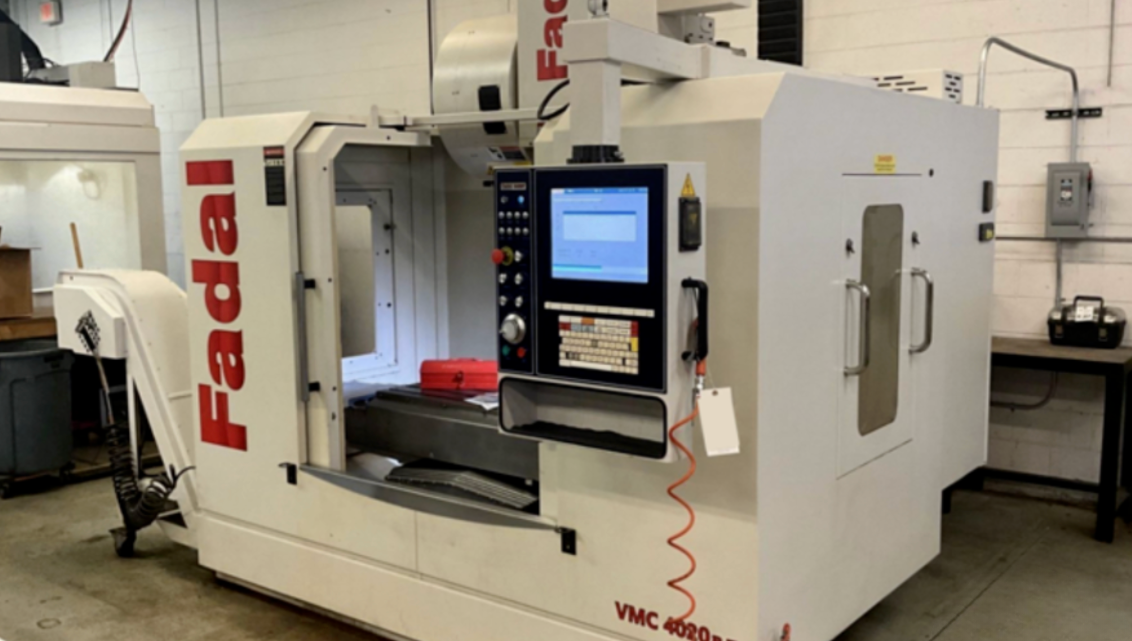

The FADAL VMC-4020B-II is an American-built, box-way vertical machining center designed for medium-to-heavy duty cutting. Known for its solid cast-iron frame, generous travels, and reliable spindle, it has long been a favorite among aerospace, mold, and job-shop manufacturers.
| Specification | Value |
|---|---|
| Travel (X / Y / Z) | 40″ × 20″ × 20″ (≈ 1016 × 508 × 508 mm) |
| Table Size | 48″ × 20″ (≈ 1219 × 508 mm) |
| Table Load Capacity | ≈ 750 kg (1650 lb) |
| Spindle Taper | CAT-40 / BT40 |
| Spindle Speed | 10 000 rpm (standard) |
| Spindle Motor Power | 15 hp (11 kW) continuous |
| Tool Magazine | 21 / 30 ATC positions |
| Control | Fadal CNC 88HS or Siemens 828D (upgraded) |
| Machine Weight | ≈ 6 500 kg (14 300 lb) |
| Origin | Made in USA |
2. Pre-Purchase Inspection Checklist
A. Mechanical Condition
- Ways and Gibs – Inspect for scoring, uneven wear, or play in the X, Y, Z axes. Box-ways should have visible oil film.
- Ball Screws & Bearings – Listen for rattling during rapid moves; check backlash using a dial indicator.
- Spindle Runout – Should not exceed 0.003 mm (0.0001 in).
- Lubrication System – Verify oil distribution and that all lines are clear.
- Way Covers & Wipers – Ensure they move freely and are not torn.
B. Electrical & Control System
- CNC Control – Boot time, screen clarity, and response; check for any stored servo alarms.
- Drive Amplifiers & Fans – Ensure no burnt smell or overheating.
- Cables – Look for cracked insulation or moisture ingress.
- Backup Parameters – Confirm that parameters are saved and can be exported.
C. Spindle & ATC System
- Spindle Bearings – Run machine at all speed ranges and listen for unusual noise.
- Tool Changer – Perform several tool changes to verify repeatability and alignment.
- Drawbar Force – Should typically exceed 2 200 N (≈ 500 lb) for CAT40.
D. Accuracy Test
- Run a circular interpolation test to evaluate geometric accuracy.
- Use a Renishaw Ball-Bar Test if possible for complete axis alignment data.
- Measure positional accuracy via laser or glass-scale comparator: should meet ±0.005 mm repeatability.
3. Operational Evaluation
- Warm-Up Cycle – Observe oil flow and thermal stability after 30 minutes.
- Sample Part Cutting – Run a test program with aluminum and mild-steel stock to evaluate chatter and surface finish.
- Coolant System – Inspect for leaks, pump pressure, and chip-removal efficiency.
- Air System – Verify tool-changer air pressure > 6 bar (≈ 90 psi).
4. Service History and Documentation
- Request maintenance logs, including spindle rebuilds or axis-ball-screw replacements.
- Check the machine serial plate for the build year (typically located on the column base).
- Verify original manuals and electrical diagrams are included.
- Confirm that all safety interlocks (door switches, E-stop) operate correctly.
5. Price and Market Comparison
A well-maintained FADAL VMC-4020B-II typically sells between
USD 18 000 – 35 000, depending on condition, hours, and controller version.
| Condition | Typical Price (USD) | Notes |
|---|---|---|
| Excellent (rebuilt / low hours) | 30 000 – 35 000 | Fully operational, ready to cut |
| Good | 22 000 – 28 000 | Minor wear, clean ball screws |
| Fair | 15 000 – 20 000 | Needs alignment or spindle service |
| Poor | < 15 000 | Control or spindle issues |
6. Conclusion
Buying a used FADAL VMC-4020B-II can be a cost-effective way to acquire an American-built machining center with proven rigidity and reliability.
Before purchasing, perform a mechanical and electrical inspection, run a live test program, and verify spindle health.
Machines with consistent maintenance and clear documentation often outperform newer low-cost imports in accuracy and durability.
