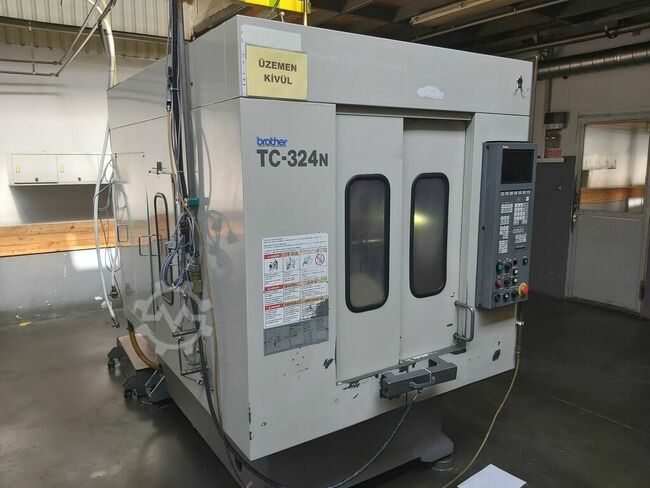

Brother TC-324N CNC Tapping Center – Made in Japan

Purchasing a pre-owned CNC tapping center can deliver outstanding value—higher productivity at a fraction of new machine cost—but only when the evaluation is done with precision. The Brother TC-324N, a compact high-speed tapping center known for reliability and fast cycle times, remains a sought-after model on the global secondhand market.
This guide provides a step-by-step professional checklist to help you evaluate a used TC-324N—or any similar CNC tapping center—before making a purchasing decision.

---

1. Verify the Machine’s Identity and Build Quality

A proper evaluation begins with confirming you are inspecting an authentic Brother TC-324N and understanding its historical condition.

✓ Nameplate Inspection

• Model number and configuration
• Serial number
• Power rating
• Year of manufacture
• Spindle speed specification
• OEM safety labels and electrical diagrams

✓ Build Quality Check

The TC-324N is known for:

• Rigid cast-iron construction
• High-speed spindle design
• Fast tool change mechanism (ATC magazine)
  Ensure there are no structural cracks, repaint marks covering repairs, or non-OEM modifications.

---

2. Mechanical Condition Assessment

This phase determines whether the machine is still capable of maintaining tight tolerances and high cycle times.

✓ Axis Movements

• Check X/Y/Z axis travel for smooth movement
• Listen for ball screw wear, thrust bearing noise, or vibration
• Inspect linear guides for scoring or dry marks

✓ Backlash Measurement

Use a dial indicator:

• Measure backlash on each axis
• Compare to typical TC-324N tolerance levels (<0.02 mm recommended for good condition)

✓ Spindle Health

• Inspect spindle taper for wear or fretting
• Run spindle at multiple speeds
• Listen for bearing noise during acceleration/deceleration
• Check heat buildup over 15–20 minutes of operation

✓ ATC and Tapping Performance

Since the TC-324N is designed for high-speed drilling and tapping:

• Test multiple tool changes
• Check tapping cycle accuracy
• Verify tool clamp force and drawbar condition

---

3. CNC Control & Electrical System

The TC-324N is commonly equipped with Brother CNC-C00 or earlier Brother control variants.

✓ Control Panel

• All buttons responsive
• Screen clear (no dead pixels or burn-in)
• No intermittent resets or alarms

✓ Control Functions

Test:

• Tool offsets
• Work offsets
• Program load and run
• RS232/USB communication (depending on control version)

✓ Electrical Cabinet

• Inspect for dust accumulation
• Check original servo drivers
• Ensure wiring is not modified or patched
• Verify cooling fans operate properly

---

4. Accuracy, Repeatability, and Test Cuts

A professional evaluation must include live cutting tests.

✓ Warm-Up & Accuracy Tests

• Ballbar test (if available)
• Spindle runout measurement
• Axis repeatability test

✓ Sample Cutting

Run:

• Drilling cycle
• High-speed tapping cycle
• Pocket milling or face milling

Check:

• Burr levels
• Hole roundness
• Thermal drift
• Dimensional accuracy of each feature

---

5. Lubrication, Pneumatics, and Coolant System

These subsystems directly impact the longevity and stability of a used TC-324N.

✓ Lubrication

• Check automatic lubrication pump
• Inspect lubrication lines for blockages
• Ensure oil is reaching linear guides and ball screws

✓ Pneumatics

• Air regulator, dryer, and pressure gauge
• Air blast for spindle and ATC must work correctly

✓ Coolant System

• Pump operation
• Tank cleanliness
• Filtration screens

---

6. Hours, Usage History & Maintenance Records

A properly documented maintenance log is a major advantage.

✓ Ask for Documentation

• Machine operating hours
• Spindle replacement history
• Preventive maintenance schedules
• Collision or alarm history
• ATC or spindle cartridge replacement invoices

A lightly used, well-serviced TC-324N tends to command a higher resale value—and usually saves money long-term.

---

7. Accessories, Tooling & Software

Identify what is included to evaluate the complete value.

Common Accessories for TC-324N

• Vices
• Tapping holders
• Collet chucks
• Coolant-through spindle options
• Air blast units
• Chip conveyor or scraper
• Brother macro packages

---

8. Safety, Compliance & Test Run Checklist

Before finalizing the purchase:

Perform On-Site Running Checks

• Power up from cold
• Run spindle at max RPM
• Execute G81/G84 cycles
• Test program execution for at least 20–30 minutes

Safety Systems

• Door interlocks
• E-stop
• Overtravel switches
• Spindle and axis load meters

---

9. Price Evaluation for Pre-Owned TC-324N

When determining whether the price is reasonable:

Consider:

• Overall mechanical state
• Spindle hours
• Year of manufacture
• Accessories included
• Refurbishment or upgrade level
• Market availability

The TC-324N remains a high-demand compact tapping center, so well-preserved units typically hold their value better than many comparable machines.

---

Conclusion

The Brother TC-324N CNC Tapping Center remains a proven, compact, and fast industrial machine. A thorough evaluation—mechanical, electrical, and operational—ensures you purchase a unit capable of delivering years of reliable, high-speed production. With the right inspection process, a secondhand TC-324N can become a powerful, cost-efficient asset in your workshop.
