For Sale : used Romi C830 CNC Flat Bed Lathe Chuck 24 inch – Year 2018 made in Brazil / REQUEST MACHINE INSPECTION

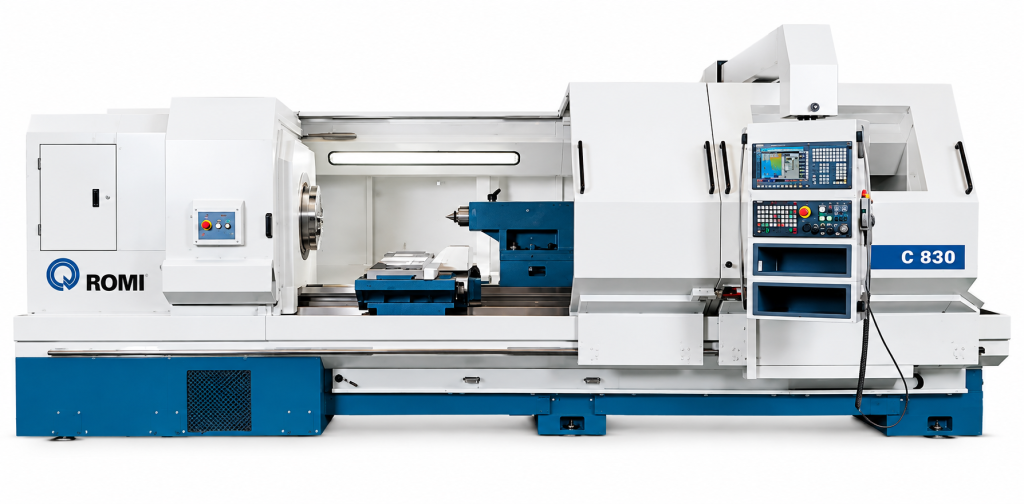

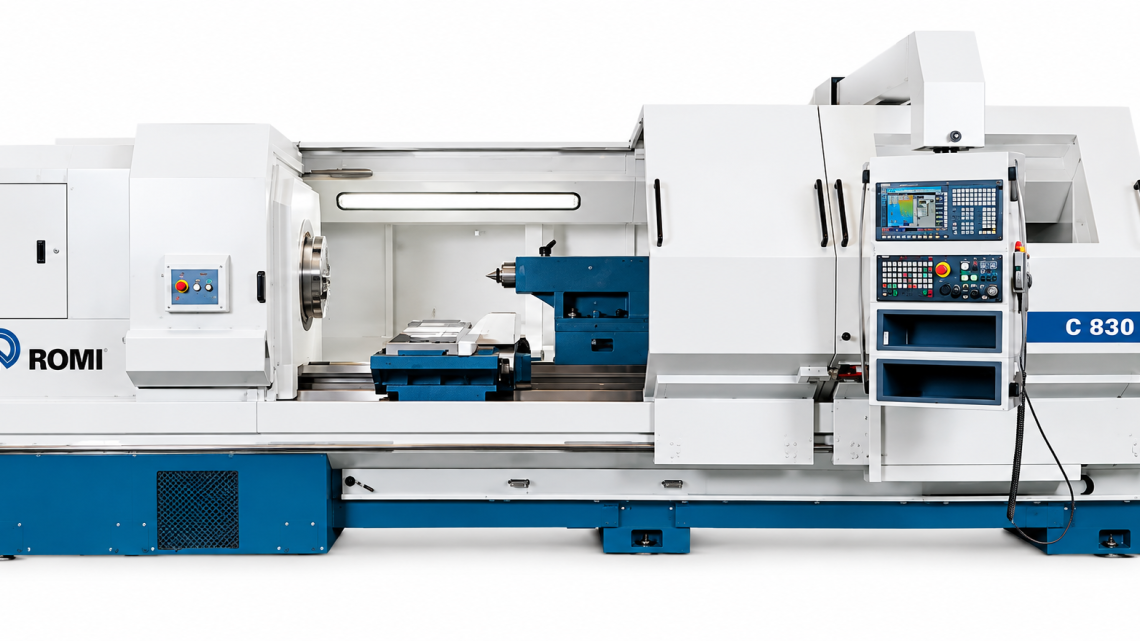

Romi C830 CNC Flat Bed Lathe with 24 inch Chuck – Year 2018
| Specification | Metric | Imperial |
|---|---|---|
| Machine Information | ||
| Manufacturer | Romi | Romi |
| Model | C830 | C830 |
| Machine Type | CNC Flat Bed Lathe | CNC Flat Bed Lathe |
| Year | 2018 | 2018 |
| Machining Capacity | ||
| Chuck Size | Approx. 610 mm | 24″ |
| Bar Capacity | Approx. 259 mm | 10.2″ |
| Swing | Approx. 850 mm | 33.46″ |
| Turning Diameter | Approx. 549 mm | 21.6″ |
| Spindle & Chuck | ||
| Spindle Speed | 775 RPM | 775 RPM |
| Spindle Nose | ASA A2-15 | ASA A2-15 |
| Chuck | 2443-2A15EX Extra Heavy Duty Oil Country, 4-Jaw | 2443-2A15EX 24″ Extra Heavy Duty Oil Country, 4-Jaw |
| Rear Centralizing Ring | Approx. Ø259 mm Hole | 10.2″ Hole |
| Tailstock | ||
| Tailstock | Tailstock with Manually Operated Quill | Tailstock with Manually Operated Quill |
| Tailstock Quill Taper | MT-5 | MT-5 |
| Tailstock Quill | Bearing & MT-5 Taper Hole | Bearing & MT-5 Taper Hole |
| Steady Rest & Workpiece Support | ||
| Steady Rest Type | U-Type Steady Rest | U-Type Steady Rest |
| Steady Rest Capacity | Ø100 – 440 mm | Approx. Ø3.94″ – 17.32″ |
| Roller Set Capacity | Ø100 – 305 mm | Ø4″ – 12″ |
| Tooling & Equipment | ||
| Tool Post | Dorian SDN60EA-RS | Dorian SDN60EA-RS |
| Boring Bar Holder / Saddle | Approx. 102 mm ID | 4″ ID |
| Deep Hole Drill / Support | SE10043 | SE10043 |
| Coolant Pump | X55916 Coolant Pump | X55916 Coolant Pump |
| Chip Conveyor | Not Included | Not Included |
