Quaser MV184 CNC Vertical Machining Center 4th-Axis Rotary Table – Year 2019

Machine Overview

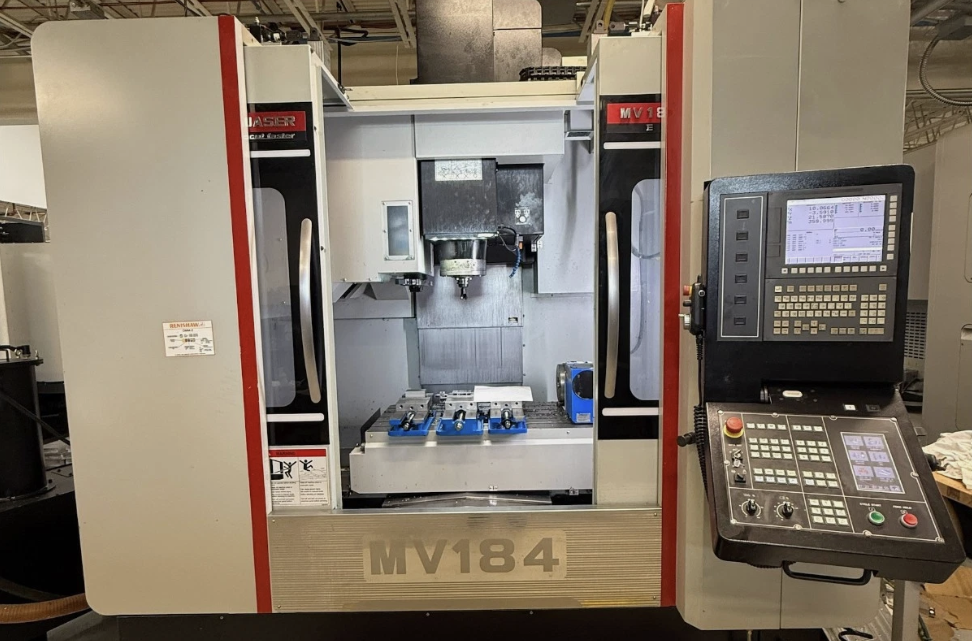

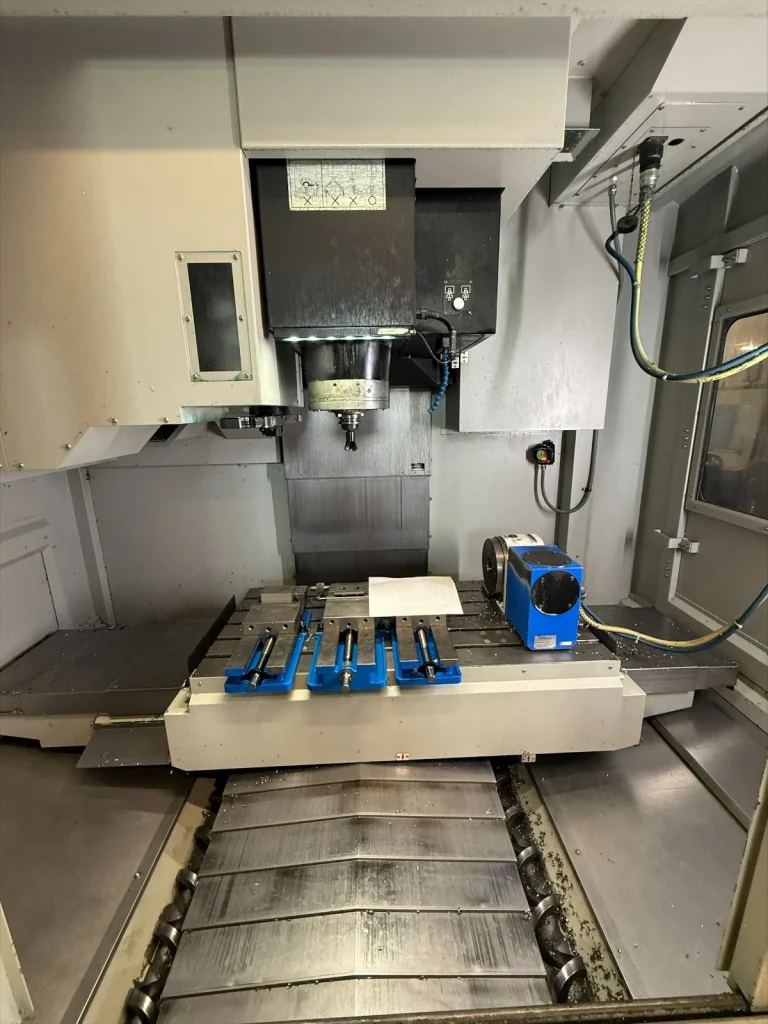

Quaser MV184 CNC Vertical Machining Center, Year 2019, equipped with a BT40 BIG PLUS spindle, 20 HP spindle motor, 48-position automatic tool changer, 300 PSI through-spindle coolant, 4th-axis rotary table, automatic doors, dual chip augers, and chip conveyor. Built with a heavy-duty cross roller guideway design, this machining center provides higher rigidity than comparable machines in its class while maintaining excellent speed and accuracy for demanding production applications.

Technical Specifications

Specification	Metric	Imperial
Manufacturer	Quaser	Quaser
Model	MV184	MV184
Year of Manufacture	2019	2019
Machine Type	CNC Vertical Machining Center	CNC Vertical Machining Center
Power Source	Electric	Electric
CNC Control	CNC Control	CNC Control
Function	Milling	Milling
X-Axis Travel	1,016 mm	40″
Y-Axis Travel	610 mm	24″
Z-Axis Travel	635 mm	25″
Spindle Taper	BT40 BIG PLUS	BT40 BIG PLUS
Maximum Spindle Speed	12,000 RPM	12,000 RPM
Spindle Motor	15 kW	20 HP
Automatic Tool Changer	48 Tools	48 Tools
Through-Spindle Coolant Pressure	20.7 Bar	300 PSI
Guideway Type	Cross Roller Guideways	Cross Roller Guideways
Ball Screw Cooling	Oil-Chilled Ball Screws	Oil-Chilled Ball Screws
Voltage	220 Volt	220 Volt
Standard Equipment
BT40 BIG PLUS High-Rigidity Spindle 20 HP Spindle Motor 12,000 RPM Spindle 48-Position Automatic Tool Changer 300 PSI Through-Spindle Coolant 4th-Axis Rotary Table Automatic Doors Rigid Tapping Oil-Chilled Ball Screws Cross Roller Linear Guideways Chip Conveyor Dual Chip Augers
Applications
Suitable for high-precision milling, drilling, boring, tapping, and contour machining of steel, stainless steel, aluminum, titanium, cast iron, and engineering alloys. Ideal for aerospace, automotive, medical, mold & die, energy, and precision engineering industries.
Machine Features
The Quaser MV184 is a heavy-duty CNC vertical machining center engineered for demanding production environments. Compared with typical machining centers in its class, its robust cross roller guideway construction provides increased rigidity and machining stability. Equipped with a BT40 BIG PLUS spindle, 48-tool automatic tool changer, high-pressure through-spindle coolant, oil-cooled ball screws, integrated 4th-axis capability, automatic doors, and efficient chip management system, the MV184 delivers outstanding productivity, precision, and reliability for complex machining applications.
