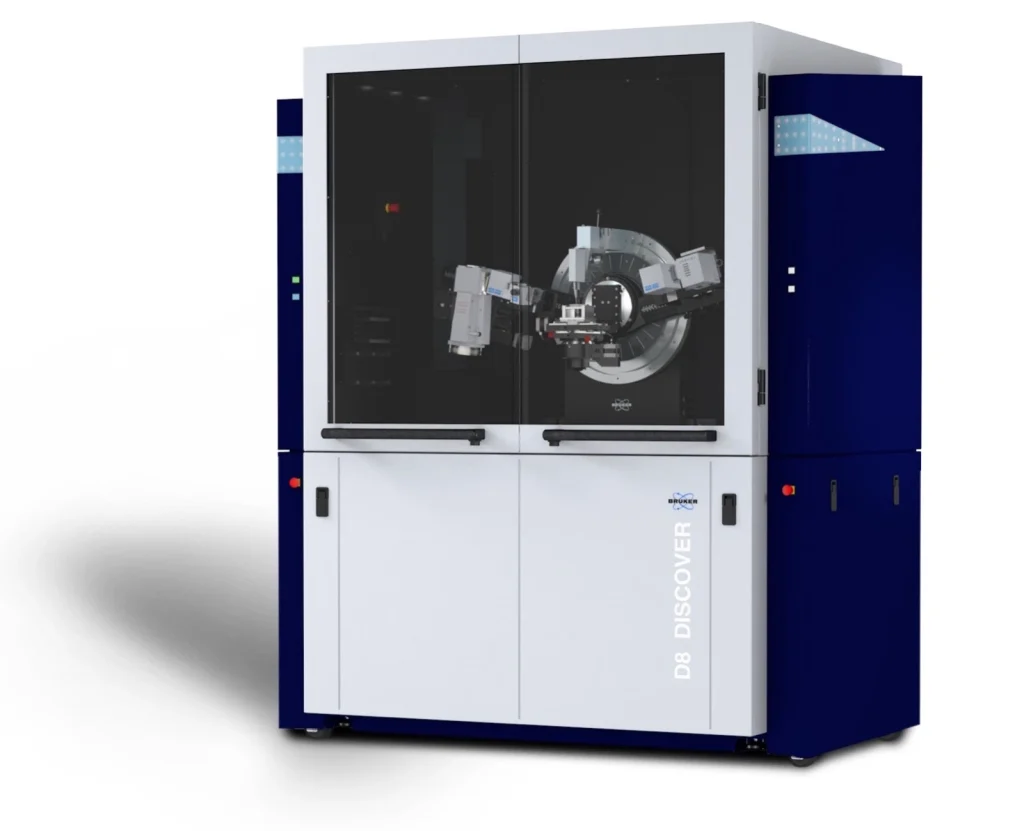

BRUKER D8 DISCOVER XRD Multi-purpose X-ray Diffractometer + Chiller

Machine Overview

BRUKER D8 DISCOVER Multi-purpose X-ray Diffractometer complete with Chiller. The D8 DISCOVER is a modular high-performance X-ray diffraction (XRD) platform designed for advanced materials research, powder diffraction, thin-film characterization, stress analysis, texture measurements, crystallography, and non-ambient experimentation. Featuring Bruker’s modular optics architecture, multiple X-ray source options, advanced detectors, precision goniometer, and automated beam switching, the system delivers exceptional flexibility, accuracy, and measurement speed.

Technical Specifications

Specification	Metric	Imperial
Manufacturer	BRUKER	BRUKER
Model	D8 DISCOVER	D8 DISCOVER
Machine Type	Multi-purpose X-Ray Diffractometer (XRD)	Multi-purpose X-Ray Diffractometer (XRD)
Cooling System	External Chiller Included	External Chiller Included
TWIST-TUBE X-Ray Source
Focus Type	Point / Line Focus Switching	Point / Line Focus Switching
Available Anodes	Cr, Cu, Mo, Ag	Cr, Cu, Mo, Ag
Maximum Power	Up to 3 kW	Up to 3 kW
Filament Size	0.4 × 16 mm	0.016 × 0.63 in
Patent	EP 1 923 900 B1	EP 1 923 900 B1
IµS Microfocus Source
Power Load	Up to 50 W	Up to 50 W
Power Supply	Single Phase	Single Phase
Optics	MONTEL / MONTEL Plus Mirrors	MONTEL / MONTEL Plus Mirrors
Minimum Beam Size	180 × 180 µm	0.0071 × 0.0071 in
Maximum Integrated Flux	8 × 10⁸ cps	8 × 10⁸ cps
Beam Divergence	0.5 mrad	0.5 mrad
Turbo X-Ray Source (TXS)
Line Focus	0.3 × 3 mm	0.012 × 0.118 in
Focal Brightness	6 kW/mm²	6 kW/mm²
Available Anodes	Cu, Co, Cr, Mo	Cu, Co, Cr, Mo
Maximum Voltage	50 kV	50 kV
Maximum Power (Cr)	3.2 kW	3.2 kW
Maximum Power (Cu / Mo)	5.4 kW	5.4 kW
Maximum Power (Co)	2.8 kW	2.8 kW
Filament Type	Pre-Aligned Tungsten	Pre-Aligned Tungsten
TRIO Optics
Beam Geometries	Motorized Divergence Slit, High Intensity Kα1,2 Parallel Beam, High Resolution Kα1 Parallel Beam	Motorized Divergence Slit, High Intensity Kα1,2 Parallel Beam, High Resolution Kα1 Parallel Beam
Automatic Beam Switching	Up to 6 Configurations	Up to 6 Configurations
Supported Sample Types	Powders, Bulk Materials, Fibers, Sheets, Thin Films	Powders, Bulk Materials, Fibers, Sheets, Thin Films
High Resolution Monochromators
Crystal Reflections	Ge(220), Ge(004)	Ge(220), Ge(004)
Configuration	2-Bounce / 4-Bounce Bartels Type	2-Bounce / 4-Bounce Bartels Type
Mounting System	SNAP.LOCK Alignment-Free	SNAP.LOCK Alignment-Free

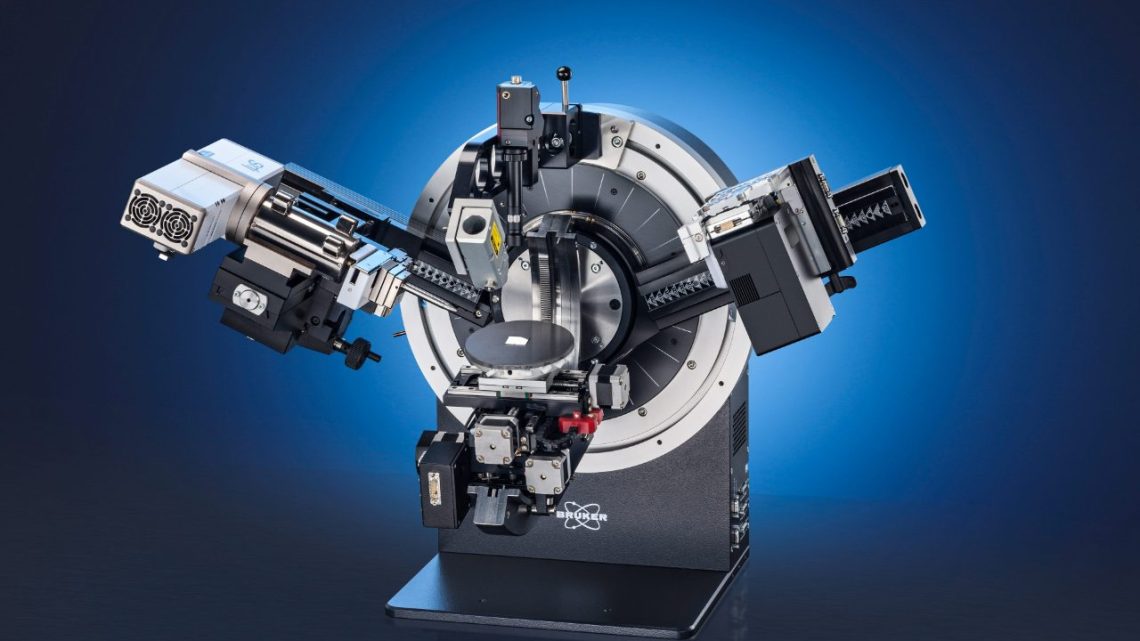

D8 Goniometer
Type	Two-Circle Precision Goniometer	Two-Circle Precision Goniometer
Drive System	Independent Stepper Motors with Optical Encoders	Independent Stepper Motors with Optical Encoders
Lubrication	Lifetime Lubricated Maintenance-Free	Lifetime Lubricated Maintenance-Free
UMC Sample Stage
X/Y Translation	±150 mm	±5.91 in
Z Travel	50 mm	1.97 in
Phi Rotation	Continuous	Continuous
Maximum Psi Tilt	55°	55°
Maximum Sample Weight	50 kg	110 lbs
Centric Eulerian Cradle (CEC)
Degrees of Freedom	5	5
X/Y Translation	±40 mm	±1.57 in
Z Alignment	Motorized	Motorized
Phi Rotation	360°	360°
Psi Range	-11° to 98°	-11° to 98°
Maximum Sample Weight	1 kg	2.2 lbs
Pathfinder Plus Optics
Optics	Motorized Slit, 2-Bounce Ge Analyzer, Integrated Absorber	Motorized Slit, 2-Bounce Ge Analyzer, Integrated Absorber
Switching	Fully Automatic	Fully Automatic
LYNXEYE XE-T Detector
Energy Resolution	<380 eV @ 8 keV	<380 eV @ 8 keV
Detection Modes	0D / 1D / 2D	0D / 1D / 2D
Supported Wavelengths	Cr, Co, Cu, Mo, Ag	Cr, Co, Cu, Mo, Ag
Detection Speed	Up to 450× Faster than Conventional Systems	Up to 450× Faster than Conventional Systems
Special Capability	100% Fe Fluorescence Filtering with Cu Radiation	100% Fe Fluorescence Filtering with Cu Radiation
EIGER2 Detector
Technology	Hybrid Photon Counting	Hybrid Photon Counting
Detection Modes	0D / 1D / 2D	0D / 1D / 2D
Scanning Modes	Step, Continuous, Advanced	Step, Continuous, Advanced
Detector Positioning	Continuously Variable	Continuously Variable
Non-Ambient Capabilities
Temperature Range	Approx. 12 K to 2,500 K	Approx. -438°F to 4,040°F
Pressure Range	10⁻⁴ mbar to 100 bar	10⁻⁴ mbar to 1,450 psi
Humidity Range	5% to 95% RH	5% to 95% RH
Applications
Powder Diffraction, Thin Film Analysis, Residual Stress Measurement, Texture Analysis, Crystallography, Semiconductor Research, Materials Science, Nanotechnology, Coatings, Bulk Materials, Fibers, Polymers, Metals, Ceramics, Geological Samples, Pharmaceutical Research, In-situ & Non-Ambient Measurements.
Standard Equipment & Features
TWIST-TUBE High Power X-Ray Source IµS Microfocus Source Turbo X-Ray Source (TXS) TRIO Automated Optics High Resolution Ge Monochromators D8 Precision Goniometer UMC Sample Stage Centric Eulerian Cradle (CEC) Pathfinder Plus Optics LYNXEYE XE-T Detector EIGER2 Hybrid Photon Counting Detector Automated Beam Geometry Switching DIFFRAC.DAVINCI Stage Integration External Chiller
Machine Features
The BRUKER D8 DISCOVER is one of the industry’s most advanced modular X-ray diffraction platforms. Its configurable X-ray sources, automated optics, precision goniometer, high-resolution monochromators, multiple detector technologies, and comprehensive environmental testing capabilities provide outstanding performance for research laboratories, universities, semiconductor manufacturing, aerospace materials development, pharmaceutical analysis, metallurgy, nanotechnology, and industrial quality control. The system supports rapid switching between measurement configurations while maintaining exceptional accuracy, repeatability, and data quality.

BRUKER D8 DISCOVER XRD Multi-purpose X-ray Diffractometer + HASKRIS Chiller

Machine Overview

BRUKER D8 DISCOVER Multi-purpose X-ray Diffractometer supplied with a HASKRIS Recirculating Chiller. This modular X-ray diffraction (XRD) system is configured with a SUPER SPEED LYNXEYE Type 1D Silicon Strip Detector, multiple interchangeable slit systems, and complete documentation. According to the previous laboratory, the system was fully operational before the installed Siemens KFL Cu 2K X-ray tube reached the end of its service life. The X-ray tube requires replacement before the system can be returned to operation. No computer is included.

Technical Specifications

Specification	Metric	Imperial
Manufacturer	BRUKER	BRUKER
Model	D8 DISCOVER	D8 DISCOVER
Machine Type	Multi-purpose X-ray Diffractometer (XRD)	Multi-purpose X-ray Diffractometer (XRD)
Cooling System	HASKRIS Recirculating Chiller Included	HASKRIS Recirculating Chiller Included
X-Ray Tube Installed	Siemens KFL Cu 2K	Siemens KFL Cu 2K
X-Ray Tube Condition	End of Service Life (Replacement Required)	End of Service Life (Replacement Required)
Detector	SUPER SPEED LYNXEYE Type 1D Silicon Strip Detector	SUPER SPEED LYNXEYE Type 1D Silicon Strip Detector
Computer	Not Included	Not Included
Operating Manuals	Included	Included
Included Accessories
Interchangeable Slits	Included	Included
Manual Beam Knife	Included	Included
Beam Filters	Included	Included
Soller Slits	(2) × 2.5°	(2) × 2.5°
Glass Alignment Slit	Included	Included
Phosphor Alignment Disc	Included	Included
Laboratory Condition Report
According to the previous laboratory, the instrument was fully operational during use. The installed Siemens KFL Cu 2K X-ray tube has reached the end of its operational life and must be replaced before the diffractometer can be commissioned again.
Standard Equipment
BRUKER D8 DISCOVER XRD System SUPER SPEED LYNXEYE Type 1D Silicon Strip Detector HASKRIS Recirculating Chiller Siemens KFL Cu 2K X-Ray Tube (Installed – End of Life) Complete Set of Interchangeable Slits Manual Beam Knife Beam Filters Two 2.5° Soller Slits Glass Alignment Slit Phosphor Alignment Disc Original Manuals
Machine Features
The BRUKER D8 DISCOVER is a research-grade multifunctional X-ray diffraction system designed for powder diffraction, thin-film characterization, crystallography, residual stress analysis, texture measurements, and advanced materials research. This configuration includes the high-speed LYNXEYE Type 1D Silicon Strip Detector, complete optical accessories, and a HASKRIS recirculating chiller. The only reported issue is that the installed Siemens KFL Cu 2K X-ray tube has reached the end of its service life and requires replacement. No computer is supplied with the system.
