For Sale : used Herkules HS3 LT CNC Roll and Groove Caliber Grinding Machine Long Table – Year 2023 made in Germany / REQUEST MACHINE INSPECTION

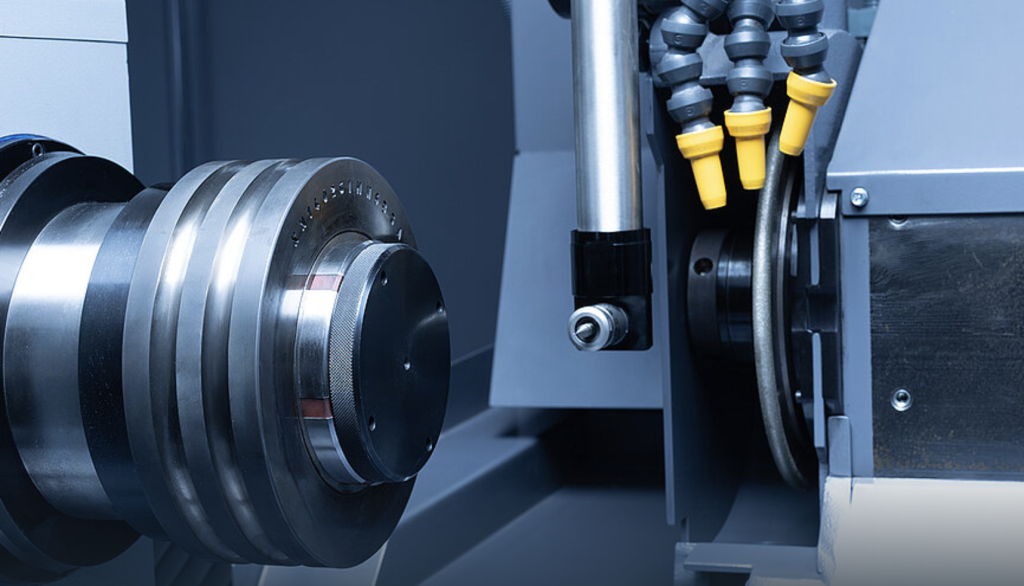

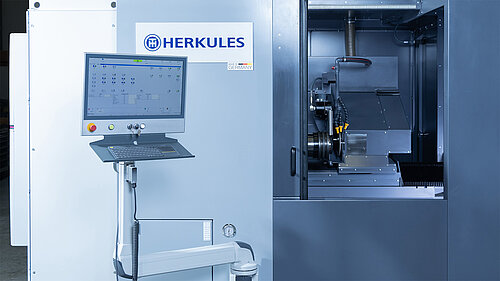

| Herkules HS3 LT CNC Roll and Groove Caliber Grinding Machine Long Table – Year 2023 | ||
|---|---|---|
| Specification | Metric | Imperial |
| General Information | ||
| Manufacturer | HERKULES | |
| Model | HS3 LT | |
| Machine Type | CNC Roll and Groove Caliber Grinding Machine – Long Table | |
| Year | 2023 | |
| Serial Number | contact to us | |
| CNC Control | HCC-KPM-20 | |
| Coolant System | Equipped | |
| Work Range | ||
| Largest Machinable Diameter | 500 mm | 19.685 in |
| Smallest Machinable Diameter | 100 mm | 3.937 in |
| Maximum Grinding Length | 2,000 mm | 78.740 in |
| Axis Travels | ||
| Cross Slide Travel – X-Axis | 425 mm | 16.732 in |
| Longitudinal Slide Travel – Z-Axis | 2,000 mm | 78.740 in |
| Workpiece Capacity | ||
| Maximum Workpiece Weight Between Headstock & Tailstock Centers | 300 kg | 661 lb |
| Headstock / Faceplate | ||
| Drive Motor Output | 5.2 kW | 7.0 HP |
| Faceplate Speed | 0.02 – 100 RPM | |
| Jaw Chuck | ||
| Clamping Diameter | 300 mm | 11.811 in |
| Number of Jaws | 2 | |
| Grinding Wheel Drive | ||
| Grinding Wheel Motor Output | 20 kW | 26.8 HP |
| Maximum Grinding Spindle Speed | 1,915 RPM | |
| Maximum Cutting Speed | 40 m/s | 7,874 ft/min |
| Grinding Wheel | ||
| Grinding Wheel Bore | 127 mm | 5.000 in |
| Maximum Grinding Wheel Diameter | 450 mm | 17.717 in |
| Grinding Wheel Width | 50 mm | 1.969 in |
| Grinding Wheel Infeed – X-Axis | ||
| Infeed Range | 0.001 – 100 mm | 0.000039 – 3.937 in |
| Continuous Infeed Speed | 0.01 – 5 mm/min | 0.0004 – 0.197 in/min |
| Rapid Traverse | 100 – 2,000 mm/min | 3.94 – 78.74 in/min |
| Creep Speed | 5 – 100 mm/min | 0.197 – 3.937 in/min |
| Longitudinal Slide – Z-Axis | ||
| Oscillation Speed | 10 – 3,000 mm/min | 0.394 – 118.11 in/min |
| Rapid Traverse | 100 – 3,000 mm/min | 3.94 – 118.11 in/min |
| Creep Speed | 5 – 100 mm/min | 0.197 – 3.937 in/min |
| Workpiece Measurement Device | ||
| Manufacturer | Renishaw | |
| Type | LP2 | |
| Measuring Method | Triggering Touch Probe | |
| Electrical Requirements | ||
| Total Connected Load | Approx. 66 kVA | |
| Amperage | 80 A | |
| Voltage | 480 V | |
| Frequency | 60 Hz | |
| Dimensions | ||
| Machine Dimensions (L × W × H) | Approx. 4,623 × 2,591 × 2,413 mm | 182 × 102 × 95 in |
| Cabinet Dimensions (L × W × H) | Approx. 2,667 × 1,168 × 2,413 mm | 105 × 46 × 95 in |
| Crate Dimensions (L × W × H) | Approx. 1,067 × 813 × 864 mm | 42 × 32 × 34 in |
| Miscellaneous Dimensions (L × W × H) | Approx. 2,591 × 2,337 × 1,473 mm | 102 × 92 × 58 in |
