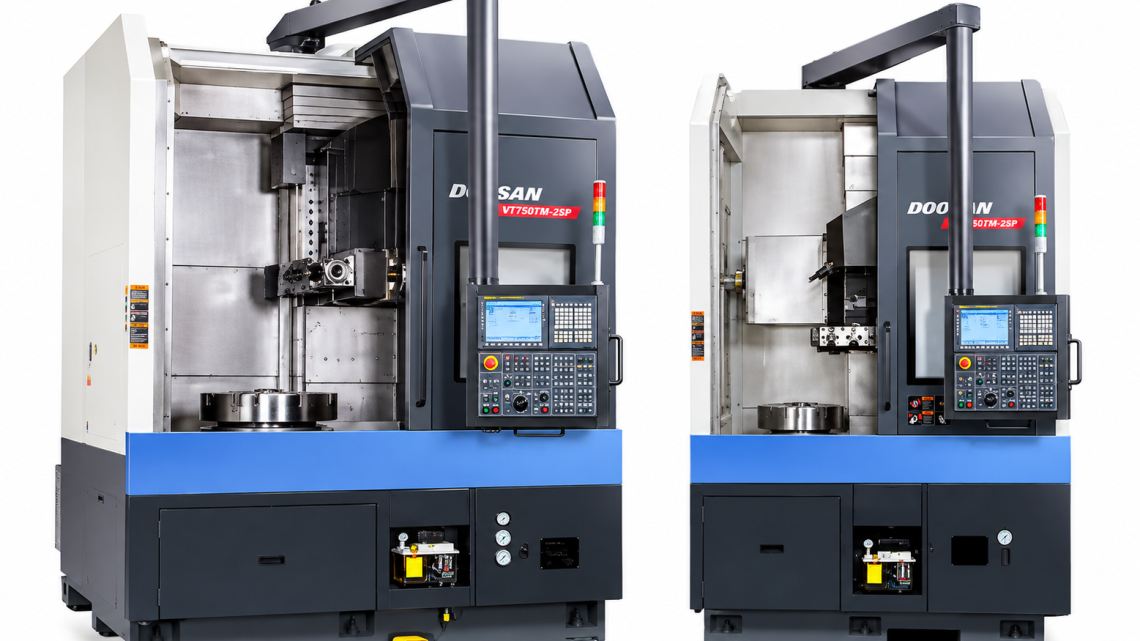

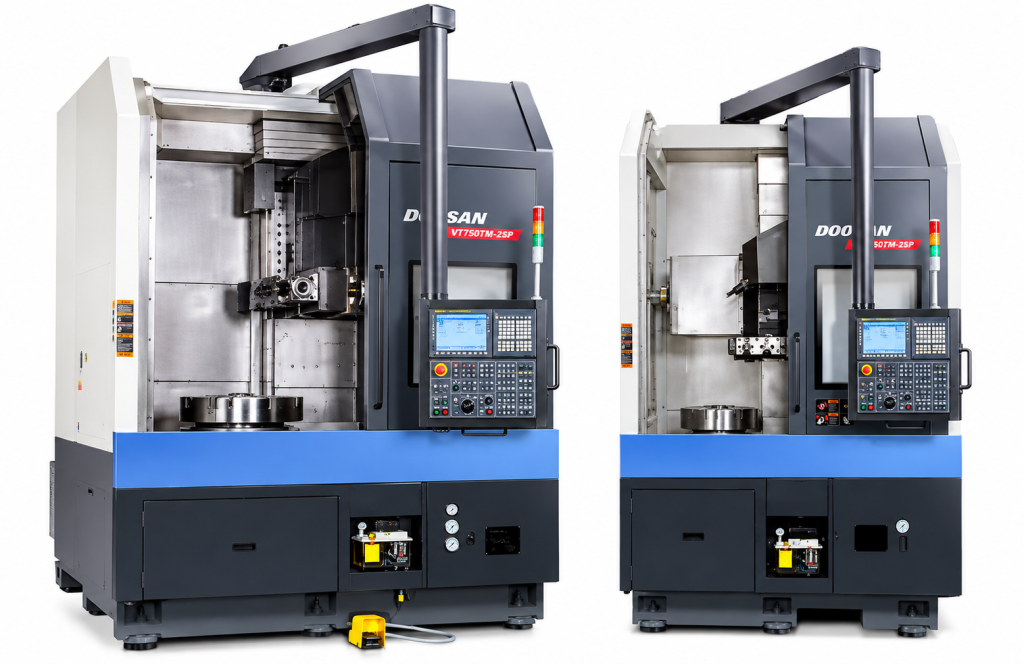

For Sale : used Complete Robotic CNC Turning Cell DOOSAN VT450TM-2SP + DOOSAN VT750TM-2SP + KAWASAKI ZX-165U Industrial Robot / REQUEST MACHINE INSPECTION
| Complete Robotic CNC Turning Cell – Year 2008 | |||
|---|---|---|---|
| Specification | DOOSAN VT450TM-2SP | DOOSAN VT750TM-2SP | KAWASAKI ZX-165U |
| General Cell Information | |||
| Complete System | DOOSAN VT450TM-2SP + DOOSAN VT750TM-2SP + KAWASAKI ZX-165U | ||
| Year of Manufacture | 2008 | ||
| Condition | Excellent – Fully Operational | ||
| Location | contact to us | ||
| Availability | Currently in Production; Inspection Under Power Possible | ||
| Sale | Complete Integrated Robotic Cell | ||
| Current Production | Currently Operating in a Two-Shift Production Environment | ||
| Maintenance | Regularly Maintained | ||
| Automation Function | Automated Workpiece Handling, Loading and Unloading Between the CNC Machines | ||
| Machine / Robot Identification | |||
| Manufacturer | Doosan Infracore | Doosan Infracore | Kawasaki Robotics |
| Model | VT450TM-2SP | VT750TM-2SP | ZX-165U |
| Machine Type | Vertical CNC Turning Center | Vertical CNC Turning Center | Industrial Robot |
| Year | 2008 | 2008 | 2008 |
| CNC / Control | FANUC CNC | FANUC CNC | Robot Controller Included |
| Turning Capacity | |||
| Maximum Turning Diameter | 450 mm / Approx. 17.72 in | 750 mm / Approx. 29.53 in | — |
| Maximum Turning Height | Approx. 450 mm / 17.72 in | Approx. 700 mm / 27.56 in | — |
| Chuck Diameter | 305 mm / 12 in | 533 mm / 21 in | — |
| Spindle | |||
| Maximum Spindle Speed | 2,500 RPM | 1,500 RPM | — |
| Spindle Motor Power | 18.5 / 22 kW / Approx. 24.8 / 29.5 HP | 30 / 37 kW / Approx. 40.2 / 49.6 HP | — |
| Spindle Nose | A2-8 | A2-11 | — |
| Axis Travels & Rapid Traverse | |||
| X-Axis Travel | 240 mm / Approx. 9.45 in | 385 mm / Approx. 15.16 in | — |
| Z-Axis Travel | 450 mm / Approx. 17.72 in | 700 mm / Approx. 27.56 in | — |
| X / Z Rapid Traverse | 20 m/min / Approx. 787 IPM | 20 m/min / Approx. 787 IPM | — |
| Turret & Tooling | |||
| Turret | BMT65 | BMT75 | — |
| Tool Stations | 12 | 12 | — |
| Driven / Live Tools | Yes | Yes | — |
| C-Axis | Yes | Yes | — |
| Machine Weight | |||
| Approximate Weight | 6,200 kg / Approx. 13,669 lb | 11,000 kg / Approx. 24,251 lb | Not Specified |
| CNC Machine Equipment | |||
| FANUC CNC Control | Equipped | Equipped | — |
| Hydraulic Chuck | Equipped | Equipped | — |
| Chip Conveyor | Equipped | Equipped | — |
| Automatic Lubrication | Equipped | Equipped | — |
| Working Area | Fully Enclosed | Fully Enclosed | — |
| Robot Communication Interface | Equipped | Equipped | Integrated with Both CNC Machines |
| KAWASAKI ZX-165U Industrial Robot | |||
| Robot Configuration | — | — | 6-Axis Industrial Robot |
| Nominal Payload | — | — | 165 kg / Approx. 364 lb (Model Specification – Verify Nameplate) |
| Application | — | — | Automated Workpiece Handling, Loading and Unloading |
| Robot Controller | — | — | Included |
| Electrical Cabinet | — | — | Included |
| Robot Gripper / Handling Equipment | — | — | Installed / Included |
| Robot Condition | — | — | Excellent – Currently in Operation |
| Integration | KAWASAKI ZX-165U Robot Integrated with Both DOOSAN CNC Machines as Part of the Automated Production Cell | ||
| Complete Cell – Included Equipment | |||
| DOOSAN VT450TM-2SP | 1 × CNC Vertical Turning Center | ||
| DOOSAN VT750TM-2SP | 1 × CNC Vertical Turning Center | ||
| KAWASAKI ZX-165U | 1 × Industrial Robot with Robot Control Cabinet | ||
| Robot Gripper | Installed Robot Gripper / Workpiece Handling Equipment | ||
| Safety System | Safety Fencing and Protective Enclosure | ||
| Communication | Robot-to-Machine Communication Interfaces | ||
| Automation Components | Associated Electrical and Pneumatic Automation Components | ||
| Workpiece Handling | Workpiece Handling / Storage Stations | ||
| Chip Management | Chip Conveyors | ||
| Condition, Inspection & Advantages | |||
| Operational Condition | Both CNC Machines and the Kawasaki Robot are Fully Operational | ||
| Maintenance Condition | Regularly Maintained | ||
| Current Status | Currently Used in Manufacturing Production | ||
| Inspection | Complete Cell Can Be Inspected Under Power by Prior Appointment | ||
| Production Demonstration | Live Production Demonstration / Test Run Available by Prior Appointment | ||
| Automation Solution | Complete Existing Robotic CNC Turning Solution | ||
| CNC Machine Configuration | Two Heavy-Duty DOOSAN Vertical Turning Centers with FANUC CNC Controls | ||
| Machining Capability | Driven Tools and C-Axis on Both CNC Machines | ||
| Automation Advantage | Automated Workpiece Handling and Reduced Manual Intervention | ||
| Overall Condition | Excellent Condition – Regularly Maintained | ||
| Typical Applications | |||
| Flanges | Suitable for Automated Machining | ||
| Bearing Rings | Suitable for Automated Machining | ||
| Gear Components | Suitable for Automated Machining | ||
| Housings | Suitable for Automated Machining | ||
| Brake Discs | Suitable for Automated Machining | ||
| Large Rotational Components | Suitable for Automated Machining | ||
| Industrial Workpieces | Medium- to Heavy-Duty Industrial Workpieces | ||
| Materials | Including Steel and Cast-Iron Parts | ||
| Sales Information | |||
| Sale Configuration | Complete Robotic Cell Offered for Sale as One Integrated System | ||
| Additional Information | Additional Photographs, Video and Technical Information Available Upon Request | ||
| Inspection & Test Run | Available by Appointment | ||
| Machines made in | Korea | ||
| Robot made in | Japan | ||
| More Info | contact to us | ||
