DOOSAN PUMA V8300R CNC Vertical Lathe Chuck 24 Inch – Year 2018

Machine Overview

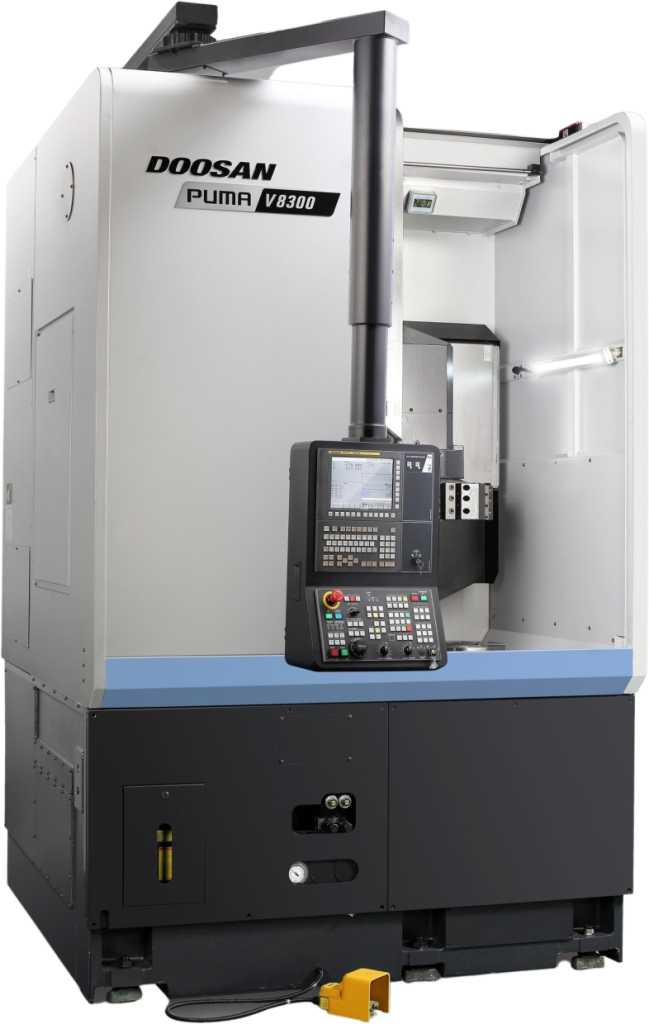

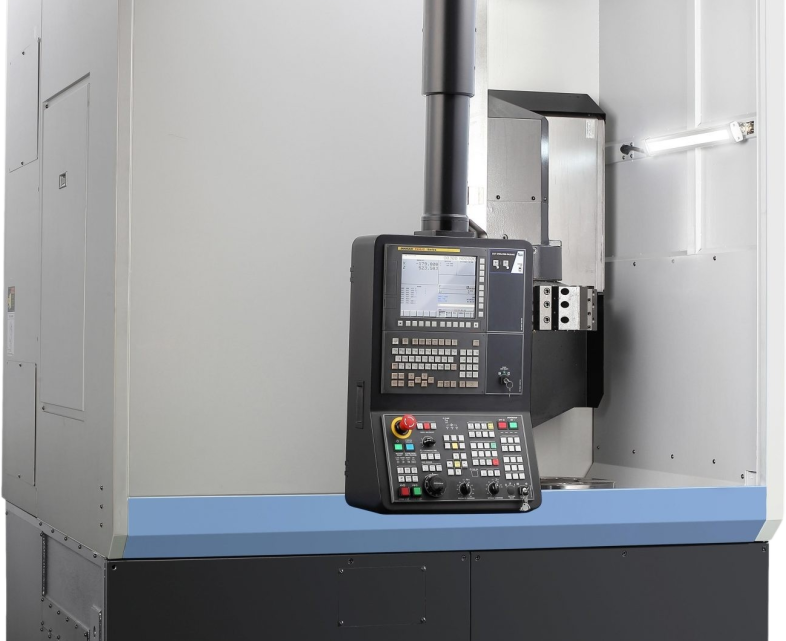

DOOSAN PUMA V8300R CNC Vertical Turning Center, manufactured in 2018, in excellent, like-new condition. The machine is equipped with a FANUC i-Series CNC Control, a 24″ hydraulic chuck, and a high-performance 37 kW spindle capable of reaching 2,000 RPM. Designed for high-precision heavy-duty machining of large workpieces, the machine also features an original bottom-type chip conveyor for efficient chip evacuation during continuous production.

Technical Specifications

Specification	Metric	Imperial
Manufacturer	DOOSAN
Model	PUMA V8300R
Machine Type	CNC Vertical Turning Center
Year of Manufacture	2018
Condition	Excellent (Like New)
CNC Control	FANUC i-Series
Chuck Size	609.6 mm	24″
Maximum Chuck Diameter	609.6 mm	24″
Maximum Turning Diameter	830 mm	32.7″
Maximum Turning Length	750 mm	29.5″
Swing Over Bed	920 mm	36.2″
X-Axis Rapid Traverse	20 m/min	787 ipm
Z-Axis Rapid Traverse	20 m/min	787 ipm
Main Spindle Motor	37 kW	49.6 HP
Maximum Spindle Speed	2,000 RPM	2,000 RPM

Standard Equipment

• FANUC i-Series CNC Control
• 24″ Hydraulic Chuck
• High-Torque Main Spindle
• Original Bottom-Type Chip Conveyor
• Heavy-Duty Vertical Turning Construction
• Automatic Lubrication System
• Fully Enclosed Splash Guard

Machine Highlights

• Year 2018
• Excellent, like-new condition
• 24″ hydraulic chuck for large workpieces
• 830 mm maximum turning diameter
• 2,000 RPM high-speed spindle
• 37 kW high-performance spindle motor
• Fast 20 m/min rapid traverse on X and Z axes
• Original factory-installed bottom-type chip conveyor
• Ideal for precision machining of medium and large components
