Available now : used DOOSAN PUMA VT 900M CNC Vertical Lathe C-Axis – Year 2012 made in South of Korea

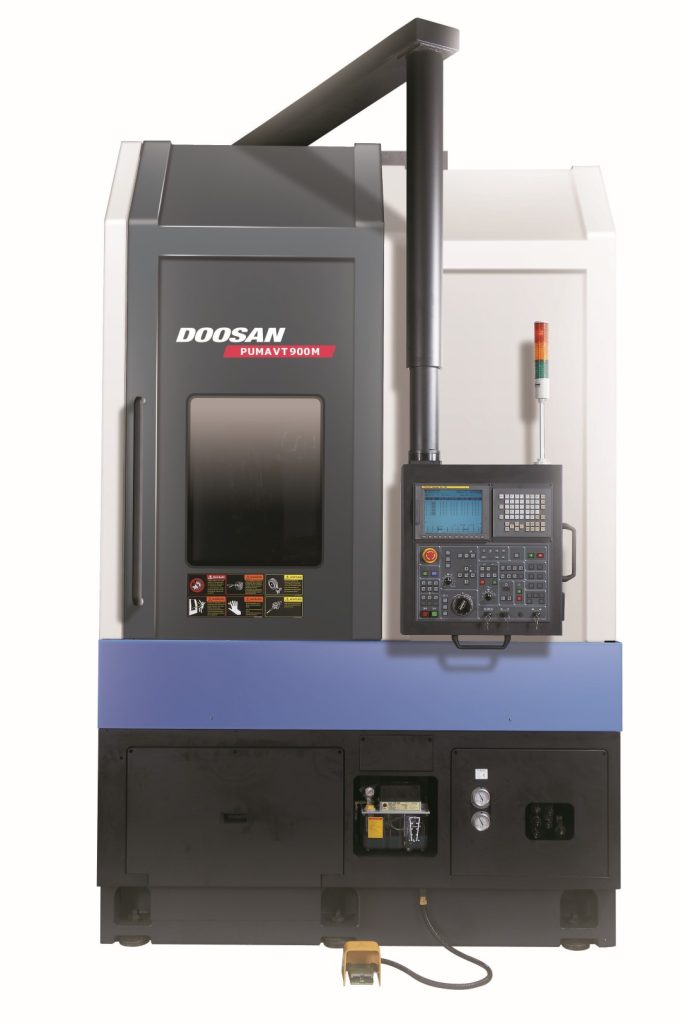

DOOSAN PUMA VT 900M
CNC Vertical Turning Center with C-Axis – Year 2012
Machine Overview
DOOSAN PUMA VT900M CNC Vertical Turning Center, manufactured in 2012, equipped with a
FANUC 31i CNC Control with Manual Guide i, C-Axis, 12-position turret, and
live tooling. The machine features a 630 mm chuck, a
900 mm maximum turning diameter, and a heavy-duty
2-speed gearbox providing exceptionally high spindle torque for demanding machining applications.
This machine has accumulated only approximately 4,100 operating hours and remains in
good working condition. It is equipped with a detachable tool setter, chip conveyor,
and a selection of fixed and powered tool holders. The machine can be inspected under power by prior arrangement.
Technical Specifications
Specification
Metric
Imperial
Manufacturer
DOOSAN
Model
PUMA VT900M
Machine Type
CNC Vertical Turning Center with C-Axis & Live Tooling
Year of Manufacture
2012
Condition
Good (Used)
CNC Control
FANUC 31i with Manual Guide i
Maximum Turning Diameter
900 mm
35.4″
Recommended Turning Diameter
610 mm
24.0″
Maximum Turning Height
809 mm
31.9″
Swing Over Bed
1,000 mm
39.4″
Swing Over Saddle
700 mm
27.6″
Chuck Size
630 mm
24.8″
X-Axis Travel
470 mm
18.5″
Z-Axis Travel
850 mm
33.5″
Rapid Traverse (X / Z)
20 / 20 m/min
787 / 787 ipm
Spindle Speed
1,800 rpm
1,800 rpm
Spindle Nose
ISO 702-1 A2#15
ISO 702-1 A2#15
Spindle Through Hole
107 mm
4.2″
Front Bearing Diameter
200 mm
7.9″
C-Axis Indexing
360° (0.001° Increment)
360° (0.001° Increment)
Turret
12 Stations
12 Stations
OD Tool Size
32 mm
1.3″
Maximum Boring Bar Diameter
Ø80 mm
Ø3.1″
Turret Index Time
1.6 sec
1.6 sec
Main Spindle Motor
45 / 37 kW
60.3 / 49.6 HP
Servo Motors (X/Z)
4.0 / 4.0 kW
5.4 / 5.4 HP
Live Tool Motor
7.0 kW
9.4 HP
Electrical Capacity
80 kVA
80 kVA
Machine Dimensions (L × W × H)
2,130 × 3,050 × 3,621 mm
83.9 × 120.1 × 142.6 in
Machine Weight
12,500 kg
27,557 lb
Operating Hours
Approx. 4,100 h
Approx. 4,100 h
Standard Equipment
FANUC 31i CNC Control with Manual Guide i
C-Axis interpolation
Powered (Live) Tooling
12-Position Turret
630 mm Hydraulic Chuck
Heavy-Duty 2-Speed Gearbox
High-Torque Main Spindle
Detachable Tool Setter
Chip Conveyor
Selection of Fixed Tool Holders
Selection of Powered Tool Holders
Machine can be inspected under power by prior appointment
Machine Highlights
Heavy-duty vertical turning center for large workpieces
Only approximately 4,100 operating hours
High-torque gearbox suitable for heavy cutting applications
C-Axis with live tooling enables milling, drilling and tapping operations
FANUC Manual Guide i conversational programming
Well-maintained machine in good operating condition
