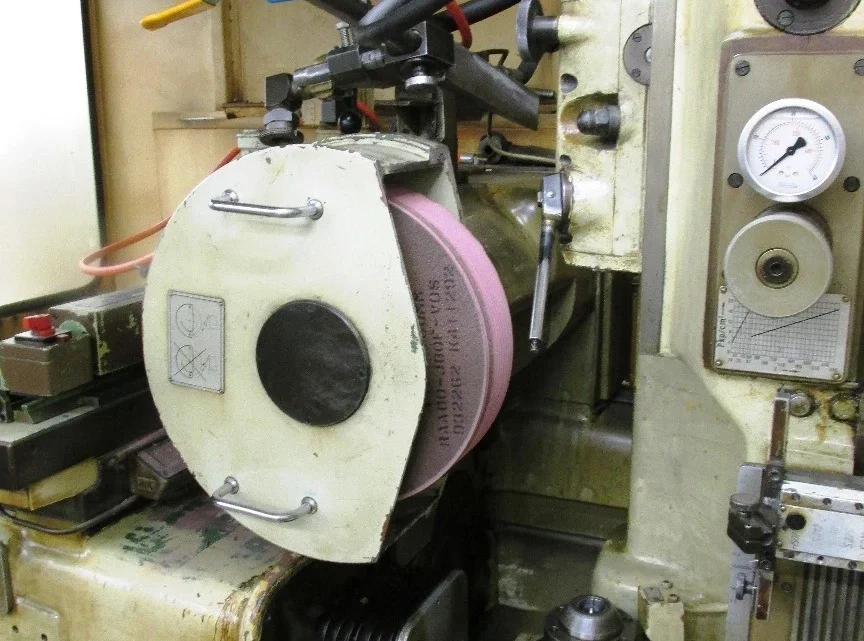

CSEPEL FKP 326-10 CNC Automatic Precision Spur/Helical Gear Grinding Machine – Year 1988 For Sale
| Machine Description | |
|---|---|
| Suitable for the precision finish grinding of spur and helical gears up to 12.6″ diameter, including root radius, modified involutes, and crowned leads, using a continuous grinding (generating) process with ribbed (worm-type) vitrified grinding wheels. | |
| Technical Specifications | |
| Maximum Tip Diameter | 12.6″ |
| Maximum Gear Width | 5.9″ |
| Minimum Root Diameter | 3.9″ |
| Number of Teeth Ground | 10 – 260 |
| Maximum Clamping Length | 16.5″ |
| Module Range (Single Start Dresser) | 0.5 – 6 |
| Module Range (Double Start Dresser) | 0.5 – 3 |
| Diametral Pitch Range (Single Start Dresser) | 4 – 48 |
| Diametral Pitch Range (Double Start Dresser) | 8 – 48 |
| Maximum Helix Angle | ±45 Degrees |
| Maximum Workpiece Weight (0° Helix) | 80 kg |
| Maximum Workpiece Weight (45° Helix) | 45 kg |
| Work Feed Rate (Infinitely Variable) | 0.012″ – 0.0118″ / rev |
| Automatic Infeed of Grinding Wheel | 0.00039″ – 0.0019″ per stroke |
| Grinding Wheel Diameter | 12.6″ – 17.7″ |
| Grinding Wheel Widths | 2.48″, 3.3″, 4.1″ |
| Grinding Wheel Bore Diameter | 7.99″ |
| Tailstock Travel | 7.06″ |
| Stroke of Work Slide | 6.7″ |
| Grinding Wheel Speed (Grinding) | 1500 RPM |
| Grinding Wheel Speed (Profiling) | 60 RPM |
| Power Consumption | 26 kW |
| Overall Dimensions (Approx.) | 122″ × 91″ × 95″ (H) |
| Machine Weight (Estimated) | 20,570 lbs |
| Equipped With | |
| FAESSLER Diamond Disc Wheel Dresser, Type DSA | |
| Programmable Automatic Grinding Cycles | |
| Coolant System | |
| Automatic Lubrication System | |
| Assorted Grinding Wheel Flanges with Washers | |
| Cylindrical Workpiece Mandrel with Spacer Rings and Clamping Nut | |
| Wheel Balancing Arbor | |
| Set of Precision Change Gears | |
| Operator Work Light | |
| Height Setting Gauge | |
