CNC Specialist’s Guide: Selecting the Right Used, Surplus, Secondhand, Pre-Owned Zoller Venturion 450 Tool Presetter made in Germany
Below is a detailed, CNC Specialist’s Guide to selecting a pre-owned, surplus or second-hand ZOLLER Venturion 450 tool presetter (Made in Germany), including key technical details and practical buying advice.
Overview — ZOLLER Venturion 450 Tool Presetter

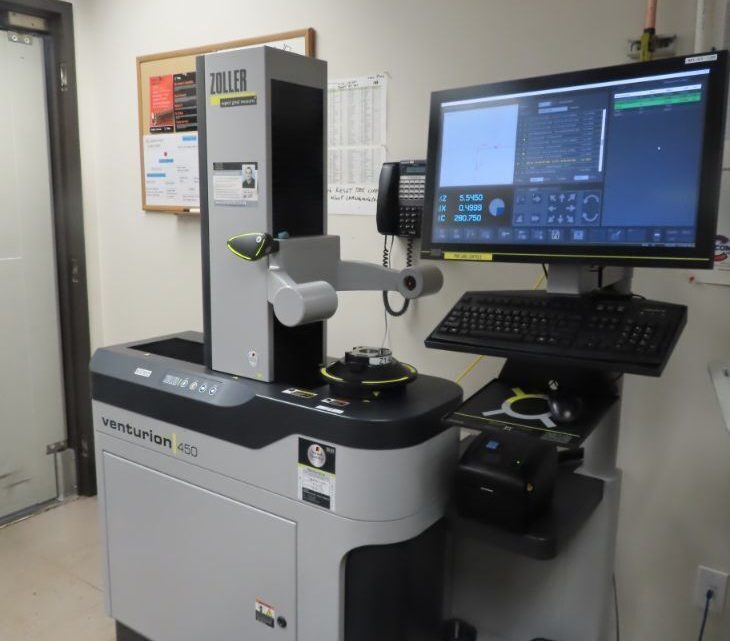

The ZOLLER Venturion 450 is a premium tool presetting and measuring machine manufactured by E. Zoller GmbH & Co. KG in Germany (Pleidelsheim). It is designed for professional CNC shops and precision environments where offline tool measurement dramatically reduces setup time and increases part accuracy.
Tool presetters like the Venturion are core devices in CNC operations because they allow tools to be precisely measured and managed outside the machining center, speeding up changeovers and reducing machine idle time.
Core Technical Features & Specifications
Measurement & Mechanical Range
- Max tool length (Z direction): up to 450 mm (varies by model/fixings).
- Max traverse (X direction): typically 200 mm with standard configuration.
- Max tool diameter: approx. 420–450 mm depending on spindle and options.
- Tool clamping: power-operated “ace” spindle with quick-change adapter system; high precision into µm range.
Control & Software
- Integrated IPC controller with a large TFT monitor for data entry and image guidance.
- Runs proprietary ZOLLER software (pilot 3.0 or newer pilot 4.0) for image processing, automatic shape recognition, and data management.
- Stores large number of tool configurations and supports tool management systems.
Optical & Precision Systems
- Industrial-grade camera optics with autofocus and crosshair measurement features.
- Automatic zero-point monitoring and cutting-edge detection.
Workstation & Ergonomics
- Adjustable workstation with separate “cockpit” control unit and ergonomically positioned controls.
- Stable base housing electronics, pneumatics and accessible service areas.
Machine Utilities & Connections
- Typical electrical supply: 230 V / 50 Hz (varies by country/voltage options).
- Pneumatic connection usually 4–6 bar for clamping and axis control (in many used configurations).
Tool Compatibility & Options
- Adapters available for most CNC tool holding systems: SK, HSK, Capto, VDI, KM, etc.
- Optional enhancements such as RFID tool tagging, automatic scanning, inspection modules, vacuum or specialized spindles are often available.
Practical Buying Considerations for Used / Pre-Owned Units
When selecting a used ZOLLER Venturion 450, here are key areas to assess:
1. Measurement Range vs Application Needs
Match the machine’s maximum Z and X travel, and diameter clearance to the tools you use. Larger long tools or cutters may require extended Z travel.
2. Condition & Calibration History
Tool presetters depend on precision optics, slides, and measurement electronics. Ask for calibration records and check for wear on guides, sensors, and optics.
3. Software Version & Interfaces
Units with newer pilot 4.0 offer better workflows, connectivity, and future support. Older machines with pilot 3.0 may still work but may require upgrades for advanced tool management.
4. Included Tool Management / Data Transfer Features
Automatic data transfer options (RFID, network, export to CNC controls) can save shopfloor setup time. Confirm what’s included with the used machine.
5. Hardware & Mechanical Wear
Check pneumatic components (Bosch/Festo elements), clamping spindles, and guide integrity. Pneumatic wear often impacts repeatability.
6. Service, Availability of Parts & Support
ZOLLER has global service networks, but parts availability for older units should be checked before purchase.
7. Buyer Source
Prefer verified industrial sellers, auctions, or dealers who provide inspection reports and return terms. Listings often show units manufactured as early as 2011–2017.
Why This Machine Matters in CNC Shops
- Reducing machine downtime: offline presetting allows CNC machines to run spindles making chips while tools are prepared separately.
- Improved precision: minimizes manual input errors and provides repeatable, high-precision tool data.
- Tool data management: integration with tool management software boosts traceability and efficiency.
Typical Used Venturion 450 Technical Snapshot
| Feature | Typical Specification |
|---|---|
| Machine Type | Tool Presetting & Measuring |
| Manufacturer | E. Zoller GmbH & Co. KG (Germany) |
| Control | CNC with Industrial PC |
| Software | ZOLLER pilot 3.0 / 4.0 |
| Z Range | ~450 mm |
| X Range | ~200 mm |
| Max Diameter | ~420–450 mm |
| Clamping | Power-operated ace spindle |
| Power | ~230 V / 50–60 Hz |
| Pneumatics | ~4–6 bar |
| Options | RFID, autofocus, inspection camera |
(This reflects typical configurations; actual ranges vary by unit and optional equipment.)
Final Tips for CNC Buyers
- Always inspect measurement repeatability traces (ideally with a test tool).
- Verify software version and upgrade options before finalizing.
- Ask sellers about included adapters and tool libraries — ready-to-use adapters save setup costs.
- Ensure spare parts availability for older Venturion models to avoid long downtime.
