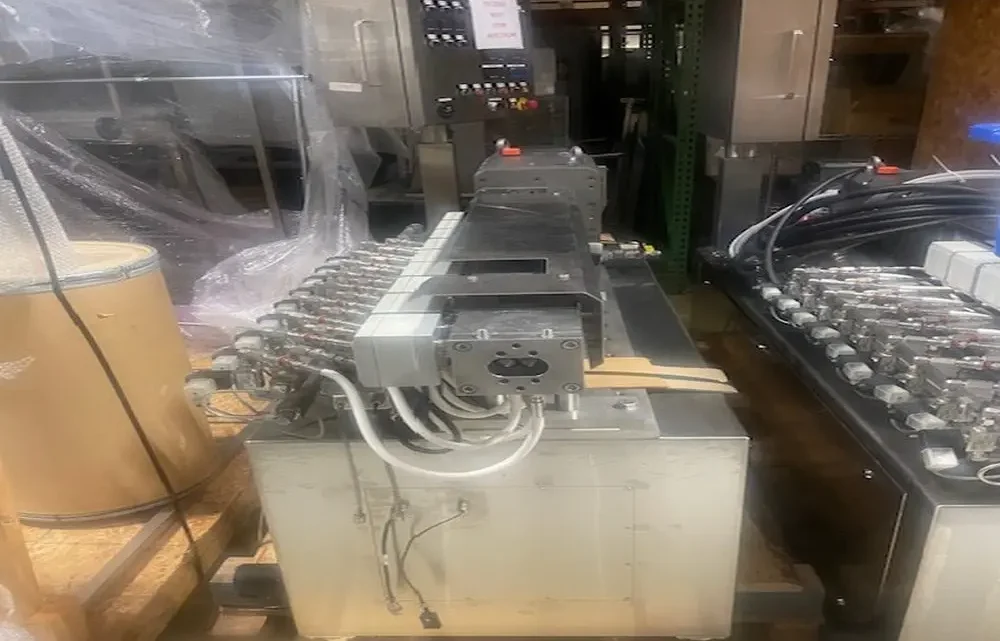

Buy Like a Pro: What to Look For Before Acquiring a Used, Secondhand, Pre-Owned, Surplus Leistritz ZSE MAXX 27 Co-Rotating Twin Screw extruder – Year 2022 made in Germany
Here’s a complete, professional buyer’s guide that combines what to look for before acquiring a used / second-hand / pre-owned / surplus Leistritz ZSE MAXX 27 co-rotating twin-screw extruder (2022, Germany) with key machine technical details — tailored for experienced industrial buyers and technical decision-makers.
Buy Like a Pro — Leistritz ZSE MAXX 27 Twin Screw Extruder (2022)
This guide is structured so you can evaluate the machine technically, operationally, and commercially before committing to purchase.
PART 1 — CORE MACHINE TECHNICAL DETAILS
The Leistritz ZSE MAXX series is known for combining high torque and high throughput in a compact co-rotating twin-screw platform. The ZSE 27 model is among the most popular sizes for small-to-medium production and compounding.
1.1 Twin-Screw Design & Geometry
- Twin co-rotating, intermeshing screws — optimized for mixing and compounding.
- Screw diameter: ~27 mm (28.3 mm OD per published data).
- OD/ID ratio (Da/Di): ≈ 1.66 — high free volume enabling higher throughput.
- Length/diameter ratio (L/D): typically ≈ 40–48:1 depending on build/configuration.
The modular screw/barrel system allows flexibility for specific tasks (dispersion, compounding, devolatilization).
1.2 Performance Specs
- Screw speed: up to ~1200 rpm (max) depending on drive option.
- Specific torque: up to ≈ 12.5 – 15 Nm/cm³ — supports demanding compounding tasks.
- Typical throughput range: ~100 – 350 kg/h depending on material, screw build, degassing, and downstream equipment — typical for ZSE 27.
Note: Actual output varies widely by polymer type, residence time, screw design, and downstream accessories.
1.3 Drive & Cooling
- High-torque, water-cooled AC main drive — robust transmission for high shear and high torque compounding.
- Gearbox with optimized lubrication and high power density — key for reliability in production use.
- Barrel cooling: comprehensive liquid cooling channels for stable temperature control at high throughput.
1.4 Materials & Applications
This series is designed for processing a wide range of materials, including:
- Commodity polymers (PE, PP, PS)
- Engineering polymers (PA, PET)
- Masterbatches and additives
- Technical compounds and speciality blends
The co-rotating twin screw design promotes dispersion, devolatilization, and homogeneous mixing across materials.
1.5 Auxiliary System Compatibility
ZSE 27 extruders are usually integrated with:
- Vacuum/degassing ports
- Side feeders and dosing systems
- Feeders (gravimetric/volumetric)
- Downstream pelletizers (strand or underwater)
- Gear pump / melt pump options
- Chillers, conveyors, and screening systems
These are not always included with used machines and significantly affect both performance and price if missing.
PART 2 — WHAT TO LOOK FOR BEFORE BUYING
2.1 DOCUMENTATION & MACHINE IDENTITY
Before you assess the machine physically:
- Verify serial number and build configuration with the seller and, where possible, directly with Leistritz.
- Request original build sheet / BOM — details every screw element, gearbox, drive, options, and accessories fitted.
- Insist on OEM manuals (electrical, mechanical, parts list) and software backups (PLC/HMI recipes, if applicable).
- Confirm certification / compliance documents (CE or equivalent).
A lack of documentation is a major negotiation disadvantage.
2.2 MECHANICAL & WEAR ITEMS
Screws & Barrels
These are consumables:
- Check screw thread depth and barrel inner diameter wear; significant wear → poor throughput and non-uniform melting.
- Measure directly or ask for wear measurements — do not rely on photos.
Screw elements and barrels vary by material processed. Replaceable elements should be included or priced in.
Gearbox & Bearings
- Listen for unusual noise.
- Check gearbox oil for metal particles — signs of internal wear.
Couplings & Alignment
Misalignment causes vibration and reduced screw life — check physically.
2.3 THERMAL & CONTROL SYSTEMS
- All heater zones should operate and reach setpoints consistently.
- Thermocouples must be calibrated.
- Cooling circuits must be leak-free.
Inconsistent thermal control leads to uneven processing.
2.4 ELECTRICAL & PLC
- Check entire electrical cabinet — proper wiring, no burnt traces.
- PLC/HMI functionality and backups of logic and recipes are essential.
- Safety systems (E-Stop, interlocks, guards) must be present and functional.
Safety and control quality significantly influence commissioning costs.
2.5 OPERATIONAL TESTING
If possible:
- Dry Run (no material):
- Check smooth rotation.
- Listen for abnormal vibration/noise.
- Material Run (best case):
- Observe feed, melt, pressure stability.
- Quality of extrudate.
Seller refusal to perform these is a red flag.
2.6 UTILITIES & SITE COMPATIBILITY
- Confirm power supply (voltage, phase) matches your site.
- Check cooling water requirements and air supply.
- Feeders and dosing systems must match your process needs.
2.7 INCLUDED ACCESSORIES VS PRICE
Used extruder pricing depends heavily on what is included:
✔ Additional screw sets
✔ Degassing/vacuum systems
✔ Feeders, gear pumps
✔ Pelletizer & conveyors
✔ Chiller units
Missing components → deduct from asking price.
PART 3 — VALUE & RISK GUIDE
DEAL BREAKERS
- No build sheet or OEM documentation
- Worn screws/barrels without replacement cost accounted
- Control system missing or corrupt
- Safety systems incomplete
- Seller refuses operational test
PRICE NEGOTIATION
- Deduct for consumables needing replacement
- Account for installation, commissioning, and integration costs
- Balance absence of peripheral equipment vs invoice
LOGISTICS
- Understand dismantling, crating, shipping costs
- Include site reassembly, alignment, PLC integration
SUMMARY CHECKLIST
Before purchase, verify:
- machine identity matched to documentation
- screws/barrels condition
- gearbox/drive health
- thermal system health
- PLC/HMI tested and backed up
- safety compliance
- operational tests done
- utilities compatibility
- peripherals included
- price adjusted for missing items
