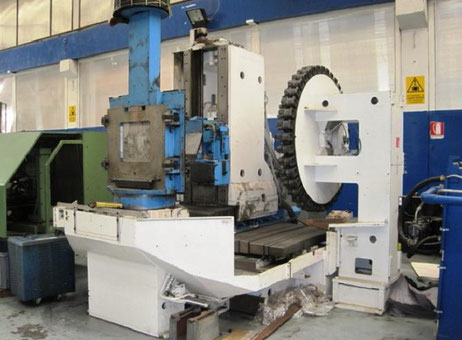

When buying a used Burkhardt Weber MC 60 horizontal machining center (HMC), you’re dealing with a sophisticated, heavy, high-value machine. Many hidden problems can turn what looks like a bargain into an expensive liability. Below is a professional checklist and set of tips to help you avoid costly mistakes.

I first gather what is known about the MC 60 so you can benchmark against expected performance; then go through a detailed inspection & evaluation guide.

---

Known (Benchmark) Specs & Background — Why They Matter

These help you know what “normal” should look like, and detect exaggerations by sellers:

• The MC 60 is a discontinued model, but still a high-end machine in its day.
• Example specifications (typical or from catalogues / listings) include:
    • X (longitudinal) travel ≈ 800 mm
    • Y (cross) travel ≈ 630 mm
    • Z (vertical) travel ≈ 630 mm
    • Spindle taper: SK50 / ISO50 (some sources)
    • Spindle drive power (e.g. ~ 37 kW) in some listings
    • Max spindle speed ~ 4,000 rpm (in some versions)
    • Tool magazine capacity ~ 40 tools in many listings
    • Machine weight, envelope, and footprint tend to be large — heavy cast construction, large footprint (e.g. dimensions in listings ~ 8,100 × 6,970 × 4,800 mm in some cases)
• Because it’s a discontinued model, spare parts (mechanical or electronic) may be harder to find.
• The MC 60 may have had versions with pallet changers or multiple pallets; check whether the specific unit includes that or has had modifications.

Use these as a “yardstick” when assessing claims of travel, speed, power, etc. If a seller claims a much higher spindle rpm or travel, it may be a mislabel or exaggeration.

---

Professional Checklist & Tips for Inspection, Evaluation & Contracting

Below is a structured set of checks, tests, negotiation strategies, and red-flag warning signs specific to a used HMC like the MC 60.

---

1. Preliminaries: Ask & Document Before On-Site Visit

Before you even travel, collect as much data as possible:

• Request as-is photos / videos: from multiple angles, closeups of guideways, spindle nose, the tool magazine, electrical cabinet, etc.
• Ask for machine serial number, build year, and any modification history.
• Ask for as many documentation items as possible: original manuals, wiring/electrical schematics, parts lists, maintenance logs, spindle rebuild records, CNC parameter backups.
• Ask for current control type / version (Siemens, etc.), and whether all software / licenses / backups are included.
• Ask for power-on hours and cutting hours (if such logging exists).
• Ask vendor to run a demo program (under light load) or provide a video of a test part run with data (dimensions, finish).
• If possible, get any previous alignment or calibration reports.
• Confirm transportation & rigging feasibility (weight, lifting points, floor strength, crane / fork access, site constraints).

These pre-checks allow you to spot glaring mismatches or suspicious claims before traveling.

---

2. Structural / Mechanical Integrity Checks

These are often the most expensive things to repair if defective, so inspect carefully.

a) Base, bed, column, structure

• Check for cracks, repairs, welds in the base, bed, column, ribbing or castings. Any signs of structural repair are red flags.
• Use a long straightedge or surface plate to check for twist, warp, deflection in table surfaces, guide mounting surfaces, and column alignment.
• Examine slideways or linear guides or box ways (depending on the design) for signs of wear, scoring, pitting, corrosion or previous re-grinding.
• Look for uneven wear patterns, which may indicate improper load distribution or past shock events.

b) Guideways, rails, gibs, ways

• Check that all guideways are lubricated and not dry or starved.
• Test the smoothness of each axis: manually (if possible) or at slow feed, feel for binding, scratching, or abrupt jumps.
• Look for inconsistencies in movement (i.e. zones of stick/slip).
• Examine adjustment features (gibs, shims, preload mechanisms) for condition, play, looseness, and wear.

c) Lead screws / ball screws / drive screws

• Check for backlash on each axis by reversing direction under light load and measuring shift with dial indicator.
• Feel for “play,” slop, or nonlinearity in motion.
• Check nuts for wear or leakage, coupling alignment, and mounting integrity.
• If there are any covers or guards, inspect the screw surfaces for scoring, damage, or debris.

d) Spindle, bearings & nose interface

• Measure radial and axial runout of the spindle (e.g. with a test bar and indicator).
• Listen for bearing noise when spinning the spindle (unloaded) at different speeds.
• Monitor the temperature of the spindle after a run; overheating is a warning sign.
• Inspect the spindle nose, taper, keyways, D-cuts, and retention mechanism/set screws.
• Check for proper alignment and rigid mounting of spindle.
• If the spindle has been reworked, ask for documentation.

e) Tool magazine / changing system

• If there’s a tool magazine or carousel, test tool indexing, change speed, accuracy, and repeatability.
• Look for mechanical looseness, vibration, or misalignment in the magazine.
• Inspect the magazine carousel teeth, guide surfaces, tool pockets for wear.
• Check the mechanism that holds or clamps the tool in position.
• If there is a pallet changer or shuttle, test its motion, clamping, repeatability, alignment.

f) Coolant, chip handling, hydraulics & pneumatics

• Examine the coolant system: pump(s), piping, filters, sump, cleanliness, signs of contamination or sludge.
• Inspect hydraulic systems (if used for clamping, tooling, etc.): look for leaks, pressure stability, valve health.
• Check the lubrication (central lubrication, automatic lube) systems: are lubrication lines intact, are all slide surfaces properly receiving lubricant?
• Evaluate the chip conveyor and chip removal system: operation, capacity, wear, drive mechanisms.

---

3. Electrical, Control & CNC Systems

Even if the mechanicals are sound, poor or obsolete electronics can ruin the deal.

• Power-on test: power up the machine carefully, check for proper voltages, absence of tripped circuits, burnt wiring, smells of overheating.
• Inspect wiring harnesses, cable chains, connectors: insulation condition, cracks, brittle wires, broken connectors, signs of previous repairs or modifications.
• Fire up the CNC control; check whether booting, program load, and basic navigation work.
• Test each axis (X, Y, Z) under control: move in all directions, speed up, slow down, reverse; detect stiction, backlash, overshoot, or stalling.
• Check servo drives, amplifiers, power modules, feedback devices (encoders, resolvers).
• Inspect HMI (operator panel): buttons, displays, touchscreens, emergency stops, and that all functions respond.
• Confirm that all software, licenses, backups, custom macros are included in the sale and are functional.
• If the control system is obsolete or discontinued by the manufacturer, verify whether spare boards/modules can be sourced or whether retrofit is feasible.

---

4. Functional / Acceptance Testing Under Load

A machine that “runs” at idle may still fail under real cutting loads.

• Bring a representative test component and tooling to run a real cutting test (milling, boring, etc.), as similar as possible to your actual workload.
• Run full-stroke rapid moves in each axis (with load) and check for irregularities or stalling.
• Perform repeatability / return-to-zero tests: e.g. move away, come back to reference point, check error with indicator.
• Machine a test part, then measure key geometric tolerances: flatness, parallelism, cylindricity, bore tolerances, surface finish, positional accuracy.
• Monitor temperature changes and dimensional drift while running (thermal stability).
• Activate ancillary systems (coolant, chip conveyor, hydraulics, tool change, pallet change) and see if they perform reliably under production conditions.
• Run multistep sequences (tool changes, speed/feeds transitions) to evaluate dynamic behavior.

---

5. Alignment, Calibration & Geometry Checks

Even a well-maintained machine can lose alignment over time or during relocation.

• Ask for or perform laser alignment or ballbar calibration reports, if available.
• Using indicators, check squareness, parallelism, alignment of axes, perpendicularity of spindle to movement axes.
• Verify that backlash compensation or interpolation within the control is within acceptable limits.
• Check that pallet change or tool indexing repeatability is within spec.
• Test whether geometric tolerances are within what the control / compensation scheme can correct.
• Be especially wary if base or structure had been moved, modified or repaired.

---

6. Spare Parts, Support, Upgrade Path

One of the most overlooked risks in used machines is the future cost when something fails.

• Check the current availability of critical spares: servo motors, power modules, control boards, feedback devices, spindle bearings, hydraulics parts.
• Ask whether any parts are already out-of-stock or whether used or refurbished substitutes exist.
• Determine whether there is local or regional support (service providers familiar with Burkhardt Weber machines) near your location.
• Confirm that any special tooling, fixtures, or adapters that the machine uses are still obtainable.
• If future control retrofitting is likely (e.g. if the current control is obsolete), check whether the mechanical structure and drives are amenable to modernization.
• Get an inventory of spare consumables (filters, belts, seals, hydraulic oils) that the machine currently has.

---

7. Negotiation & Contractual Safeguards

Use what you learn from inspections and tests to negotiate and protect yourself legally.

• Insist on conditional acceptance: final payment only after the machine passes a full acceptance test (which you define).
• Define quantitative acceptance criteria (maximum allowed runout, repeatability error, backlash, surface finish, cycle time).
• Ask for a short-term warranty (30–90 days) on major subsystems (spindle, drives, control) if the seller is willing.
• Require that all promised documentation, software backups, and drawings be delivered with the machine.
• Clarify who bears the cost of transport, rigging, leveling, alignment, re-grouting, site modifications.
• Insist that any defects found during a limited “burn-in / commissioning” period must be remedied by seller.
• Review whether the machine is offered “as-is, where-is” or with some guarantee, and negotiate accordingly.

---

8. Transport, Installation & Commissioning

Moving a large HMC can itself introduce damage or misalignment; plan carefully.

• Confirm accurate machine weight, center of gravity, lifting points, footprint, and clearance for disassembly or transport.
• Use proper rigging, shipping fixtures, and securement to prevent stress or damage in transit.
• After installation, re-level, re-grout or anchor machine appropriately. Confirm foundation suitability, vibration damping, ground stiffness.
• Allow a “break-in / burn-in” period under production loads for final alignment and calibration.
• Perform final acceptance tests after installation under operational conditions, before declaring the machine accepted.

---

9. Red Flags & Deal-Breaker Signs

If you see any of these, either back away or demand steep price reductions / assurances:

• Seller refuses full inspection, functional testing, or access to internal cabinets.
• Major structural repairs or welds in the base, bed, or column with no documentation.
• Spindle with unknown or bad history, bearing noise, or excessive runout.
• Excessive backlash in axes beyond control compensation ability.
• Control hardware or software that is obsolete or cannot be serviced.
• Poor wiring harness, brittle insulation, many cable splices, signs of fire or overheating.
• Missing documentation, missing software backups, missing wiring diagrams.
• No spare parts available regionally or globally for critical systems.
• The cost to repair or re-align wear (slides, guides, screw replacement) is comparable to buying a better machine.
• The machine has been subject to harsh or abusive service (e.g. heavy interrupted cuts, coolant contamination, improper operator practices) with no maintenance record.
