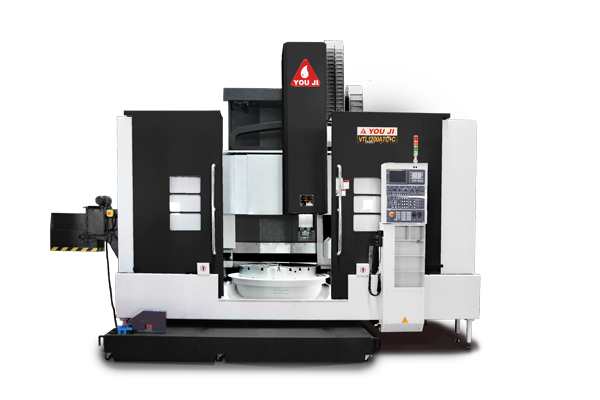

Available now : YOU JI YV-1200 ATC CNC Vertical Lathe Maximum Swing Diameter Ø1600 mm – Year 2022

General Information
Manufacturer	YOU JI
Model	YV-1200 ATC
Machine Type	CNC Vertical Turning Lathe (VTL)
Year	2022
Control Unit	FANUC CNC Control
Operating Hours	8,000 Hours
Condition	Well Maintained – All Scheduled Maintenance Performed On Time
Accuracy	Excellent Machining Accuracy

Specification	Metric	Imperial
Table Diameter (Chuck Diameter)	Ø1,250 mm	Ø49.21 in
Maximum Swing Diameter	Ø1,600 mm	Ø62.99 in
Maximum Cutting Diameter	Ø1,350 mm	Ø53.15 in
Maximum Cutting Height	1,200 mm	47.24 in
Maximum Table Load	5,000 kg	11,023 lbs
Horizontal Travel of Rail Head (X-Axis)	1,375 mm	54.13 in
Vertical Travel of Ram (Z-Axis)	900 mm	35.43 in
Vertical Travel of Crossrail	800 mm	31.50 in
Table Speed (Low Range)	2 – 108 rpm	2 – 108 rpm
Table Speed (High Range)	108 – 350 rpm	108 – 350 rpm
Maximum Table Torque	12,500 Nm	9,219 ft-lb
Rapid Traverse X-Axis	12 m/min	472 ipm
Rapid Traverse Z-Axis	10 m/min	394 ipm
Cutting Feed Rate	0.001 – 500 mm/rev	0.00004 – 19.69 in/rev
ATC Magazine Capacity	12 Tools	12 Tools
Tool Taper	BT-50	BT-50
Maximum Tool Weight	50 kg	110 lbs
Maximum ATC Loading Capacity	360 kg	794 lbs
Tool Change Time	30 sec	30 sec
Turret Capacity	5 Stations	5 Stations
Square Tool Holder Size	32 x 32 mm	1.26 x 1.26 in
Spindle Drive Motor	30 / 37 kW	40 / 50 HP
X-Axis Servo Motor	4.5 kW	6 HP
Z-Axis Servo Motor	4.5 kW	6 HP
Hydraulic Tank Capacity	65 L	17.17 gal
Coolant Tank Capacity	300 L	79.25 gal
Lubrication Tank Capacity	4 L	1.06 gal
Power Capacity	80 kVA	80 kVA
Machine Dimensions (L × W)	4,360 × 3,285 mm	171.65 × 129.33 in
Machine Weight	20,000 kg	44,092 lbs
Linear Axis Positioning Accuracy	±0.005 mm	±0.0002 in

Model	Table Diameter	Max Swing	Max Cutting Diameter	Max Cutting Height	Max Load	ATC	Machine Weight
YV-1000ATC	Ø1000 mm	Ø1150 mm	Ø1100 mm	800 mm	4,000 kg	12 Tools	16,000 kg
YV-1200A	Ø1250 mm	Ø1600 mm	Ø1350 mm	1200 mm	5,000 kg	No	19,000 kg
YV-1200ATC	Ø1250 mm	Ø1600 mm	Ø1350 mm	1200 mm	5,000 kg	12 Tools	20,000 kg
YV-1200ATC+C	Ø1250 mm	Ø1600 mm	Ø1350 mm	1200 mm	5,000 kg	12 Tools	20,500 kg
YV-1600A	Ø1600 mm	Ø2000 mm	Ø1800 mm	1200 mm	8,000 kg	No	22,000 kg
YV-1600ATC	Ø1600 mm	Ø2000 mm	Ø1800 mm	1200 mm	8,000 kg	12 Tools	23,000 kg
YV-1600ATC+C	Ø1600 mm	Ø2000 mm	Ø1800 mm	1200 mm	8,000 kg	12 Tools	23,500 kg
YV-2000ATC	Ø2000 mm	Ø2500 mm	Ø2300 mm	1600 mm	10,000 kg	12 Tools	37,000 kg
YV-2000ATC+C	Ø2000 mm	Ø2500 mm	Ø2300 mm	1600 mm	10,000 kg	12 Tools	38,000 kg
