General Information
Manufacturer	YOU JI

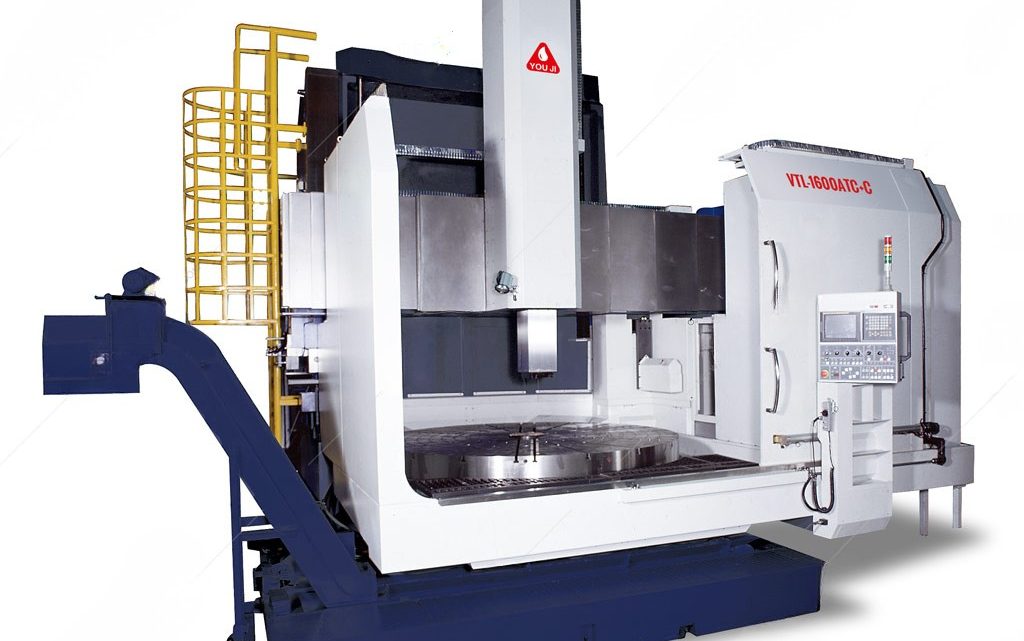

Model	VTL-1600ATC+C (1600ATC-C)
Machine Type	CNC Vertical Turning Lathe with C-Axis, Milling & Drilling
Year of Manufacture	2008
Condition	Ready for Operation (Used)
Capacity
Maximum Turning Diameter	1,800 mm (70.87″)
Maximum Turning Height	1,200 mm (47.24″)
Chuck / Table Diameter	1,600 mm (62.99″)
Maximum Table Load	8,000 kg (17,637 lbs)
Maximum Workpiece Weight	8,000 kg (17,637 lbs)
Table & Spindle
Maximum Chuck Speed	250 RPM
C-Axis	Integrated C-Axis
Control System
CNC Control	Fanuc 18i-TB
Tooling
Automatic Tool Changer	16 Positions
Machine Weight
Machine Weight	25,000 kg (55,116 lbs)
Equipment
C-Axis Table Turning Capability Milling Capability Drilling Capability Fanuc 18i-TB CNC Control 16-Position Automatic Tool Changer 1,600 mm Chuck / Table 250 RPM Table Speed Heavy-Duty Vertical Turning Center Chip Conveyor
Machine Highlights
Heavy-Duty Vertical Turning Center for Large Components Integrated C-Axis for Multi-Task Machining Turning, Milling & Drilling in a Single Setup 8,000 kg Table Load Capacity Ideal for Large Rings, Flanges, Gear Components & Heavy Industrial Parts
