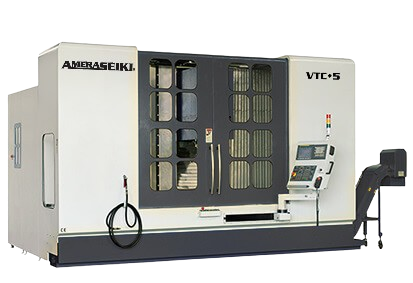

Available now : used Amera Seiki VTC-5 CNC Travelling Column Machining Center 2.2 Meters – Year 2022

Category	Specification	Unit	Amera Seiki VTC-5	Amera Seiki VTC-7
Travel	X-Axis Travel	mm (in)	2200 (86.61″)	3200 (125.98″)
	Y-Axis Travel	mm (in)	620 (24.41″)	720 (28.35″)
	Z-Axis Travel	mm (in)	620 (24.41″)	620 (24.41″)
	Spindle Nose to Table Surface	mm (in)	120 – 740 (4.72″ – 29.13″)	120 – 740 (4.72″ – 29.13″)
	Spindle Center to Column Surface	mm (in)	690 (27.17″)	790 (31.10″)
Table	Table Size	mm (in)	2500 × 600 (98.43″ × 23.62″)	3500 × 600 (137.80″ × 23.62″)
	T-Slots (Width / Number / Pitch)	mm	18 / 5 / 125	18 / 5 / 125
	Table Height from Floor	mm (in)	830 (32.68″)	830 (32.68″)
	Maximum Table Load	kg (lbs)	1800 (3,968 lbs)	2500 (5,512 lbs)
Headstock	Spindle Type	–	BT40 / CAT40	BT40 / CAT40
Headstock	Spindle Speed	RPM	8,000 (Optional 10,000)	8,000 (Optional 10,000)
Feed Rate	Rapid Feed (X/Y/Z)	mm/min (IPM)	32,000 (1,260 IPM)	32,000 (1,260 IPM)
Feed Rate	Cutting Feed (X/Y/Z)	mm/min (IPM)	1 – 10,000 (0.04 – 394 IPM)	1 – 10,000 (0.04 – 394 IPM)
Power	Spindle Motor (Continuous / 30 Min.)	kW (HP)	11 / 15 (14.7 / 20.1 HP)	11 / 15 (14.7 / 20.1 HP)
	AC Servo Motor (X/Y/Z)	kW (HP)	3.5 / 2.0 / 2.0 (4.7 / 2.7 / 2.7 HP)	3.5 / 2.0 / 2.0 (4.7 / 2.7 / 2.7 HP)
	Coolant System	W	580	580
	Lubrication System	W	25	25
	Spindle Chiller System	W	850 (Required over 8,000 RPM)	850 (Required over 8,000 RPM)
ATC	Tool Magazine Capacity	pcs	24 / 32 / 40	24 / 32 / 40
	Maximum Tool Diameter	mm (in)	70 (2.76″) / 127 (5.00″) with adjacent pocket empty	70 (2.76″) / 127 (5.00″) with adjacent pocket empty
	Maximum Tool Length	mm (in)	300 (11.81″)	300 (11.81″)
	Maximum Tool Weight	kg (lbs)	7 (15.4 lbs)	7 (15.4 lbs)
Accuracy	Positioning Accuracy	mm	±0.005	±0.005
Accuracy	Repeatability	mm	±0.005	±0.005
Amera Seiki VTC-5 CNC Travelling Column Machining Center 2.2 Meters – Year 2022	Machine Weight	kg (lbs)	14,200 (31,306 lbs)	23,780 (52,425 lbs)
	Machine Dimensions (L × W × H)	mm (in)	4068 × 5810 × 3000 (160.16″ × 228.74″ × 118.11″)	4168 × 6810 × 3000 (164.09″ × 268.11″ × 118.11″)
	Required Air Pressure	kg/cm² (psi)	5 (71.1 psi)	5 (71.1 psi)
	CNC Controller	–	Fanuc 0i-MB	Fanuc 0i-MB
Standard Equipment	Full Enclosure Guard	Standard on All Models
	Rigid Tapping	Standard on All Models
	Remote Handwheel	Standard on All Models
	Halogen Work Light	Standard on All Models
	Beacon Light	Standard on All Models
	Automatic Power Off	Standard on All Models
	Automatic Lubrication System	Standard on All Models
	Spindle Air Purge System	Standard on All Models
	Spindle Air Blow System	Standard on All Models
	Coolant System & Electrical Cabinet Heat Exchanger	Standard on All Models
Optional Accessories	Controller Upgrade	Fanuc 18i-MB, 21i-MB or Heidenhain
	10,000 / 12,000 RPM Spindle with Chiller	Available on All Models
	Coolant Through Spindle (CTTS)	Available on All Models
	ZF-2 Gear Head with Oil Chiller	Available on All Models
	Chip Flushing System	Available on All Models
	Chain Type Chip Conveyor	Available on All Models
4th Axis Interface	Available on All Models

Amera Seiki VTC-5 CNC Travelling Column Machining Center 2.2 Meters – Year 2022
Manufacturer	Amera Seiki
Model	VTC-5
Machine Type	CNC Travelling Column Vertical Machining Center
Year	2022
Condition	Used
Control System
CNC Control	Fanuc 0i-MB
Axis Travels
X-Axis Travel	2,200 mm (86.60″)
Y-Axis Travel	620 mm (24.40″)
Z-Axis Travel	620 mm (24.40″)
Spindle Nose to Table	120 – 740 mm (4.73″ – 29.16″)
Table
Table Size	2,500 × 600 mm (98.40″ × 23.60″)
Maximum Table Load	1,800 kg (3,960 lbs)
Spindle
Spindle Speed	10,000 RPM
Spindle Motor Power	15 kW (20 HP)
Spindle Taper	CAT 40
Feed Rates
Rapid Traverse (X / Y / Z)	32 m/min (1,260 IPM)
Tool Magazine
Automatic Tool Changer	32-Station Side-Mounted ATC
Machine Dimensions
Overall Length	4,089 mm (161″)
Overall Width	5,817 mm (229″)
Overall Height	3,023 mm (119″)
Machine Weight	14,288 kg (31,500 lbs)
Standard Equipment
Travelling Column Design Fanuc 0i-MB CNC Control 10,000 RPM CAT 40 Spindle 32-Station Side-Mounted Automatic Tool Changer Rigid Tapping Remote Jog Handle Auger Style Chip Conveyor Flood Coolant System Coolant Tank & Pump Spindle Air Blow Spindle Chiller Unit Heat Exchanger for Electrical Cabinet Work Light USB Port Interface RS-232 Communication Port
Machine Highlights
Heavy-Duty Travelling Column Construction Large 2.5 m Table for Long Workpieces 1,800 kg (3,960 lbs) Table Load Capacity High-Speed 10,000 RPM Spindle Fast 32 m/min (1,260 IPM) Rapid Traverse Excellent Stability for Precision Machining Ideal for Large Mold, Die & General Machining Applications
