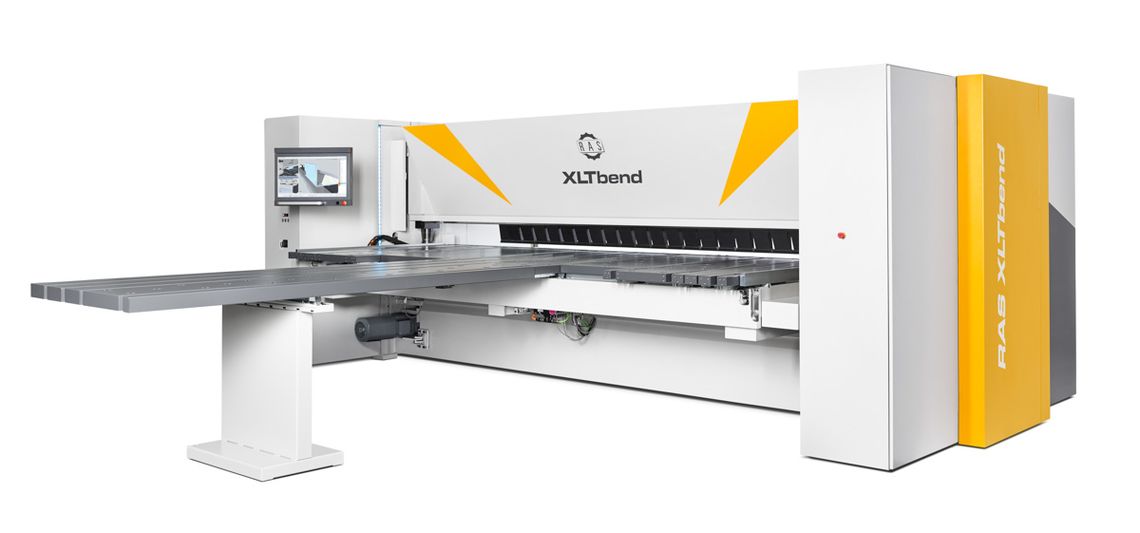

Available now : used RAS Reinhardt Maschinenbau XLTbend RAS 71.30 UpDown CNC Cutting Bending Forming Machine – Year 2023 made in Germany
| Specification | Metric | Imperial |
|---|---|---|
| Manufacturer | RAS Reinhardt Maschinenbau GmbH | RAS Reinhardt Maschinenbau GmbH |
| Model | XLTbend 71.30 UpDown | XLTbend 71.30 UpDown |
| Year of Manufacture | 2023 | 2023 |
| Condition | Very Good | Very Good |
| Control System | RAS XLTbend CNC Control | RAS XLTbend CNC Control |
| Automation Level | Automatic | Automatic |
| Number of Axes | 4 Axes | 4 Axes |
| Working Length | 3,200 mm | 125.98 in |
| Working Width | 3,200 mm | 125.98 in |
| Throat Depth | 1,000 mm | 39.37 in |
| Lower Beam Adjustment | 650 mm | 25.59 in |
| Folding Beam Adjustment | 150 mm | 5.91 in |
| Beam Opening Height | 150 – 650 mm | 5.91 – 25.59 in |
| Maximum Bending Angle | 180° | 180° |
| Minimum Bending Radius | 1 mm | 0.039 in |
| Maximum Bending Radius | 25 mm | 0.984 in |
| Operating Speed | 120 mm/sec | 4.72 in/sec |
| Reverse Speed | 200 mm/sec | 7.87 in/sec |
| Maximum Sheet Thickness (General) | 4 mm | 0.157 in |
| Maximum Mild Steel Thickness | 3 mm | 0.118 in |
| Maximum Stainless Steel Thickness | 2 mm | 0.079 in |
| Maximum Aluminum Thickness | 4 mm | 0.157 in |
| Back Gauge Travel (R-Axis) | 150 mm | 5.91 in |
| Back Gauge Speed (R-Axis) | 200 mm/sec | 7.87 in/sec |
| Back Gauge Travel (Z-Axis) | 3,250 mm | 127.95 in |
| Crowning System | CNC-Controlled | CNC-Controlled |
| Drive System | Servo Drives | Servo Drives |
| Input Voltage | 400 V | 400 V |
| Input Current | 32 A | 32 A |
| Input Frequency | 50 Hz | 50 Hz |
| Power Supply | 3-Phase | 3-Phase |
| Machine Weight | 11,500 kg | 25,353 lbs |
| Machine Length | 5,600 mm | 220.47 in |
| Machine Width | 3,360 mm | 132.28 in |
| Machine Height | 2,200 mm | 86.61 in |
| Monitors | 2 × 24″ Touchscreen Displays | 2 × 24″ Touchscreen Displays |
| File Import Capability | STEP, DXF, GEO | STEP, DXF, GEO |
| Programming | Automatic Bend Program Generation | Automatic Bend Program Generation |
| Simulation | 3D Bending Process Simulation | 3D Bending Process Simulation |
| Positioning System | Suction Cup Positioning System | Suction Cup Positioning System |
| Positioning Table | T-Type Positioning Table | T-Type Positioning Table |
| Control Cabinet | Air-Conditioned | Air-Conditioned |
| Safety Features | CE Marking, Emergency Stop, Diagnostics System | CE Marking, Emergency Stop, Diagnostics System |
| Technology | UpDown Bending Technology & Beam-in-Beam System | UpDown Bending Technology & Beam-in-Beam System |
Key Features
- High-performance RAS XLTbend 71.30 UpDown CNC folding machine manufactured in Germany.
- UpDown technology enables upward and downward bending without rotating the workpiece.
- Beam-in-Beam technology ensures exceptional bending accuracy.
- Automatic generation of bending programs with 3D visualization and simulation.
- Suitable for processing steel, stainless steel, and aluminum sheets.
- Ideal for manufacturing electrical enclosures, cabinets, HVAC components, cassettes, and complex sheet metal parts.
- Significantly reduces operator involvement and increases production efficiency.
