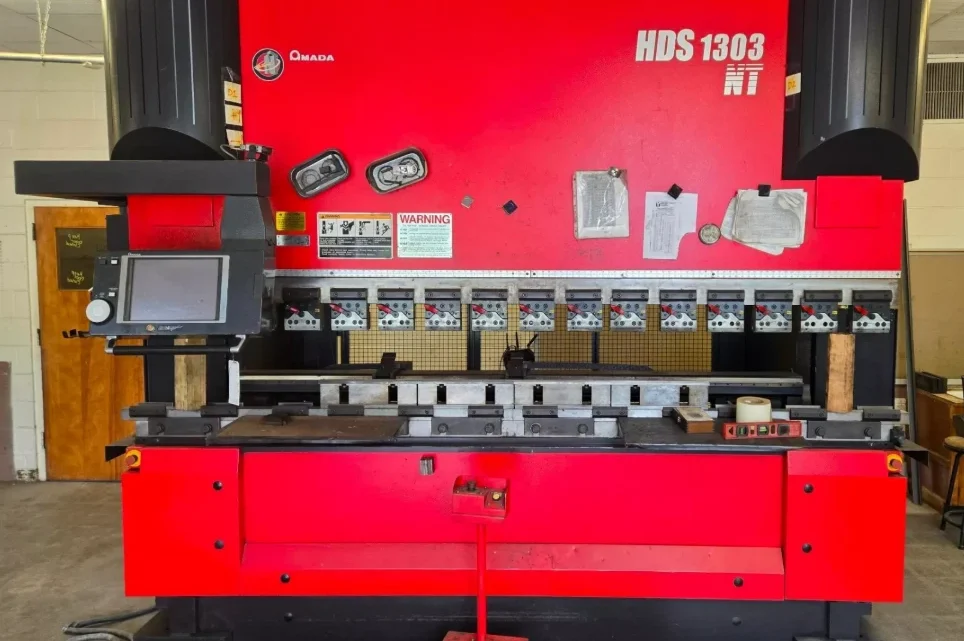

Available now : used Amada HDS-1303NT CNC Hydraulic Press Brake 143 Ton with Back Gauge – Year 2011
| Specification | Metric | Imperial |
|---|---|---|
| Manufacturer | Amada | |
| Model | HDS-1303NT CNC Hydraulic Press Brake | |
| Year | 2011 | |
| Maximum Bending Length | 3,220 mm | 126.77 in |
| Press Force | 130 Metric Tons | 143 US Tons |
| Stroke Length | 200 mm | 7.87 in |
| Approach Speed | 200 mm/sec | 7.87 IPS |
| Bending Speed | 20 mm/sec | 0.79 IPS |
| Return Speed | 200 mm/sec | 7.87 IPS |
| Number of Main Cylinders | 2 | |
| Hydraulic Pump Motor Output | 3.9 + 2.0 kW | 5.2 + 2.7 HP |
| Hydraulic Tank Capacity | 67 Liters | 17.8 Gal |
| Machine Weight | 11,975 kg | 13.2 US Tons |
| Backgauge Repeatability (L Axis) | 0.020 mm | 0.0008 in |
| L Axis Travel | 700 mm | 27.55 in |
| Y Axis Travel | 2,200 mm | 86.6 in |
| Z Axis Travel | 249 mm | 9.8 in |
| L Axis Feed Speed | 29,972 mm/min | 1,180 IPM |
| Y Axis Feed Speed | 59,995 mm/min | 2,362 IPM |
| X Axis Feed Speed | 9,982 mm/min | 393 IPM |
| Minimum Command Unit (Ram) | 0.0025 mm | 0.0001 in |
| Minimum Command Unit (Backgauge) | 0.025 mm | 0.001 in |
| CNC Controller | Amada AMNC-PC | |
| Control Axes | 8 Axes | |
| Control Functions | D1 & D2 (Ram Depth), L1 & L2 (Backgauge), Z Vertical Finger Position, Y1 & Y2 Horizontal Finger Movement, CC Ram Crowning | |
| Input Method | Touch Screen | |
| Display | 381 mm | 15 in Color LCD Touch Screen |
| Program Storage | Limited Only by Network Storage Capacity | |
| Maximum Bends per Program | 99 | |
| Die Library Capacity | 300 Tools | |
| Punch Library Capacity | 300 Tools | |
| Included Equipment |
|
|
